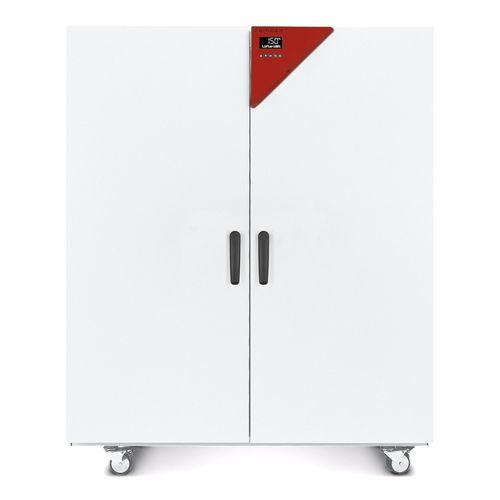

Forced convection laboratory incubator BF 720

on castersfloor-standing2 doors

Product description
The BINDER incubator of the BF Avantgarde.Line series with forced convection is suitable for all gentle incubation applications, particularly under a full load and large batch throughputs. This incubator is extremely homogeneous and has quick recovery times.

Benefits

• Excellent temporal and spatial temperature accuracy
• High process reliability
• 100°C disinfection routine

Important characteristics

• Temperature range: +10°C above ambient temperature to +100°C
• High temperature accuracy thanks to APT.line™ technology
• Forced convection
• Controller with LCD display
• Electromechanical control of the exhaust air flap
• Inner door made of tempered safety glass
• 2 chrome-plated racks
• 4 stable castors, two with brakes, from 720 liters
• Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• USB port for recording data

Data
Article Number: 9010-0321 | 9010-0322
Designation: BF720-230V | BF720UL-240V
Option model: Standard | Standard

Performance Data Temperature
Article Number: 9010-0321 | 9010-0322
Temperature range: +10 °C above ambient temperature to 100 °C | +10 °C above ambient temperature to 100 °C
Temperature uniformity at 37°C: 0.3 ± K | 0.3 ± K
Temperature uniformity at 100°C: 1.6 ± K | 1.6 ± K
Temperature fluctuation at 37°C: 0.1 ± K | 0.1 ± K
Temperature fluctuation at 100°C: 0.2 ± K | 0.2 ± K
Heating up time to 100°C: 45 min | 45 min
Heating up time to 37°C: 15 min | 15 min
Recovery time after door was opened for 30 s at 37°C: 4 min | 4 min

Electrical data
Article Number: 9010-0321 | 9010-0322
Rated Voltage: 230 V | 240 V
Power frequency: 50/60 Hz | 60 Hz
Nominal power: 1,75 kW | 1,85 kW
Phase (Nominal voltage): 1~ | 1~

Dimensions and weights
Article Number: 9010-0321 | 9010-0322
Interior volume: 734 L | 734 L
Net weight of the unit (empty): 166 kg | 166 kg
Load per rack: 45 kg | 45 kg
Permitted load: 315 kg | 315 kg
Wall clearance back: 160 mm | 160 mm
Wall clearance sidewise: 100 mm | 100 mm

Housing dimensions not incl. fittings and connections
Article Number: 9010-0321 | 9010-0322
Width net: 1,165 mm | 1,165 mm
Height net: 1,590 mm | 1,590 mm
Depth net: 870 mm | 870 mm

Internal Dimensions
Article Number: 9010-0321 | 9010-0322
Interior width: 1,000 mm | 1,000 mm
Interior height: 1,300 mm | 1,300 mm
Interior depth: 565 mm | 565 mm
Inner doors: 2 | 2
Unit doors: 2 | 2

Environment-specific data
Article Number: 9010-0321 | 9010-0322
Sound-pressure level: 43 dB(A) | 43 dB(A)
Energy consumption at 100°C: 580 Wh/h | 580 Wh/h
Energy consumption at 37°C: 130 Wh/h | 130 Wh/h

Fixtures
Article Number: 9010-0321 | 9010-0322
Number of shelves (std./max.): 2/16 | 2/16

Options, accessories & services (selection)

• Ethernet interface for Multi Management Software APT-COM™ (8012-0991)
• Door lock (lockable door handle) (8012-1816)
• Inner chamber, reinforced (max. total load 350 kg) (8012-1829)
• Calibration certificate, expanded (temperature) (8012-1111)
• Access port with silicone plug (various sizes and positions, e.g. 8012-1150 top 30 mm)
• Pt 100 temperature sensor (additional flexible Pt 100 interior) (8012-1618)
• Analog output 4-20 mA for temperature values (8012-1622)
• Alarm function for overheating (switchable acoustic alarm) (8012-1634)
• Various maintenance and calibration services, warranty extensions and commissioning options (DL20-0720, DL20-0810, DL20-0910, DL30-0120, DL40-0100, DL44-0500, DL50-0010, etc.)
• APT-COM™ software editions for logging and documentation (9053-0039 BASIC, 9053-0040 PROFESSIONAL, 9053-0042 GLP)
• Accessories: multiple rack and shelf variants (chrome plated, stainless steel, perforated, heavy load) and consumables (pH-neutral detergent 1 kg)

Caractéristiques / spécifications techniques

• Model name: BF 720
• Temperature range: +10 °C above ambient to +100 °C
• Interior usable volume: 734 L
• Interior dimensions (W×H×D): 1,000 × 1,300 × 565 mm
• Housing dimensions (W×H×D): 1,165 × 1,590 × 870 mm
• Net weight (empty): 166 kg
• Rated voltage / nominal power: 230 V / 1.75 kW (article 9010-0321) or 240 V / 1.85 kW (article 9010-0322)
• Temperature uniformity (37°C): 0.3 ± K
• Temperature fluctuation (37°C): 0.1 ± K
• Heating up time to 37°C: 15 min; to 100°C: 45 min
• Recovery time after 30 s door opening (37°C): 4 min
• Standard shelves: 2 (up to 16 positions); max permitted load total: 315 kg; load per rack: 45 kg
• Number of inner/unit doors: 2 / 2
• Sound-pressure level: 43 dB(A)
• Energy consumption: 130 Wh/h at 37°C; 580 Wh/h at 100°C
• Safety: Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
• Other: APT.line™ technology, forced convection, LCD controller, USB data port, tempered inner glass door, ergonomic handle, castors (from 720 L)
