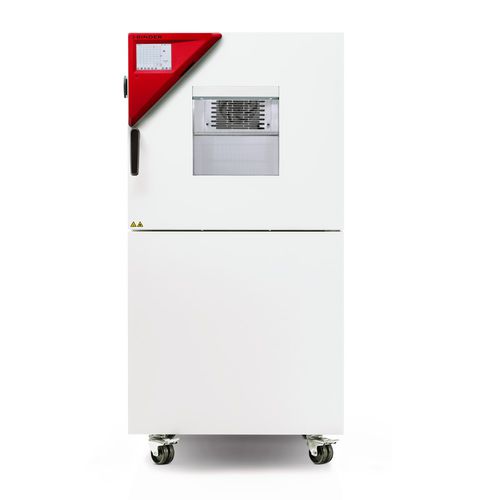

Climate chamber MK 56

temperaturefor rapid temperature cyclingfor cyclical applications

Product description
The BINDER MK series chamber is designed for heat and cold tests between -40 °C and +180 °C. The MK provides a compact, standardized solution for cyclical temperature tests and is suitable for laboratory and production test applications.

Benefits

• Homogeneous climate conditions thanks to APT.line™ preheating chamber
• Comprehensive programming and data acquisition capabilities
• Large heated viewing window with interior LED lighting

Key features

• Temperature range: -40 °C to +180 °C
• APT.line™ preheating chamber technology for uniform conditions
• Programmable condensation protection for test specimens
• Heated viewing window and LED interior illumination
• BINDER APT-COM™ Multi Management Software (Basic Edition) compatibility
• Fault diagnosis with visual and audible alarms
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger; measured values readable in open format via USB
• Unit self-test for status analysis
• Access port with 50 mm silicone plug (left)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• 4 castors, two with brakes
• Ethernet computer interface
• Adjustable ramp function and integrated chart recorder
• Real-time clock
• 1 stainless steel rack; stainless steel inner chamber
• CFC-free refrigerant R-452A; compressor cooling

Technical specifications — General data

• Article Number: 9020-0374 / 9020-0388
• Designation: MK056-230V / MK056-240V
• Version: Standard
• Rated Voltage: 230 V / 240 V
• Power frequency: 50 Hz / 60 Hz
• Nominal power: 2.8 kW; Unit fuse: 16.0 A; Phase: 1~
• Interior volume: 60 L; Net weight (empty): 165 kg
• Load per rack: 15 kg; Permitted load: 60 kg
• Dimensions (W×H×D) net: 720 × 1,445 × 778 mm
• Interior dimensions (W×H×D): 400 × 420 × 350 mm
• Number of shelves (std./max.): 1/4
• Sound-pressure level: 59 dB(A); Energy consumption at 20 °C: 600 Wh/h

Options & accessories (examples)

• Compressed air connection
• Door lock
• Dry air injection to avoid condensation
• Water cooling
• Access ports with silicone plugs (30 / 50 / 80 mm)
• Calibration certificates and extended services
• Analog output 4-20 mA; Pt100 sensors; RS485/RS422 interfaces; APT-COM™ software editions

Specifications — Summary

• Model: MK 56
• Temperature range: -40 °C to +180 °C
• Heating/cooling rates (average, IEC 60068-3-5): approx. 5.0 K/min
• Cooling time 180 °C → -40 °C: 90 min
• Interior volume: 60 L; Net weight: 165 kg
• Refrigerant: R-452A (CFC-free); Interface: Ethernet; USB data readout
