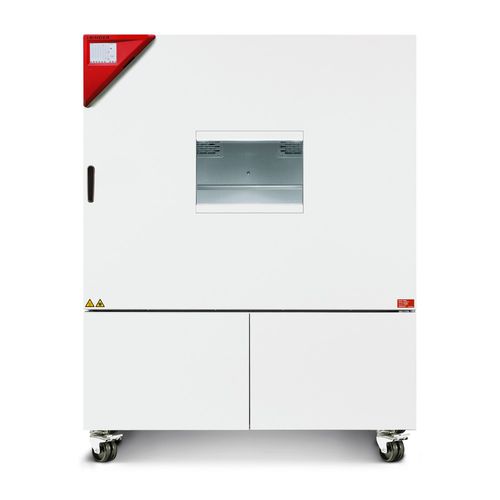

Climate chamber MKT 720
temperaturefor rapid temperature cyclinglaboratory

Climate chamber - MKT 720 - BINDER GmbH - temperature / for rapid temperature cycling / laboratory
Climate chamber - MKT 720 - BINDER GmbH - temperature / for rapid temperature cycling / laboratory
Climate chamber - MKT 720 - BINDER GmbH - temperature / for rapid temperature cycling / laboratory - image - 2
Climate chamber - MKT 720 - BINDER GmbH - temperature / for rapid temperature cycling / laboratory - image - 3
Add to favorites
Compare this product
Go to the BINDER GmbH website for more information

Characteristics

Type
climatic
Controlled parameter
temperature
Test type
for rapid temperature cycling
Applications
laboratory, for cyclical applications
Configuration
floor-standing, mobile
Light source
LED
Number of doors
1-door
Chamber material
stainless steel
Other characteristics
refrigerated, heating
Capacity

734 l
(193.9 gal)

Temperature range

Max.: 180 °C
(356 °F)

Min.: -70 °C
(-94 °F)

Power

13,000 W

Interior length

1,200 mm
(47.24 in)

Interior height

1,020 mm
(40.16 in)

Interior depth

600 mm
(23.62 in)

External length

1,580 mm
(62.2 in)

External height

2,005 mm
(78.94 in)

External depth

1,140 mm
(44.88 in)

Description

Product description
BINDER MKT series environmental test chambers provide temperature ranges from -70 °C to +180 °C with natural simulation. The MKT 720 meets high precision and performance requirements for cyclic temperature testing, featuring APT.line™ preheating, intuitive touchscreen controller with time-segment and real-time programming, internal data logger with USB export, heated viewing window with LED lighting, and cascade compressor cooling with CFC-free refrigerants (R-452A and R-23).

Benefits
  • Homogeneous climate conditions via APT.line™ preheating chamber
  • Comprehensive programming and data acquisition
  • Large heated viewing window with LED interior lighting


Important characteristics
  • Temperature range: -70 °C to +180 °C
  • 4 potential-free relay contacts
  • APT.line™ preheating chamber technology
  • Programmable condensation protection for test specimens
  • Heated viewing window and door heating
  • Internal stainless steel rack and stainless steel chamber
  • 2 access ports with 80 mm silicone plugs (left/right)
  • Class 2 adjustable temperature safety device (DIN 12880) with visual alarm
  • Intuitive touchscreen controller with time-segment and real-time programming; internal data logger (USB export)
  • Ethernet interface; optional RS485/RS422 and analog outputs
  • Cascade compressor cooling; refrigerants R-452A and R-23 (CFC-free)
  • Adjustable ramp function; integrated chart recorder; real-time clock


Data
Article numbers: 9020-0387 / 9020-0365
Designations: MKT720-400V / MKT720-480V-C
Versions: Standard / with voltage and frequency converter
Temperature range: -70...180 °C
Interior volume: 734 L; interior dimensions (W×H×D): 1,200 × 1,020 × 600 mm
Exterior dimensions (W×H×D, net): 1,580 × 2,005 × 1,140 mm
Net weight (empty): 610 kg
Permitted load: 160 kg; load per rack: 40 kg
Nominal power: 13 kW; rated voltages: 400 V (50 Hz) / 480 V (60 Hz)
Sound pressure level: 65 dB(A) / 67 dB(A) depending on version
Shelves (std/max): 1 / 11
Number of doors: 1
