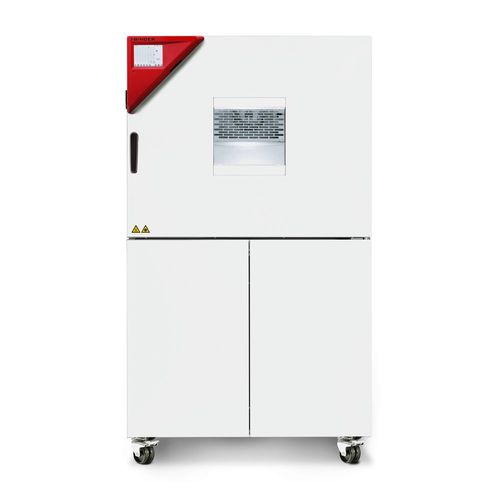

Climate chamber MKF 115

humiditytemperaturefor environmental simulation

Product description
The BINDER MKF 115 environmental simulation chamber is designed for temperature and climate testing according to DIN and IEC standards. It combines a compact 115 L interior with dynamic temperature cycles, vapor humidification and comprehensive standard equipment for industrial test applications.

Benefits

• Uniform climate conditions via APT.line™ preheating chamber
• Automated fresh water and wastewater management
• Fast-response vapor humidification with capacitive humidity sensing
• Extensive programming, data acquisition and export (USB, Ethernet)
• Heated viewing window with LED interior lighting

Important characteristics

• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH (10...95 °C with humidity control)
• Interior volume: 115 L; internal dimensions: 600 × 480 × 400 mm (W×H×D)
• Integrated 20 L water-storage tank and automatic water/wastewater handling
• 4 potential-free relay contacts; access port 50 mm (left) with silicone plug
• Heated viewing window, LED interior lighting, 1 stainless-steel rack (std.), up to 4 positions
• APT-COM™ Basic multi-management software compatibility; internal data logger with USB export
• CFC-free refrigerant R-452A; compressor refrigeration

Technical data — General

• Article numbers (examples): 9020-0379 (MKF115-400V Standard), 9020-0357 (MKF115-480V-C)
• Model: MKF 115
• Manufacturer: BINDER

Technical data — Temperature

• Set range: -40...180 °C
• Spatial temperature uniformity (dependent on set value): 0.1...1.3 ± K
• Temporal temperature fluctuation (dependent on set value): 0.1...0.6 ± K
• Average heating rate (IEC 60068-3-5, -40 °C → 180 °C): 5.5 K/min
• Average cooling rate (IEC 60068-3-5, 180 °C → -40 °C): 4.5 K/min; cooling time 180 °C → -40 °C: 100 min

Technical data — Climate

• Temperature range with humidity control: 10...95 °C
• Humidity range: 10...98 % RH
• Humidity fluctuation (dependent on set value): ≤ 2.5 ± % r.H.
• Maximum heat compensation at 25 °C / 90 % RH: 400 W

Electrical data

• Typical configuration: 400 V / 50 Hz (other config 480 V / 60 Hz)
• Nominal power: 4.8 kW; unit fuse example: 16.0 A; 3~ (3~/N/PE for 400 V variant)
• Computer interface: Ethernet; other interface options available (RS485/RS422)

Dimensions and weight

• Housing dimensions (net): Width 980 mm; Height 1,725 mm; Depth 865 mm
• Interior usable volume: 115 L; interior dimensions: 600 × 480 × 400 mm
• Unit net weight (empty): 280 kg
• Recommended wall clearance: back 300 mm, sides 200 mm

Built-in features and options

• Integrated chart recorder; real-time clock; adjustable ramp function; door heating
• Alarm system with visual and audible alerts; alarm for insufficient water in fresh water tank
• Accessories and options: additional access ports (various sizes/positions), locks, compressed air fittings, dry-air injection, water circuits, water cooling, calibration certificates (1/9/18/27 point), APT-COM™ software editions, PT100 probe (optional), maintenance and commissioning services

Technical specifications (summary)

• Model: MKF 115
• Brand: BINDER
• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Interior volume: 115 L
• Heating / cooling rates (IEC 60068-3-5): 5.5 K/min up, 4.5 K/min down
• Refrigerant: R-452A (CFC-free)
• Nominal power (example): 4.8 kW
• Interfaces: Ethernet (std.), USB data export
