Climate chamber MKF 1020

humiditytemperaturefor environmental simulation

Product description

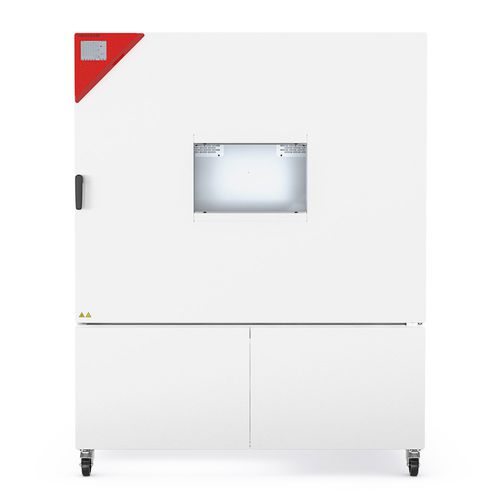

The BINDER MKF 1020 environmental simulation chamber is designed for standardized temperature and climate tests (DIN, IEC). It integrates APT.line™ preheating technology and an automatic water management system to support reproducible rapid temperature changes with controlled humidity. The unit is intended for laboratory and industrial test applications requiring programmable cycles and data logging.

Benefits

• Uniform climate conditions using APT.line™ preheating chamber
• Automatic fresh water and wastewater handling
• Fast-response pressure steam humidification
• Comprehensive programming and data acquisition (touchscreen, USB, Ethernet)
• Large heated viewing window with LED interior lighting

Important characteristics

• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH
• Integrated 20 L water-storage tank and automatic water management
• APT.line™ preheating technology and programmable condensation protection
• Heated viewing window, LED lighting and door heating
• 2 access ports with silicone plugs (80 mm left and right)
• Internal stainless-steel chamber and 1 stainless-steel rack (std.)
• CFC-free refrigerant R-452A and compressor cooling

Technical specifications

• Model: MKF 1020
• Article numbers / variants: 9020-0409 (MKF1020-400V, Standard); 9020-0448 (MKF1020-480V-C, with voltage/frequency converter)
• Temperature range: -40...180 °C
• Temperature uniformity: 0.1...1.8 ± K (dependent on setpoint)
• Heating rate (avg., IEC 60068-3-5): up to 5.5 K/min; Cooling rate: up to 5.0 K/min; Cool-down 180 °C → -40 °C: 120 min
• Humidity range: 10...98 % RH; humidity control with capacitive sensor
• Interior volume: 991 L; internal dimensions W 1,200 mm × H 1,020 mm × D 810 mm
• Nominal power: 12.5 kW; rated voltage: 400 V (std.) / 480 V (option)
• Net weight (empty): 636 kg; permitted load: 200 kg; load per rack: 40 kg
• Number of shelves (std./max.): 1 / 11
• Interfaces: Ethernet (std.), USB data readout; touchscreen controller; integrated data logger
• Accessories & options: APT-COM™ software editions, additional ports, analog outputs, water circuit for condensate reuse, water treatment and service packages
