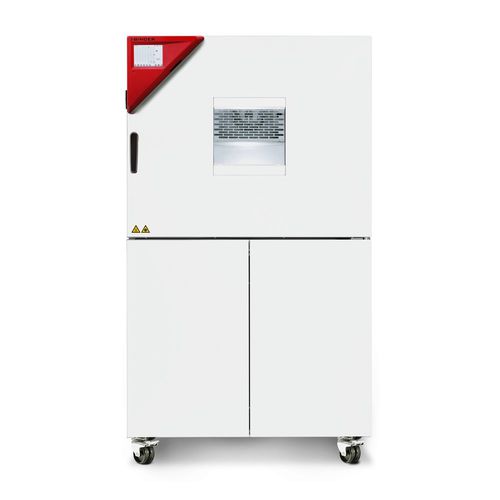

Climate chamber MKFT 115

humiditytemperaturefor rapid temperature cycling

Product description
The MKFT 115 environmental simulation chamber is engineered for dynamic alternating climate tests from -70 °C to 180 °C. Its cascade cooling system, rapid temperature-change performance and integrated humidification make it suitable for standardized and complex test profiles in laboratories and industrial test environments.

Benefits

• Homogeneous climate conditions via APT.line™ preheating chamber
• Automatic fresh‑water and wastewater management with integrated 20 L tank
• Pressure/vapor humidification for fast humidity response
• Comprehensive programming (time‑segment and real‑time) and internal data logging with USB export
• Heated viewing window with LED interior lighting for safe observation

Key characteristics

• Temperature range: -70 °C to +180 °C
• Humidity range: approx. 10 % to 98 % RH (application dependent)
• Interior volume: 115 L; internal dimensions W×H×D: 600 × 480 × 400 mm
• Integrated 20 L water storage tank; automatic water/wastewater handling
• APT.line™ preheating chamber technology and capacitive humidity sensor
• Cascade compressor cooling with refrigerants R‑452A and R‑23
• Intuitive touchscreen controller, Ethernet interface, internal data logger (open format via USB)
• Heated viewing window, LED lighting, 4 castors (2 braked), 1 stainless steel rack (std.)
• Safety: class 2 adjustable temperature limiter (DIN 12880), visual/audible alarms, troubleshooting system

Selected technical data
Article numbers: 9020‑0382 (400 V 50 Hz) | 9020‑0362 (480 V 60 Hz)
Designation: MKFT115‑400V / MKFT115‑480V‑C
Performance — Temperature: average heating rate (IEC 60068‑3‑5) -40 °C→180 °C: 5.5 K/min; cooling 180 °C→-70 °C: 120 min; average cooling rate (180 °C→-40 °C): ~4.2 K/min
Performance — Climate: temperature with humidity: 10…90 °C; humidity control up to 95 % RH (application dependent); humidity fluctuation ≤2.5 % r.F.
Electrical: rated power 5 kW; fuses 16 A; variants 400 V 50 Hz or 480 V 60 Hz
Dimensions & weights: housing W×H×D: 980 × 1,725 × 865 mm; net weight ≈ 330 kg / 494 kg (variant); sound pressure level 64–67 dB(A)

Options & accessories

• Access ports (various sizes/positions) and silicone plugs
• Dry‑air purge / compressed air connection
• Analog outputs (4–20 mA), additional Pt100 sensor, RS‑485/RS‑422 interfaces
• PURE AQUA water preparation, water circuit for condensate reuse
• Additional racks (stainless steel / reinforced), door lock, calibration certificates, IQ/OQ documentation
• APT‑COM™ software editions and service contracts (installation, calibration, maintenance)

Specifications

• Model: MKFT 115
• Temperature range: -70 °C to +180 °C
• Humidity range (with control): 10…90 °C; 10 % to 98 % RH
• Interior volume: 115 L; load per rack: 30 kg; permitted load: 60 kg
• Cooling: cascade compressor; refrigerants R‑452A / R‑23
• Control & data: touchscreen, internal data logger, Ethernet, USB export
