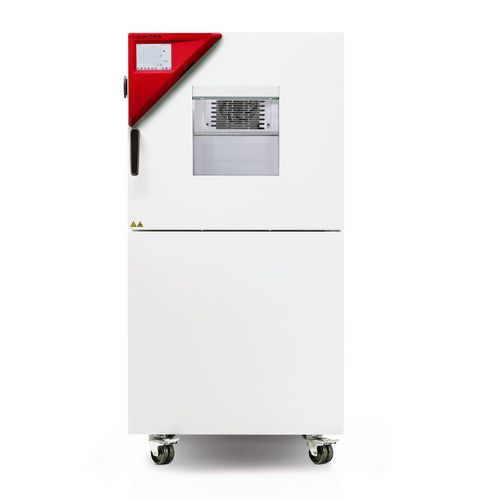

Thermostatic test chamber MKF 56

climatichumiditytemperature

Product description
A BINDER MKF series environmental simulation chamber for standardized cold and heat testing according to DIN and IEC methods. The unit combines a compact 60 L stainless steel interior with intuitive control and extensive standard features for laboratory and R&D use.

Benefits

• Homogeneous climate using APT.line™ preheating chamber
• Automatic water supply and wastewater management
• Pressure/vapor humidification with fast response
• Comprehensive programming and data acquisition (internal logger, USB, APT-COM™ Basic)
• Large heated viewing window with LED interior lighting

Important characteristics

• Temperature range: -40 °C to +180 °C
• Humidity range: 10 % to 98 % RH (with humidity control)
• 4 potential-free relay contacts (MCS controller activatable)
• APT.line™ preheating chamber technology
• Programmable condensation protection for test specimens
• Heated viewing window; LED interior lighting
• Capacitive humidity sensor and vapor humidification
• Intuitive touchscreen controller with time-segment and real-time programming
• Internal data logger with open-format USB readout
• Access port with silicone plug 50 mm (left)
• 4 castors (2 with brakes); Ethernet interface
• Door heating and adjustable ramp function
• Stainless steel inner chamber; Pt100 temperature sensor
• CFC-free refrigerant R-452A; compressor cooling; fin evaporator

Technical specifications (selected data)
Article Number: 9020-0378 | 9020-0389
Designation: MKF056-230V | MKF056-240V
Temperature range: -40...180 °C
Temperature uniformity (depending on set value): 0.5...1.5 ± K
Temperature fluctuation (depending on set value): 0.1...0.5 ± K
Average heating/cooling rate (IEC 60068-3-5): 5.0 K/min
Cooling time 180 °C → -40 °C: 90 min
Temperature range with humidity: 10...95 °C; Humidity range: 10...98 % RH
Interior volume: 60 L (400 × 420 × 348 mm)
Net weight (empty): 175 kg; Shelves (std/max): 1/4; Load per rack: 15 kg; Permitted load: 60 kg
Rated voltage: 230 V | 240 V; Nominal power: 2.8 kW; Unit fuse: 16 A
Sound-pressure level: 59 dB(A); Energy consumption (25 °C, 60 % RH): 800 Wh/h
Refrigerant: R-452A (CFC-free)
