Thermal transfer printer BBP12-UK-U-C-BWS

labelfor labelsbarcode label

Description
The BBP®12 Label Printer packs high-speed thermal transfer printing, a wide range of media compatibility and a compact, user-focused design into a single desktop unit suitable for industrial identification tasks.

Featured benefits

• One device for multiple label types reduces equipment footprint and operating cost.
• Supports over 800 label variants including external-feed bulk rolls and custom parts for wire marking, asset tracking and general identification.
• Small-core consumables and ribbons speed up media loading and reduce changeover time.
• Centered ribbon spindle minimises ribbon wrinkles for consistent print quality.
• Compact footprint for bench or workplace integration.
• Includes a licence for the Brady Workstation suite (Product & Wire Identification, Safety & Facility Identification, or Lab Identification) to streamline label and sign creation.

Key Features

• Continuous vs Die Cut Labels: Bulk, Continuous, Custom, Die-cut
• Applications: Asset tracking, Barcode labelling, Circuit board labelling, Component and equipment labelling, General identification
• Colour Capability: Monocolour
• Max. Label Width: 116.84 mm
• Print Technology: Thermal Transfer
• Recommended Usage per Day: 1000 labels (typical estimate)
• Resolution: 300 dpi
• Stand Alone Printing: Peripheral (printer is designed to operate as a peripheral; some setups may use host software)

Key Characteristics (extracted)
Article Number: 322909
Order Reference: BBP12-UK-U-C-BWS
Total Qty per Pack: 1 Piece(s) / Piece
Minimum Order Quantity: 1
Application(s): Asset tracking, Barcode labelling, Circuit board labelling, Component and equipment labelling, General identification
Quantity: 1
Brand: Brady®
Trade Name: BBP®12
Ribbon Series: R4300, R4400, R4500, R4900, R6000HF, R6100, R6200, R6400, R6600
Country of Origin: China

Dimensions
Size - Width (mm): 202.95 mm
Size - Height (mm): 190.50 mm
Size - Depth (mm): 259.33 mm
Weight (kg): 2.3 kg
Core - Diameter (mm): 25.40 mm
Display Size: 58.42 mm
Minimum Label Height (mm): 10.00 mm
Dimensions (W x H x D): 202.95 mm (W) x 190.50 mm (H) x 259.33 mm (D)

Material Characteristics
Materials Supported: Direct Thermal Paper; FreezerBondz™ Polyester; Heat-shrink Polyolefin; Metallised Polyester; Metallised Polyester with Polyester Overlaminate; Nylon Cloth; Paper; Polyester; Polyester with Polyester Overlaminate; Polyimide; Polyolefin; Polypropylene; Polyvinylfluoride; Repositionable Paper; Self-laminating Polyester; Self-laminating Vinyl; StainerBondz™ Polyester; Tamper-resistant Metallised Vinyl; Tamper-resistant Vinyl; Vinyl; Vinyl Cloth; Water-indicating Polyester/Paper Laminate
Colour: Blue, Grey

Product Features
Auto Shut Off: No
Battery Type: Coin/Button Cell
Battery Weight (metric): 3.000
Media Sensor: Black Mark, Gap Sensor, Head Open, Ribbon End
Language Support: Czech, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Kazakh, Lithuanian, Norwegian (Bokmål), Polish, Portuguese, Russian, Slovak, Spanish, Swedish, Turkish
Calibration: Manual (printer requires manual calibration for optimal performance)
Connectivity Options: Ethernet, Serial, USB
Custom Labels Available: Yes
Cutter Type: Auto Cutter; between labels or at end of print job; without label retention
Display Type: Colour LCD Screen
Hardware Options: Cleaning swabs; Cutter (factory installed option); External media holder; Peel & Present; Universal keyboard
How Is Battery Shipped: Shipped installed in equipment
Interface Type: PC
Internal Memory Capacity: 128 MB Flash, 64 MB SDRAM, SD Flash memory card up to 32 GB
Barcode Symbologies: China Post, Codabar (NW-7), Code 11, Code 128, GS1-128, Code 39, Code 93, Deutsche Post Identcode, EAN-13, EAN-8, GS1 DataBar, GS1 DataBar Stacked Omnidirectional, Interleaved 2 of 5, ITF-14, MSI, POSTNET, Telepen, UPC-A, UPC-E, Aztec, GS1 DataMatrix, MaxiCode, MicroPDF417, PDF417, QR code, Code 49
Keyboard Type: None
Operating Humidity Range: 25%-85% (non-condensing)
Operating System: Windows® 7, Windows® 8, Windows® 10, Windows® 11
Operating Temperature: 5°C - 40°C
Stand Alone Printing: Peripheral (requires a computer or app for operation in peripheral mode)
Power Source: AC Adaptor
Power Supply Voltage: 110 - 240 V
Print Preview Feature: No
Printing Wizards: No
Shipped With Battery: Yes
Storage humidity: 10%-90% (non-condensing)
Storage Temperature: -40°C - 70°C

Printing Specifications
Print Technology: Thermal Transfer
Print Speed (mm/sec): 101.60 mm/s
Colour Capability: Monocolour
Resolution (dpi): 300 dpi
Display Resolution: 320 x 240 pixels
Max. Label Width (mm): 116.84 mm
Max. Liner Width (mm): 116.84 mm
Recommended Usage per Day: 1000
Max. Print Width (mm): 105.41 mm
Max. Print Length (mm): 11.43 m
Max. Roll Outer Diameter (mm): 127.00 mm
Maximum Label Thickness (mm): 0.19 mm
Hours of Operation: 8 hours/5 days (typical)
Print Rotation: 0°, 90°, 180°, 270°
Min. Label Width (mm): 6.00 mm
Programming Language: Built-in ZPL Emulator
Smart Cell: No

Compatibility
Continuous vs Die Cut Labels: Bulk, Continuous, Custom, Die-cut
Software Compatibility: Brady Workstation; Windows-based driver for 3rd party software use
B- Numbers supported (selected): B-423, B-424, B-425, B-427, B-428, B-430, B-433, B-449, B-457, B-472, B-483, B-486, B-488, B-490, B-498, B-499
Compatible Media prefixes (examples): 2HX-, 3PS-, HX-, PS-, THT-
Min. Label Length (mm) (typical tested): 9.91 mm

What's Included

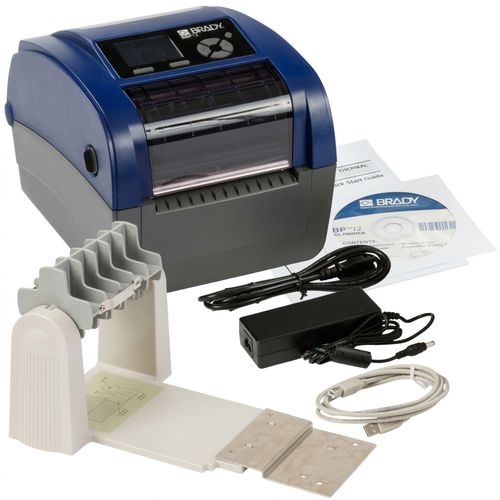

This BBP12 label printer has a cutter pre-installed and ships in a cardboard box with an unwinder, USB cable, power cord, product CD, Quick Start Guide and a licence for Brady Workstation Software suites.
Warranty: 1 year

Compliance (summary)
UNSPSC: 45101519
RoHS Compliance Status: Compliant with 2011/65/EU with exemptions
REACH SVHC Status: Part contains an SVHC
REACH Candidate List Date: 04 February 2026
Approvals/Compliance: CE, cUL, EAC, RoHS, UL

caractéristiques / spécifications techniques

• Trade name / Model: BBP®12
• Print technology: Thermal Transfer, 300 dpi
• Max print width: 105.41 mm / Max label width: 116.84 mm
• Print speed: up to 101.60 mm/s
• Media support: wide range including polyester, vinyl, polyolefin, polyimide, paper and self-laminating materials
• Connectivity: Ethernet, Serial, USB
• Memory: 128 MB Flash, 64 MB SDRAM, SD card up to 32 GB
• Dimensions (W×H×D): 202.95 × 190.50 × 259.33 mm; Weight: 2.3 kg
• Included: Unwinder, USB cable, power cord, product CD, Quick Start Guide, Brady Workstation licence; cutter pre-installed
• Warranty: 1 year
