Laboratory labeler I7500-600-UK

manualautomaticautomated

Overview
High-performance industrial label printer designed for 76.2 mm core rolls. The Brady i7500 (600 dpi) delivers fast setup using LabelSense™ technology to detect materials and automate print parameters for minimal waste and rapid job changeovers.

Highlighted Benefits

• Automatic print-speed, heat and sensor configuration — eliminates trial-and-error setup
• First-label printing: detects part size and spacing to avoid wasted blanks
• i75-Series ribbons auto-center and validate ribbon/label compatibility
• Supports 4,000+ stock i75-Series parts and ribbons in smart mode
• Manual mode available for 76.2 mm core labels and 25.4 mm core ribbons
• Brady WorkStation Basic software (included) enables driverless 1-click setup; compatible with standard Win drivers
• 600 dpi printhead for high-precision text and barcodes; field-exchangeable to optional 300 dpi without firmware update
• Standard with tear bar; optional auto cutter kits user-installable

Key Features

• Applications: asset tracking, barcode labelling, PCB labelling, data & telecom, electrical identification, inventory & inspection, labelling for laboratories and warehouses, solar panel and wire/cable labelling, tamper-indicating labels
• Colour Capability: Monocolour
• Max. Label Width: 107.95 mm
• Max. Print Length: 1.524 m
• Min. Label Width: 4.01 mm
• Recommended Usage per Day: 7000
• Resolution: 600 dpi (field-exchangeable to 300 dpi)
• Connectivity: Bluetooth, Ethernet, USB, Wi‑Fi

Specifications (summary)
Minimum Order Quantity: 1
Article Number: 323327
Order Reference: i7500-600-UK
Total Qty per Pack: 1 Piece(s) / Box
Brand: Brady®
Trade Name: i7500
Ribbon Series: i75-R4300; i75-R4400-BL; i75-R4400-GR; i75-R4400-RD; i75-R4400-WT; i75-R4500-BL; i75-R4500-RD; i75-R4500-SV; i75-R4900; i75-R6000; i75-R6200; i75-R6300; i75-R6400; i75-R6600; i75-R6700; i75-R6800
Country of Origin: Malaysia

Dimensions
Size - Width (mm): 292.10 mm
Size - Height (mm): 370.84 mm
Size - Depth (mm): 530.86 mm
Weight (kg): 18.14 kg
Core - Diameter (mm): 76.20 mm
Display Size: 177.80 mm
Minimum Label Height (mm): 3.18 mm
Dimensions (W x H x D): 292.10 mm x 370.84 mm x 530.86 mm

Material Characteristics
Supported materials include: Diesel-resistant heat-shrink polyolefin sleeve; Direct thermal paper; FreezerBondz™ polyester; Heat-shrink polyolefin; High-temp PVDF heat-shrink; Metallic and metallised polyester; Non-metal polyester; Nylon cloth; Paper; Polyester; Polyethylene foam laminate polyester; Polyethylene tag; Polyimide; Polypropylene; Polyvinylfluoride; Repositionable paper; Self-laminating polyester & vinyl; StainerBondz™ polyester; Static dissipative polyester; Tamper-evident and tamper-resistant vinyl/metalised films; Vinyl cloth

Product Features
Auto Shut Off: Yes
Battery Type: Internal, non-removable (battery weight: 3.000)
Media Sensor: Black mark, continuous, gap sensor, notch
Language Support: Multiple languages including English, French, German, Spanish, Chinese, Japanese, Korean
Calibration: Automated with i75-Series consumables; manual calibration possible
Connectivity Options: Bluetooth, Ethernet, USB, Wi‑Fi
Custom Labels Available: Yes
Cutter Type: Tear bar standard; Auto Cutter and perf-cut as accessories
Display: Colour LCD touchscreen (~177.8 mm)
Hardware Options: Auto cutter, cleaning swabs, I/O interface, narrow-width rollers, 300 dpi or 600 dpi printheads
Memory: 512 MB RAM; 195 MB flash
Barcode Symbologies: Code 39, Code 128, Code 93, EAN‑13, EAN‑8, GS1‑128, Industrial 2 of 5, ITF‑14, UPC‑A, UPC‑E, Aztec, Data Matrix, GS1 DataMatrix, MicroPDF417, PDF417, QR and more via Brady WorkStation
Operating Humidity: 10%–85% RH (non‑condensing)
Operating Temperature: 10°C – 40°C
Storage Temperature: -20°C – 50°C
Power Source: 100–240 V, 50–60 Hz
Print Technology: Direct thermal, thermal transfer
Print Speed: up to 152.40 mm/s
Max. Print Width: 105.66 mm
Max. Roll Outer Diameter: 215.90 mm
Max. Label Thickness: 1.956 mm
Hours of Operation: 24/7 capability
Number of Stock Parts: 4500+ standard parts
On-screen Indicators: Bluetooth, Ethernet, WiFi, data reception, errors, material recognition, supply remaining, print preview
Programming Language: Built-in ZPL emulator

What’s Included

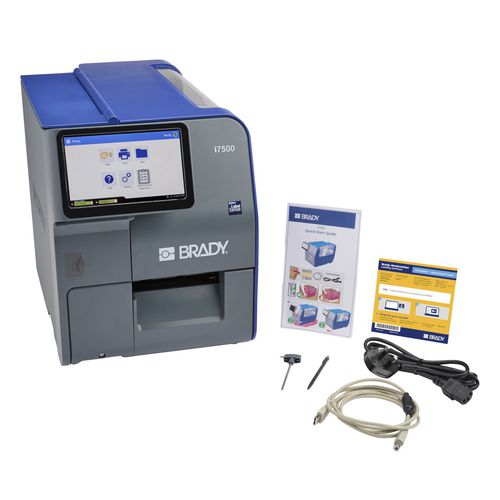

Includes: i7500 printer (600 dpi) with serrated tear bar installed, T-20 wrench, UK power cord, USB cable, Brady WorkStation Basic software, QuickStart Guide

Warranty
2 years

Compliance
RoHS: Compliant with 2011/65/EU (with exemptions)
REACH: Product contains an SVHC (candidate list date indicated)
EU Declaration of Conformity and product documents available
