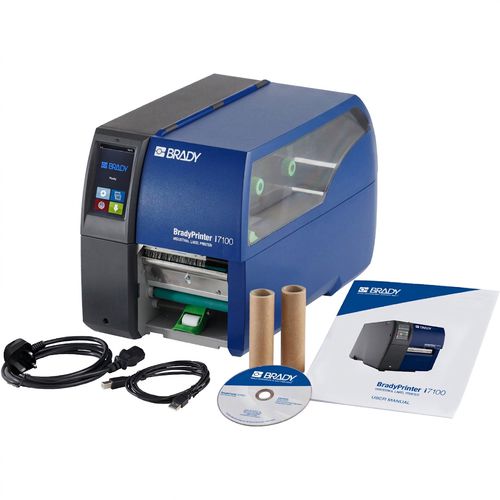

Direct thermal printer I7100-300P-UK-BWS

thermal transferfor bar code labelsbarcode label

Description
The BradyPrinter i7100 300 dpi thermal transfer desktop printer is engineered for industrial customers who need high-volume, multi-material label production across aerospace, defense, public transport, electronics, automotive, logistics, electrical, datacom/telecom and laboratory environments. It provides accurate printing on heat-shrink sleeves, labels, ribbons, cable markers and other identification media.

Main benefits

• Print confidently on a wide range of media, including hard-to-print substrates
• Peel-and-present configuration automatically separates labels from the liner
• Ultra-precise printing on labels down to 4 mm
• Designed for continuous use: thousands of labels per day
• Intuitive touchscreen interface for fast adjustment of print settings
• Supplied with a license for a Brady Workstation suite of your choice (Product & Wire, Safety & Facilities, or Lab Identification)

Key features (summary)

• Applications: Barcode labeling; PCB and component labeling; wire & cable identification; electrical labeling; laboratory labeling; inspection and inventory identification; telecom/datacom; general identification
• Connectivity: USB, Ethernet, I/O, Serial; optional Bluetooth and Wi‑Fi
• Color capability: Monochrome
• Label width supported: 4.00 mm – 109.98 mm
• Max print length: 249.00 mm
• Recommended daily volume: 7000 labels
• Resolution: 300 dpi

Table - Key specifications (excerpt)
Item number: 322876
Order reference: i7100-300P-EU-BWS
Package quantity: 1 Piece(s)
Minimum order quantity: 1
Brand: Brady®
Commercial name: BradyPrinter i7100
Special property: Supplied with preinstalled antistatic brush to dissipate electrostatic charge after printing
Country of origin: Germany

Table - Dimensions
Width: 251.46 mm
Height: 289.56 mm
Depth: 459.74 mm
Weight: 10 kg
Display size: 52.00 x 92.00 mm
Min. label height: 6.00 mm (note: 4–6 mm for Peel version)
Overall dimensions (L x H x D): 251.46 x 289.56 x 459.74 mm

Table - Supported materials & colours
Supported materials: Diesel-resistant polyolefin heat-shrink sleeves; high-temperature PVF sleeves; paper; removable paper; direct thermal paper; polyester (various including tamper-evident, anti-static, laminated, FreezerBondz™, metallised); polyimide; polyolefin; polypropylene; vinyl; fabrics (nylon, vinyl) and other industrial label substrates
Colours: Blue, Grey

Table - Product features
Battery type: Coin/cell (shipped installed)
Battery weight: 3.000
Media sensors: Gap sensor, Reflective sensor, Notch, Black mark
Supported languages (UI): German, English, Arabic (Egypt), Bulgarian, Croatian, Danish, Spanish, Finnish, French, Greek, Hungarian, Italian, Lithuanian, Macedonian, Dutch, Norwegian, Persian (Farsi), Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Swedish, Czech, Turkish
Calibration: Manual (manual calibration required for optimal performance)
Connectivity options (recap): Bluetooth (optional), Serial, Ethernet, I/O, USB, Wi‑Fi (optional)
Standalone printing: Standalone & host-connected
Power: AC adapter; Voltage: 100 - 240 V @ 50 - 60 Hz
Shipped with battery: Yes (installed)
Operating humidity: 10% - 85% RH (non-condensing)
Operating temperature: 0°C - 40°C

Table - Print specifications
Print technology: Thermal transfer, Direct thermal transfer
Print speed: 150 mm/s
Resolution: 300 dpi
Display resolution: 480 x 272 pixels
Max label width: 109.98 mm
Max media width: 114.05 mm
Max print width: 105.66 mm
Max print length: 249.00 mm
Max roll outer diameter: 204.98 mm
Max label thickness: 1.00 mm
Min. label width: 4.00 mm
Min. label height: 4–6 mm (Peel version)
Barcode symbologies: Extensive 1D/2D support (Code 128, Code 39, GS1, EAN/UPC, QR, DataMatrix, PDF417, MaxiCode, Aztec, MicroPDF417, etc.)
Programming languages: Built-in ZPL emulation, SAP integration, JScript, etc.

Included
Shipped with preinstalled peel-and-present module; EU power cord; 2 empty ribbon cores; USB cable; product CD with driver; multilingual user guide; configuration/setup guide in English; printed user manual in English; license for one Brady Workstation software suite

Compliance & Warranty
Warranty: 2 years
Compliance: RoHS 2011/65/EU; REACH SVHC: no SVHC present; Approvals/Marks: CCC, CE, FCC class A, UL (as listed by manufacturer)

Technical characteristics / specifications

• Commercial model: BradyPrinter i7100
• Article reference: i7100-300P-EU-BWS
• Internal item number: 322876
• Print resolution: 300 dpi
• Print speed: 150 mm/s
• Max print width: 105.66 mm
• Supported label width: 4 mm - 109.98 mm
• Max print length: 249.00 mm
• Max roll diameter: 204.98 mm
• Max label thickness: 1.00 mm
• Supported materials: Wide range (paper, polyester, polyolefin, polyimide, vinyl, fabrics, etc.)
• Connectivity: USB, Ethernet, I/O, Serial; options Bluetooth, Wi‑Fi
• Display: Colour touchscreen (LCD)
• Memory: 256 MB RAM; 50 MB IFFS Flash; SD card up to 512 GB
• Operation modes: Standalone and connected
• Operating temperature: 0°C - 40°C; Storage: 0°C - 60°C
• Operating humidity: 10% - 85% RH (non-condensing)
• Weight: 10 kg
• Dimensions (L x H x D): 251.46 x 289.56 x 459.74 mm
• Warranty: 2 years
