Laboratory labeler I7100-600-UK-BWS

continuous-motionautomatedelectric

Product overview

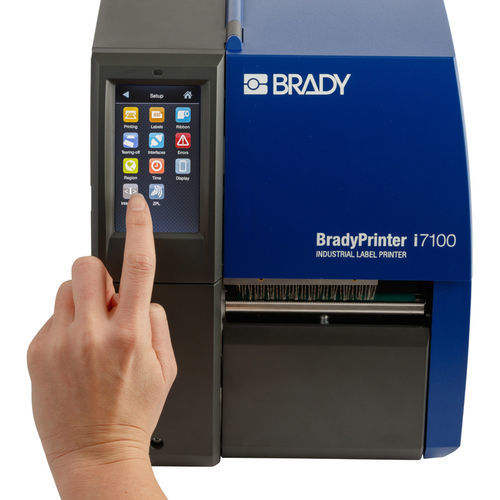

The BradyPrinter i7100 industrial thermal transfer benchtop printer delivers accurate, high-volume printing on a wide range of materials used in aerospace, defence, mass transit, electronics, automotive, logistics, electrical and laboratory environments. It supports labels, sleeves, tags, tapes and cable markers with consistent registration and print quality.

Key benefits

• Prints on a broad set of materials, including difficult-to-print media
• Peel configuration automatically separates labels from the liner for inline application
• Capable of ultra-sharp printing on labels down to 4 mm with high precision
• Designed for continuous high-volume operation—thousands of labels per day
• Intuitive touch-screen interface for quick configuration and job management
• Includes a licence for the Brady Workstation suite of your choice (Product & Wire Identification, Safety & Facility Identification, or Lab Identification)

Key features

• Application(s): Barcode labelling; Circuit board labelling; Component and equipment identification; Data and telecommunications labelling; Electrical labelling; General identification; Inventory and inspection; Laboratory labelling; Wire and cable labelling
• Colour Capability: Monocolour
• Max. Label Width: 109.98 mm
• Max. Print Length: 249.00 mm
• Min. Label Width: 4.00 mm
• Recommended Usage per Day: 7000 labels/day (manufacturer estimate)
• Resolution: 600 dpi
• Connectivity Options: Bluetooth (optional), Ethernet, I/O connection, Serial, USB, Wi‑Fi (optional)

Specifications (summary)
Key Characteristics
Article Number: 322874
Order Reference: i7100-600-UK-BWS
Total Qty per Pack: 1 Piece(s) / Box
Minimum Order Quantity: 1
Brand: Brady®
Trade Name: BradyPrinter i7100
Ribbon Series: Heatex, R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6300, R6400, R6600, R6700, R6800
Additional Information: Pre-installed anti-static brush dissipates electrostatic charge after printing

Dimensions
Size - Width (mm): 251.46 mm
Size - Height (mm): 289.56 mm
Size - Depth (mm): 459.74 mm
Weight (kg): 10 kg
Display Size: 52.00 x 92.00 mm
Minimum Label Height (mm): 6.00 mm
Overall Dimensions: 251.46 mm (W) x 289.56 mm (H) x 459.74 mm (D)

Material Characteristics
Materials Supported: Diesel-resistant heat-shrink polyolefin sleeve; Direct thermal paper; FreezerBondz™ polyester; Heat-shrink polyolefin; High-temperature heat-shrink PVDF sleeve; Metallic; Non-metal polyester; Metallised polyester; Metallised polyester with polyester overlaminate; Nylon cloth; Paper; Polyester; Polyester with polyester overlaminate; Polyethylene foam laminate polyester; Polyimide; Polyolefin; Polypropylene; Polyvinylfluoride; Repositionable paper; Self-laminating polyester; Self-laminating vinyl; StainerBondz™ polyester; Static dissipative polyester; Tamper-evident metallised polyester; Tamper-evident polyester; Tamper-resistant metallised vinyl; Tamper-resistant vinyl; Vinyl; Vinyl cloth; Water-indicating polyester/paper laminate
Colour (available): Blue, Grey

Product Features
Battery Type: Coin/Button Cell
Battery Weight (metric): 3.000
Media Sensor: Black Mark, Gap Sensor, Notch, Reflective Sensor
Language Support: Arabic (Egypt), Bulgarian, Croatian, Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Lithuanian, Macedonian, Norwegian (Bokmål), Persian (Farsi), Polish, Portuguese, Romanian, Russian, Serbian, Slovenian, Spanish, Swedish, Turkish
Calibration: Manual
Connectivity Options (summary): Bluetooth (optional), Ethernet, I/O connection, Serial, USB, Wi‑Fi (optional)
Stand Alone Printing: Stand-alone & Peripheral modes supported
Power Source: AC Adaptor (100 - 240 V @ 50 - 60 Hz)
Shipped With Battery: Yes
Internal Memory Capacity: 256 MB RAM; 50 MB IFFS Flash; SD card up to 512 GB
Barcode Symbologies: Supports Code 128, Code 39, GS1-128, EAN/UPC, QR code, Data Matrix, PDF417 and more
Operating Humidity Range: 10%-85% RH (non-condensing)
Operating Temperature: 0°C - 40°C
Storage Temperature: 0°C - 60°C
Storage Humidity: 20%-85% RH (non-condensing)

Printing Specifications
Print Technology: Direct Thermal and Thermal Transfer
Print Speed: up to 150 mm/s
Display Resolution: 480 x 272 pixels
Max. Liner Width (mm): 114.05 mm
Max. Print Width (mm): 105.66 mm
Max. Roll Outer Diameter (mm): 204.98 mm
Maximum Label Thickness (mm): 1.00 mm
Min. Label Length (mm): 3.18 mm
Font Styles: Bitmap and scalable fonts including OCR-A/B, Swiss 721 and others
Hours of Operation: 24/7 capable

Compatibility
Continuous vs Die Cut Labels: Bulk, Continuous, Custom, Die-cut
Software Compatibility: Brady Workstation; Windows-based driver for 3rd party software use
B-Numbers supported: multiple manufacturer B-numbers for compatible materials
Compatible Media prefixes: 3PS-, BPT-, BPTC-, BPTRDS-, HCM-, HSNX-, HX-, LSZH-, PS-, PSHT-, PSL-, TB-, THT-, TIL-, XTHT-, ZH-

What’s included
Includes: i7100 printer in cardboard box; UK power cord; 2 empty ribbon cores; USB cable; product CD with driver; user manual in multiple languages; configuration/settings manual (English); printed user manual (English); licence for Brady Workstation software suites

Compliance (high level)
UNSPSC: 45101519
RoHS: Compliant with 2011/65/EU with exemptions
REACH SVHC Status: Part contains an SVHC (manufacturer information)
Approvals/Compliance: CCC, CE, FCC class A, UL
