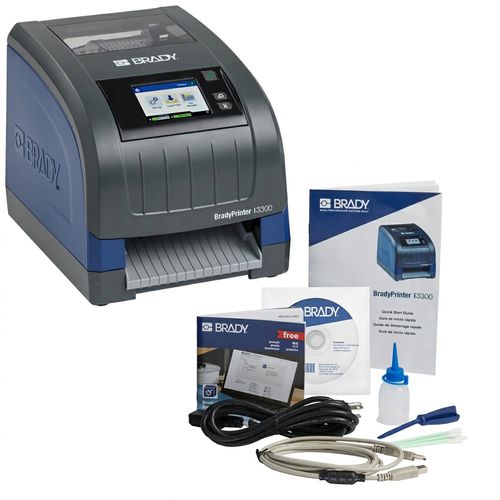

Thermal transfer printer I3300-C-UK-W-BWS

for labelsbarcode labellabel

Product Overview
The BradyPrinter i3300 industrial label printer delivers fast, mid‑volume identification printing with simple drop‑in labels and ribbons, no calibration and minimal waste.

Featured benefits

• Wi‑Fi connectivity for easy data input from multiple sources
• Designed for mid‑volume facility identification: wires, panels, safety and facility labels
• Print Smart technology prints reliably from the first label, including sleeves and small labels
• Quick drop‑in label rolls and ribbons for tool‑free changeovers in about 20 seconds
• Supports 825+ parts and 70+ material options for facility‑wide identification
• Includes a license for Brady Workstation suite (Product & Wire Identification, Safety & Facility Identification, or Lab Identification)

Key Features

• Continuous vs Die Cut Labels: Continuous, Custom, Die‑cut
• Applications: Asset tracking; Barcode labeling; Circuit board labeling; Component and equipment labeling; Data & telecommunications; Electrical labeling; Facility identification; Hazard communication; Inventory & inspection; Laboratory labeling; Lean and 5S; Pipe and valve marking; Warehouse marking; Wire and cable labeling
• Colour Capability: Monocolour
• Max. Label Width: 107.95 mm
• Print Technology: Thermal Transfer
• Recommended Usage per Day: 3000
• Resolution: 300 dpi
• Stand Alone Printing: Peripheral

Key characteristics
Article Number: 322888
Order Reference: i3300-C-UK-W-BWS
Total Qty per Pack: 1 Piece(s) / Pack
Minimum Order Quantity: 1
Brand: Brady®
Trade Name: BradyPrinter i3300
Ribbon Series: B30 Series
Additional Information: For Wire ID and small OEM labels: 1000 labels/day; For Safety labels: approx. 600 (50.80 x 101.60 mm) labels/day or 300 larger labels/day; Operational Hours: 8 hours / 5 days; throughput depends on label size and content

Dimensions
Size - Width (mm): 228.60 mm
Size - Height (mm): 241.30 mm
Size - Depth (mm): 304.80 mm
Weight (kg): 5.22 kg
Display Size: 88.90 mm
Minimum Label Height (mm): 6.35 mm
Dimensions: 228.60 mm (W) x 241.30 mm (H) x 304.80 mm (D)

Material Characteristics
Materials Supported: FreezerBondz™ Polyester; Heat‑shrink Polyolefin; High Temperature PVDF shrink sleeves; Magnetic Polyester; Metal‑detectable Polyester; Metallic; Non‑metal Polyester; Metallised Polyester (with/without overlaminate); Nylon Cloth; Paper; Phosphorescent Polyester; Polyester; Polyimide; Polyolefin; Polypropylene; PVF; Reflective Tape; Self‑laminating Polyester/Vinyl; StainerBondz™ Polyester; Static Dissipative Polyester; Tamper‑evident Metallised Polyester; Vinyl; Vinyl Cloth
Colour: Blue, Grey

Product Features
Auto Shut Off: Yes
Battery Type: Internal, not removable (shipped installed where applicable)
Built‑in Symbols: See Brady Workstation Software
Language Support: Bulgarian, Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Hungarian, Italian, Norwegian (Bokmål), Polish, Portuguese, Romanian, Russian, Slovak, Slovenian, Spanish, Swedish, Turkish
Calibration: No
Connectivity Options: Ethernet, USB, USB 2.0, Wi‑Fi
Custom Labels Available: Yes
Cutter Type: Auto Cutter
Display Type: Colour LCD Touchscreen
Hardware Options: Cleaning kit, cleaning swabs, cutter cleaning tool, media wipers, power cord, USB cable
Interface Type: PC, Touchscreen
Internal Memory Capacity: 512 MB RAM, 195 MB IFFS Flash
Barcode Symbologies: Code 128, Code 39, Code 93, EAN‑13, EAN‑8, UPC‑A, Aztec, Data Matrix, MicroPDF417, PDF417, QR code
Operating Humidity Range: 10%–85% RH (non‑condensing)
Operating Temperature: 10°C–40°C
Power Source: AC Adaptor
Power Supply Voltage: 100–240 V @ 50–60 Hz
Print Preview Feature: No
Printing Wizards: No
Shipped With Battery: No (unless specified)
Storage humidity: 15%–90% RH (non‑condensing)
Storage Temperature: -20°C–50°C
Units: Inches, Millimetres, Points
Cut Options Available: Cut at end of print jobs; Cut between labels; Full Cut

Printing Specifications
Print Technology: Thermal Transfer
Print Speed (mm/sec): 101.60 mm/s
Colour Capability: Monocolour
Resolution (dpi): 300 dpi
Display Resolution: 320 x 240 pixels
Max. Label Width (mm): 107.95 mm
Max. Liner Width (mm): 107.95 mm
Recommended Usage per Day: 3000
Max. Print Width (mm): 101.98 mm
Max. Print Length (mm): 1524.00 mm
Max. Roll Outer Diameter (mm): 109.00 mm
Maximum Label Thickness (mm): 1.77 mm
Text Sizes (pt): 4 - 250 pt
Font Styles: Arial, Courier New, Tahoma, Times New Roman, Trebuchet MS, Verdana
Hours of Operation: 8 hours/5 days
Number of Stock Parts: 800+ standard parts
On Screen Indicators: Data Reception, Error Messaging, Ethernet Status, Ribbon and label part number recognition, Ribbon Remaining, Supply Remaining, WiFi
Min. Label Width (mm): 6.35 mm
Programming Language: Brady Custom ZPL Emulation Software Solution, Brady Script Emulator for ZPL (accessory required)
Smart Cell: Yes

Compatibility
Continuous vs Die Cut Labels: Continuous, Custom, Die‑cut
Software Compatibility: Brady Workstation, Windows‑based driver for 3rd party software use
B‑Numbers supported: B‑342, B‑345, B‑348, B‑422, B‑423, B‑424, B‑425, B‑427, B‑428, B‑430, B‑432, B‑434, B‑435, B‑437, B‑438, B‑461, B‑472, B‑480, B‑481, B‑482, B‑483, B‑484, B‑486, B‑488, B‑489, B‑490, B‑492, B‑498, B‑499, B‑509, B‑526, B‑549, B‑551, B‑565, B‑569, B‑581, B‑584, B‑593, B‑595, B‑634, B‑717, B‑718, B‑719, B‑724, B‑727, B‑7425, B‑7563, B‑7569, B‑7597, B‑7598, B‑7599, B‑7641, B‑7642, B‑7643, B‑787, B‑8423, B‑854, B‑855
Compatible Media: B30‑, B30C‑, B30EP‑, B33‑, B33C‑, B33D‑, B33FP‑, B33FT‑, B33R‑ series

caractéristiques / spécifications techniques

• Print Technology: Thermal Transfer
• Resolution: 300 dpi
• Print Speed: 101.60 mm/s
• Max. Print Width: 101.98 mm
• Max. Label Width: 107.95 mm
• Max. Print Length: 1524.00 mm
• Roll Outer Diameter: 109.00 mm
• Maximum Label Thickness: 1.77 mm
• Min. Label Width / Height: 6.35 mm
• Dimensions (W x H x D): 228.60 x 241.30 x 304.80 mm
• Weight: 5.22 kg
• Power: 100–240 V @ 50–60 Hz (AC Adaptor)
• Connectivity: Ethernet, USB, USB 2.0, Wi‑Fi
• Internal Memory: 512 MB RAM, 195 MB IFFS Flash
• Recommended Usage per Day: 3000
• Warranty: 1 year
• Country of Origin: Malaysia
