Direct thermal printer I7500-300-C-UK

thermal transferbarcode labelfor labels

Description
High-performance industrial label printer designed for 76.2 mm core rolls. The Brady® i7500 delivers fast 40‑second consumable changeovers, automatic setup via LabelSense™ technology and minimised material waste. Standard 300 dpi printhead (field‑exchangeable 600 dpi) supports Direct Thermal and Thermal Transfer printing with robust connectivity for production environments.

Key benefits

• Automatic material detection and setup — no manual adjustments for speed, heat, offsets or sensor position
• Prints from the first label — eliminates wasted blank labels using LabelSense™
• i75-Series ribbons auto‑centre and the printer alerts on ink/material mismatch
• Supports 4,000+ i75-Series consumable parts in smart mode; also compatible with manual consumables
• Driverless 1-click setup with Brady WorkStation Basic; Windows drivers available for third-party software

Key features

• Printing technology: Direct Thermal and Thermal Transfer
• Resolution: 300 dpi (field‑exchangeable 600 dpi)
• Max print width: 105.66 mm; Max label width: 107.95 mm
• Max print length: 1.524 m; Recommended daily throughput: 7000 labels (estimate)
• Connectivity: Bluetooth, Ethernet, USB, Wi‑Fi
• Max print speed: up to 304.8 mm/s
• Display: 177.8 mm colour LCD touchscreen

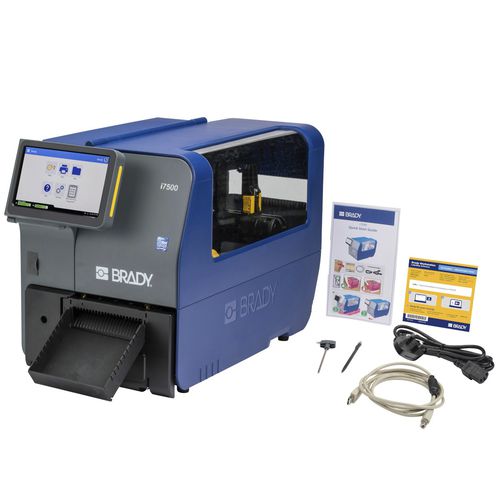

What's included

• Brady® i7500 300 dpi printer in cardboard box
• Heavy‑Duty Guillotine Auto Cutter (installed), cutter tray and T‑20 wrench
• Power cord (UK plug) and USB cable
• Brady WorkStation Basic software and QuickStart Guide
• Warranty: 2 years

Notes

• Supports both i75‑Series smart consumables (automated) and manual media operation
• Built‑in ZPL emulator and auto dpi conversion for ZPL workflows
• Auto‑centre ribbons and features designed to reduce label and ribbon waste

Technical specifications

• Brand: Brady®
• Model: i7500
• Part number: I7500-300-C-UK
• Article number: 323177
• Minimum order quantity: 1
• Quantity per pack: 1 Piece / Box
• Dimensions (W × H × D): 292.10 mm × 370.84 mm × 530.86 mm
• Weight: 18.14 kg
• Core diameter supported: 76.20 mm
• Display size: 177.80 mm (colour LCD touchscreen)
• Min label height: 3.18 mm; Min label width: 4.01 mm
• Max liner width: 114.05 mm; Max roll outer diameter: 215.90 mm
• Max label thickness: 1.956 mm; Max print width: 105.66 mm
• Print speed: up to 304.80 mm/s
• Internal memory: 512 MB RAM, 195 MB IFFS Flash
• Power: 100 - 240 V @ 50 - 60 Hz
• Operating hours: 24/7; Operating temperature: 10°C - 40°C; Operating humidity: 10% - 85% RH (non‑condensing)
• Supported media: Bulk, Continuous, Die‑cut, Custom; materials include polyester, vinyl, polyimide, polypropylene, nylon cloth, self‑laminating, tamper‑evident, metallic and specialised materials
• Media sensors: Black mark, Continuous, Gap, Notch
• Barcode symbologies: Code 39, Code 128, GS1‑128, EAN, UPC, Aztec, DataMatrix, QR Code, PDF417 and more
• Printing functions: Auto dpi conversion for ZPL, autocut (accessory), perforation (accessory), tear‑off print
• Cut options: Auto cutter with multiple modes (after job, after label row, after set or no cut)
• Hardware options/accessories: Cleaning swabs, I/O interface accessory, narrow width rollers, 300 dpi and 600 dpi printheads
• Warranty: 2 years; Compliance: CE, RoHS, REACH information as per manufacturer
