Laboratory labeler 7100-300-UK-BWS

continuous-motionbarcode labelbarcode

Product overview

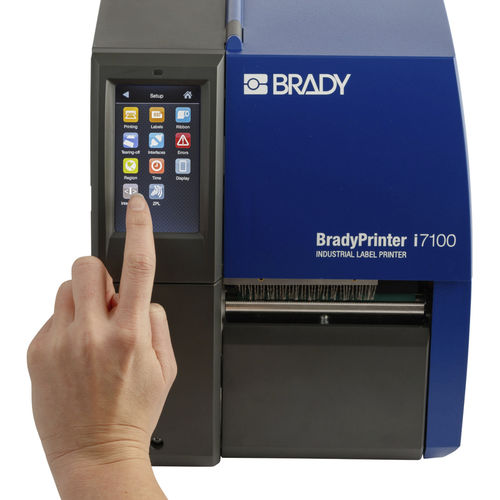

The BradyPrinter i7100 industrial thermal transfer benchtop printer delivers reliable high-volume printing for diverse materials across aerospace, defence, mass transit, electronics, automotive, logistics, electrical, voice/datacom and laboratory applications. It provides accurate printing on sleeves, tags, labels, tapes and cable markers.

Featured benefits

• Supports the widest range of materials, including hard-to-print substrates
• Peel configuration automatically removes labels from the liner for immediate application
• Prints ultra-sharp on labels down to 4 mm with high positional accuracy
• Engineered for thousands of labels per day in continuous operation
• Intuitive colour touch display for fast configuration and status monitoring
• Includes a licence for the Brady Workstation suite of choice (Product & Wire Identification, Safety & Facility Identification or Lab Identification)

Key features

• Applications: Barcode labelling, PCB labelling, component and equipment identification, data/telecom labelling, electrical labelling, inventory & inspection, laboratory labelling, wire & cable labelling
• Colour capability: Monochrome
• Resolution: 300 dpi
• Recommended daily usage: up to 7000 labels
• Connectivity: USB, Ethernet, Serial, I/O, Bluetooth (optional), Wi‑Fi (optional)
• Max. label width: 109.98 mm · Min. label width: 4.00 mm · Max. print length: 249.00 mm

Key characteristics
Article Number: 322870
Order reference: i7100-300-EU-BWS
Quantity per pack: 1 piece
Minimum order quantity: 1
Brand: Brady®
Trade name: BradyPrinter i7100
Ribbon series: Heatex, R4300, R4400, R4500, R4700, R4900, R6000HF, R6100, R6200, R6300, R6400, R6600, R6700, R6800
Additional info: Supplied with a pre-installed anti-static brush to dissipate electrostatic charge after printing
Country of origin: Germany

Dimensions
Width: 251.46 mm
Height: 289.56 mm
Depth: 459.74 mm
Weight: 10 kg
Display size: 52 x 92 mm
Minimum label height: 4–6 mm (depends on configuration)

Material characteristics
Supported materials (selected): heat-shrink polyolefin sleeves, high-temp PVDF sleeves, FreezerBondz™ polyester, metallised polyester, nylon cloth, direct thermal paper, polyester (self-laminating, overlaminate variants), polypropylene, vinyl and other specialised materials
Colour (product): Blue, Grey

Product features

• Battery: coin/button cell (shipped installed)
• Media sensors: gap, black mark, notch, reflective
• Display: Colour LCD touchscreen
• Internal memory: 256 MB RAM, 50 MB IFFS Flash; SD up to 512 GB
• Supported languages: multiple UI languages including English, French, German, Spanish, Italian and others
• Hardware options: auto cutter, rewinder, extended peel plate, narrow-width rollers, I/O interface accessories, WLAN USB stick with antenna, cleaning swabs

Printing specifications
Print technology: Thermal transfer, direct thermal
Resolution: 300 dpi
Print speed: up to 150 mm/s
Max. print width: 105.66 mm · Max. label width: 109.98 mm · Max. print length: 249.00 mm
Max. roll outer diameter: 204.98 mm · Max. label thickness: 1.00 mm
Barcode symbologies: extensive 1D/2D support (Code 128, Code 39, GS1-128, EAN/UPC, QR, Data Matrix, PDF417, MaxiCode, etc.)

Compatibility
Media types: bulk, continuous, custom, die-cut labels
Software compatibility: Brady Workstation; Windows drivers for 3rd-party software
Programming: built-in ZPL emulator, abc Basic Compiler, JScript, SAP integration, database connector

What's included
i7100 printer in carton, EU power cord, 2 empty ribbon cores, USB cable, product CD with driver, multilingual user manual, configuration guide (EN), printed user manual (EN), licence for Brady Workstation suite
Warranty: 2 years

Compliance
UNSPSC: 45101519
Approvals: CE, FCC Class A, UL, CCC
RoHS: compliant with 2011/65/EU (with exemptions where applicable)
REACH: candidate list information as provided by manufacturer

caractéristiques / spécifications techniques

• Model: BradyPrinter i7100
• SKU / Ref: i7100-300-EU-BWS
• Print resolution: 300 dpi
• Max. print speed: 150 mm/s
• Max. print width (operational): 105.66 mm
• Supported label width: 4.00 mm – 109.98 mm
• Max. print length: 249.00 mm
• Dimensions (W x H x D): 251.46 x 289.56 x 459.74 mm
• Weight: 10 kg
• Power: AC adaptor 100–240 V @ 50–60 Hz
• Operating temp: 0°C – 40°C
• Recommended usage: up to ~7000 labels/day
• Warranty: 2 years
