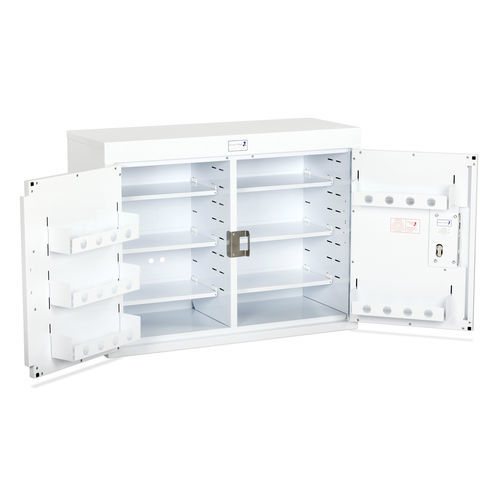

Security cabinet PC series

supplydispensingkey

FEATURES

• Independently tested to BS 2881:1989 (Security Level One) for storage of medicines in healthcare premises
• BS 3621 anti-pick & drill five-pin key-retaining cylinder lock (supplied with three keys)
• Adjustable and removable internal shelves (190mm deep) and door shelves (75mm deep)
• Unique Hospital Metalcraft Ltd key profile offering 250,000 differs
• Compatible with CLIQ® electronic integration for high-security mechanical disc cylinders and keys, enabling real-time remote management
• Optional digital push-button lock (does not conform to BS 2881:1989)
• 12V DC LED lighting/warning system (model dependent) with volt-free contact for connection to lighting or nurse-call systems; requires 100–240V~ 50–60Hz 0.3A mains. Supplied fitted with UK 3-pin plug. CE marked
• Lighting transformer housing adds 105mm to overall height
• 0.9mm mild steel welded construction
• Rear mounting holes provided (fixings not included)
• Modular design for interchange with HTM 63 storage systems
• Compatible with range of CD cabinets for storage of Controlled Drugs

STANDARD COLOURS

• Paint - White

AVAILABLE CODES / DIMENSIONS
PC836 | Shelves & Door Shelves, Double Door Cabinet, Single Lock - With Light | 800 x 300 x 600mm
PC836/LX | Shelves & Door Shelves, Double Door Cabinet, Single Lock - No Light | 800 x 300 x 600mm
PC839/LX | Shelves & Door Shelves, Double Door Cabinet, Single Lock - No Light | 800 x 300 x 900mm
PC1036 | Shelves & Door Shelves, Double Door Cabinet, Single Lock - With Light | 1000 x 300 x 600mm
PC1036/LX | Shelves & Door Shelves, Double Door Cabinet, Single Lock - No Light | 1000 x 300 x 600mm
PC1039 | Shelves & Door Shelves, Double Door Cabinet, Single Lock - With Light | 1000 x 300 x 900mm
PC1039/LX | Shelves & Door Shelves, Double Door Cabinet, Single Lock - No Light | 1000 x 300 x 900mm

TECHNICAL SPECIFICATIONS

• Compliance: BS 2881:1989 (Security Level One) for medicine storage
• Locking: BS 3621 five-pin cylinder (anti-pick & drill), key-retaining; optional digital push-button lock available
• Keying: Unique Hospital Metalcraft Ltd key profile (250,000 differs)
• Construction: 0.9mm mild steel welded construction
• Shelves: Adjustable & removable internal shelves (190mm deep); door shelves 75mm deep
• Mounting: Rear mounting holes provided (fixings not included)
• Lighting (model dependent): 12V DC LED with volt-free contact; mains 100–240V~ 50–60Hz 0.3A; transformer housing adds 105mm to height
• Modularity: Designed for interchange with HTM 63 storage systems
• Controlled Drugs: Compatible with CD cabinet range
