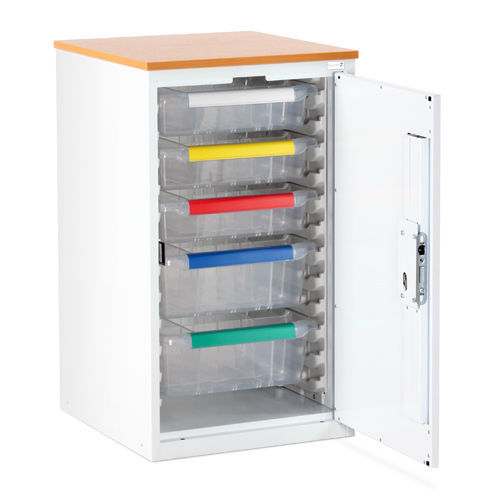

Key cabinet MC series

securityfor medicinemedicine

FEATURES

• Independently tested to BS2881: 1989 (Security Level One) Specification for Cupboards for the Storage of Medicines in Health Care Premises
• BS3621 anti-pick & drill, key retaining five pin cylinder lock (supplied with three keys)
• Available with either plastic trays or shelves
• Key profile unique to Hospital Metalcraft Ltd, offering 250,000 differs
• Compatible with CLIQ®, integrating electronics into high security mechanical disc cylinders & keys, combining electronic security & remote management in real time
• Optional Digital Push Button Lock (does not conform to BS 2881: 1989)
• Work surface supplied with 870mm cupboards (removable to assist with positioning under existing worktops)
• 0.9mm mild steel welded construction
• Modular design allows for easy interchange with HTM 63 storage systems

DIMENSIONS (w x d x h)

• Overall Dimensions - 870mm: 500 x 536 x 870mm
• Trays:
  • Shallow Tray (internal): 355 x 405 x 100mm
  • Deep Tray (internal): 355 x 405 x 150mm

STANDARD COLOURS

• Paint - White

PLASTIC TRAYS

• Interchangeable with the Caretray range (870mm cupboards supplied with 3 x 100mm and 2 x 150mm trays)
• Translucent, impact-resistant trays & dividers, smooth surfaces & radiused edges to assist cleaning (compatible with steam cleaning / high temperature machine washing)
• Trays feature an integral handle with a plastic clip-on label cover (coloured label strips supplied: white, blue, green, yellow & red)
• Each tray supplied with 2 x long & 2 x short dividers
• Maximum load per tray: 5 kg

SHELVES

• Adjustable at 50mm increments
• 870mm Cupboards fitted with 3 x shelves (when specified with shelves)
• Suitable for the storage of MDS frames (870mm Cupboards - 6 x frames if required)

OPTIONS / ACCESSORIES

• Joining Kits
• Digital Push Button Lock (optional)
• Dividers for trays

PRODUCT CODES & VARIANTS (table)
Code | Description | Overall Dimensions (W x D x H)
MC/R/870/3S2D | 870mm High, Plastic Trays | 500 x 536 x 870mm
MC/R/870/FS | 870mm High, Shelves | 500 x 536 x 870mm
MC/L/870/3S2D | 870mm High, Plastic Trays | 500 x 536 x 870mm
MC/L/870/FS | 870mm High, Shelves | 500 x 536 x 870mm

CARACTÉRISTIQUES / SPÉCIFICATIONS TECHNIQUES

• Construction: 0.9 mm mild steel, welded
• Security testing: BS2881:1989 (Security Level One)
• Locking: BS3621 five pin cylinder (anti-pick & drill), key retaining; supplied with three keys
• Electronic option: CLIQ® compatible (electronic management & high security mechanical disc cylinders) and optional digital push button lock (note: digital lock does not conform to BS2881)
• Work surface: Supplied with 870mm cupboards; removable for installation
• Modularity: Designed for interchangeability with HTM 63 storage systems
• Tray specification: shallow 355 x 405 x 100 mm (internal), deep 355 x 405 x 150 mm (internal); max tray load 5 kg; trays compatible with high temperature cleaning
• Shelf adjustability: 50 mm increments; typical 870mm cupboard shelf count: 3
• Colour: Standard paint finish white
