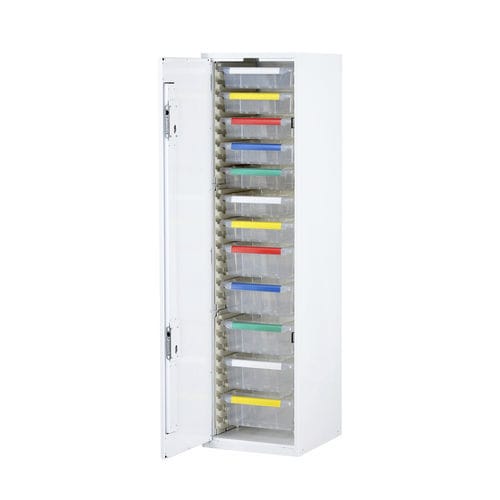

Security cabinet MC/R/1870/7S5D

keymedicinehospital

FEATURES

• Independently tested to BS2881:1989 (Security Level One) for storage of medicines in healthcare premises
• BS3621 anti-pick & drill, key-retaining five-pin cylinder lock (supplied with three keys)
• Available configurations:

  • Plastic trays
  • Shelves
  • Shelves & dividers
• Key profile unique to Hospital Metalcraft Ltd — up to 250,000 key differs
• CLIQ® compatible for electronic integration with high-security mechanical cylinders and keys
• Optional digital push-button lock (does not conform to BS2881:1989)
• 0.9 mm mild steel welded construction
• Modular design compatible with HTM 63 storage systems

DIMENSIONS (w x d x h)

• Overall dimensions: 500 x 536 x 1870 mm
• Trays:

  • Shallow tray internal: 355 x 405 x 100 mm
  • Deep tray internal: 355 x 405 x 150 mm

STANDARD COLOURS

• Paint: White

PLASTIC TRAYS

• Interchangeable with the Caretray range
• 1870 mm cupboards: 7 x 100 mm (shallow) and 5 x 150 mm (deep) trays
• Translucent, impact-resistant trays and dividers; smooth surfaces and radiused edges for cleaning (compatible with steam cleaning and high-temperature machine washing)
• Integral handle with clip-on plastic label cover (label strips supplied: white, blue, green, yellow, red)
• Each tray supplied with 2 long and 2 short dividers
• Maximum load per tray: 5 kg

SHELVES

• Shelves adjustable at 50 mm increments
• 1870 mm cupboards: 8 shelves
• Suitable for MDS frames where required: 1870 mm cupboards — 16 frames

SHELVES & DIVIDERS

• Shelves adjustable at 50 mm increments
• 100 mm high removable dividers adjustable at 25 mm increments
• 1870 mm cupboards: 8 shelves and 16 dividers

VARIANTS (Code | Description | Overall Dimensions)
MC/R/1870/7S5D | 1870mm High, Plastic Trays | 500 x 536 x 1870mm
MC/R/1870/FS | 1870mm High, Shelves | 500 x 536 x 1870mm
MC/R/1870/FSD | 1870mm High, Shelves & Dividers | 500 x 536 x 1870mm
MC/L/1870/7S5D | 1870mm High, Plastic Trays | 500 x 536 x 1870mm
MC/L/1870/FS | 1870mm High, Shelves | 500 x 536 x 1870mm
MC/L/1870/FSD | 1870mm High, Shelves & Dividers | 500 x 536 x 1870mm


TECHNICAL SPECIFICATIONS

• Security: BS2881:1989 (Security Level One) compliance
• Lock: BS3621 anti-pick & drill, key-retaining five-pin cylinder (3 keys supplied)
• Optional lock: digital push-button (does not conform to BS2881:1989)
• CLIQ® compatible for electronic integration with high-security cylinders/keys
• Material: 0.9 mm mild steel, welded construction
• Modular design compatible with HTM 63 systems
• Footprint: 500 x 536 x 1870 mm (W x D x H)
• Tray internal sizes: Shallow 355 x 405 x 100 mm; Deep 355 x 405 x 150 mm
• Tray configuration (1870 mm cupboard): 7 shallow (100 mm) & 5 deep (150 mm) trays
• Tray load capacity: 5 kg per tray
• Shelf and divider adjustability: shelves 50 mm increments; removable 100 mm dividers adjustable at 25 mm increments
• Key profile unique to Hospital Metalcraft Ltd — up to 250,000 key differs
