Security cabinet PC539/MDS

dispensingkeyfor medicine

Features

• Independently tested to BS 2881:1989 (Security Level One) specification for cupboards for the storage of medicines in health care premises
• BS 3621 anti-pick & drill, key-retaining five-pin cylinder lock (supplied with three keys)
• Rear hooks support frames for the blister pack Monitored Dosage System (MDS)
• Unique Hospital Metalcraft Ltd key profile providing up to 250,000 differs
• Compatible with CLIQ® for electronic integration into high-security mechanical cylinders and keys
• Optional digital push-button lock (does not conform to BS 2881:1989)
• 12 V DC LED lighting/warning system (model dependent) with volt-free contact for connection to light or nurse-call systems; requires 100–240 V~, 50/60 Hz, 0.3 A mains; supplied with UK 3-pin plug; CE marked
• Lighting transformer housing increases overall height by 105 mm
• 0.9 mm mild steel welded construction
• Mounting holes provided in rear panel (fixings not included)
• Modular design allows interchange with HTM 63 storage systems

Standard colours

• Paint – White

Options / Accessories

• Sloping top – Blister Pack (MDS)
• Remote light box
• Buzzer alarm
• Suited locks
• Digital push-button lock

Variants / Options Table
PC539/MDS | Blister Pack (MDS), With Light - 4 x Frames | 500 x 300 x 900 mm
PC539/MDS/LX | Blister Pack (MDS), No Light - 4 x Frames | 500 x 300 x 900 mm
PC539/LH/MDS | Blister Pack (MDS), With Light - 4 x Frames (left hinge) | 500 x 300 x 900 mm
PC539/LH/MDS/LX | Blister Pack (MDS), No Light - 4 x Frames (left hinge) | 500 x 300 x 900 mm

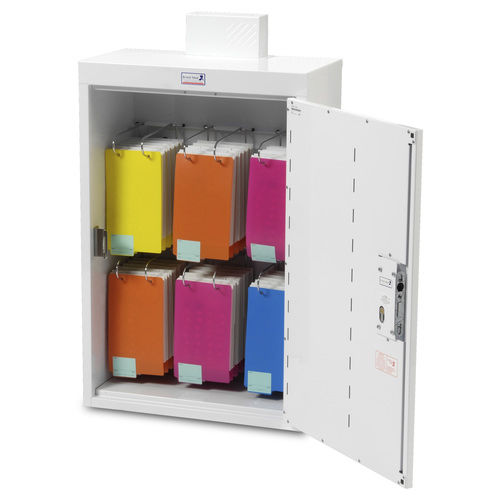

PC639/MDS | Blister Pack (MDS), With Light - 6 x Frames | 600 x 300 x 900 mm
PC639/MDS/LX | Blister Pack (MDS), No Light - 6 x Frames | 600 x 300 x 900 mm
PC639/LH/MDS | Blister Pack (MDS), With Light - 6 x Frames (left hinge) | 600 x 300 x 900 mm
PC639/LH/MDS/LX | Blister Pack (MDS), No Light - 6 x Frames (left hinge) | 600 x 300 x 900 mm

Technical specifications

• Compliance: BS 2881:1989 (Security Level One) for medicine storage cupboards
• Lock: BS 3621 five‑pin cylinder (key retaining); optional digital push-button or CLIQ® electronic integration
• Material: 0.9 mm mild steel, welded construction
• Lighting: 12 V DC LED system (model dependent); requires 100–240 V~, 50/60 Hz, 0.3 A mains; transformer housing adds 105 mm to overall height
• Mounting: fixing holes in rear panel (fixings not included)
• Compatibility: modular design for interchange with HTM 63 storage systems
• Keying: unique Hospital Metalcraft Ltd key profile with extensive differs
• Available footprints: 500 x 300 x 900 mm and 600 x 300 x 900 mm depending on frame count
