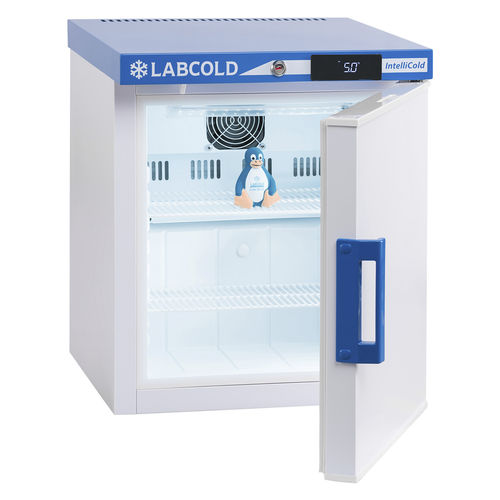

Pharmacy refrigerator IntelliCold®for vaccinesfor drugsbench-top
Add to favorites
Compare this product
Characteristics
- Applications
- for pharmacies, for vaccines, for drugs
- Configuration
- undercounter, bench-top
- Door type
- with glass door
- Cooling system
- with forced air cooling
- Defrost mode
- automatic defrost
- Power source
- electric
- Capacity
Max.: 150 l
(39.63 gal)Min.: 36 l
(9.51 gal)- Temperature range
Max.: 8 °C
(46.4 °F)Min.: 2 °C
(35.6 °F)- Width
45 cm, 60 cm
(17.7 in, 23.6 in)- Depth
51 cm, 60 cm
(20 in, 24 in)- Height
53.8 cm, 83.5 cm
(21.2 in, 32.9 in)
Description
Overview
Designed for the secure storage of vaccines and pharmaceuticals. Compliant with Department of Health Green Book guidance, General Pharmaceutical Council standards and Royal College of Veterinary Surgeons guidelines. Configurations include bench top, under-bench, wall-mounted and free-standing. Operating range +2°C to +8°C. Option for a second (wandering) probe for in-cabinet temperature monitoring.
Features
DIMENSIONS (W x D x H)
Solid door options:
450 x 510 x 538 mm (36 Litres)
450 x 510 x 740 mm (66 Litres)
600 x 600 x 835 mm (150 Litres)
Glass door options:
600 x 600 x 835 mm (150 Litres)
Models / Variants (code | description | express delivery | overall dimensions)
Header: Code | Description | Express Delivery | Overall Dimensions (W x D x H)
5RLDF0119 | Solid Door, Bench / Wall Mounting* - CAM Lock | ✓ | 450 x 510 x 538 mm
5RLDF0219 | Solid Door, Bench / Wall Mounting* - CAM Lock | | 450 x 510 x 740 mm
5RLDF0519 | Solid Door, Under Bench - CAM Lock | | 600 x 600 x 835 mm
5RLDG0519 | Glass Door, Under Bench - CAM Lock | | 600 x 600 x 835 mm
5RLDF0119DIGILOCK | Solid Door, Bench / Wall Mounting* - Digital Push Button | | 450 x 510 x 538 mm
5RLDF0219DIGILOCK | Solid Door, Bench / Wall Mounting* - Digital Push Button | | 450 x 510 x 538 mm
5RLDF0519DIGILOCK | Solid Door, Under Bench - Digital Push Button | | 600 x 600 x 835 mm
5RLDG0519DIGILOCK | Glass Door, Under Bench - Digital Push Button | | 600 x 600 x 835 mm
Standard colours
Technical specifications
Designed for the secure storage of vaccines and pharmaceuticals. Compliant with Department of Health Green Book guidance, General Pharmaceutical Council standards and Royal College of Veterinary Surgeons guidelines. Configurations include bench top, under-bench, wall-mounted and free-standing. Operating range +2°C to +8°C. Option for a second (wandering) probe for in-cabinet temperature monitoring.
Features
- IntelliCold® touch screen controller
- Automatic 24/7 temperature and fridge operation data logging (micro-SD card required)
- Min / max temperature display and recording
- Displays temperature from both probes
- High / low temperature alarm
- Door open alarm
- Mains failure alarm (requires batteries)
- Alarm battery back-up
- Internal LED light
- Access port and remote alarm contacts
- Fan-assisted cooling
- Off-cycle automatic defrost
- Low GWP environmentally friendly refrigerant
- Self-closing doors with door-open alarm
- Available locking options:
- CAM Lock — supplied with two keys
- Digital push-button lock — programmable 4-digit code
- Adjustable shelves
- Micro-SD card (optional)
- UKAS traceable calibration service (optional)
- Repeat alarm (optional)
DIMENSIONS (W x D x H)
Solid door options:
450 x 510 x 538 mm (36 Litres)
450 x 510 x 740 mm (66 Litres)
600 x 600 x 835 mm (150 Litres)
Glass door options:
600 x 600 x 835 mm (150 Litres)
Models / Variants (code | description | express delivery | overall dimensions)
Header: Code | Description | Express Delivery | Overall Dimensions (W x D x H)
5RLDF0119 | Solid Door, Bench / Wall Mounting* - CAM Lock | ✓ | 450 x 510 x 538 mm
5RLDF0219 | Solid Door, Bench / Wall Mounting* - CAM Lock | | 450 x 510 x 740 mm
5RLDF0519 | Solid Door, Under Bench - CAM Lock | | 600 x 600 x 835 mm
5RLDG0519 | Glass Door, Under Bench - CAM Lock | | 600 x 600 x 835 mm
5RLDF0119DIGILOCK | Solid Door, Bench / Wall Mounting* - Digital Push Button | | 450 x 510 x 538 mm
5RLDF0219DIGILOCK | Solid Door, Bench / Wall Mounting* - Digital Push Button | | 450 x 510 x 538 mm
5RLDF0519DIGILOCK | Solid Door, Under Bench - Digital Push Button | | 600 x 600 x 835 mm
5RLDG0519DIGILOCK | Glass Door, Under Bench - Digital Push Button | | 600 x 600 x 835 mm
Standard colours
- Exterior: White / Blue
- Interior: White
Technical specifications
- Intended application: Secure storage of vaccines and pharmaceuticals
- Operating temperature range: +2°C to +8°C
- Temperature monitoring: Dual-probe (wandering probe option) with min/max display and recording
- Controller: IntelliCold® touch screen with data logging (micro-SD card slot)
- Alarms: High/low temperature, door open, mains failure (battery required); repeat alarm available
- Cooling: Fan-assisted
- Defrost: Off-cycle automatic
- Refrigerant: Low GWP environmentally friendly refrigerant
- Lighting: Internal LED
- Security: CAM lock (two keys) or programmable 4-digit digital push-button lock
- Accessories / options: Access port & remote alarm contacts, micro-SD card, UKAS traceable calibration, repeat alarm
- Mounting: Bench top, under-bench, wall fitting or free-standing (integral wall mounting brackets included on relevant models)
- Shelving: Adjustable shelves provided
