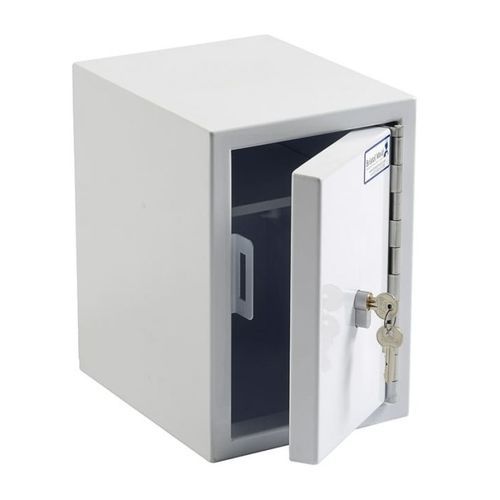

Security cabinet CD series

keymedicationnarcotics

Product overview
Controlled Drug Cabinets range designed to exceed statutory requirements for storage of controlled drugs (The Misuse of Drugs (Safe Custody) Regulations 1973) with multiple size and shelf options. Constructed in 1.5mm mild steel with seamless welded joints; security features and finish suitable for hospital and clinical environments.

Features

• Designed to exceed The Misuse of Drugs (Safe Custody) Regulations 1973 for storage of controlled drugs (except CD045 & CD145)
• BS 3621 anti-pick & drill, key-retaining six-pin cylinder lock (supplied with 2 keys & identification card)
• Key profile unique to Hospital Metalcraft Ltd (approximately 250,000 differs per profile)
• CLIQ® compatible: integrates electronic control with high-security mechanical cylinders and keys for electronic access management
• Optional micro-switch for connection to remote lighting or nurse call systems (available for CD905)
• Optional 12V DC LED lighting/warning system with volt-free contact for external light / nurse call integration (requires 100–240V~, 50–60Hz, 0.3A mains; supplied with UK 3-pin plug; CE marked)
• Lighting transformer casing adds 105mm to overall height
• Mounting holes provided in rear (fixings not included)
• Adjustable and removable shelves
• Security of models CD005, CD010 & CD015 can be enhanced by installing inside a Drug & Medicine Cabinet
• Modular design allows interchange with HTM 63 storage systems

Standard Colours

• Paint – White

Variants / Codes / Key Dimensions
Code | Description | Express Delivery | Overall Dimensions (W x D x H)
CD005 | Controlled Drug Cabinets, R/H Door, 1 Shelf - Compatible with CD910 Lighting / Warning System (Optional) | | 250 x 270 x 300mm
CD010 | Controlled Drug Cabinets, R/H Door, 1 Shelf - Compatible with CD910 Lighting / Warning System (Optional) | Yes | 335 x 270 x 300mm
CD015 | Controlled Drug Cabinets, R/H Door, 2 Shelves - Compatible with CD910 Lighting / Warning System (Optional) | | 335 x 270 x 550mm
CD020 | Controlled Drug Cabinets, R/H Door, 2 Shelves - Compatible with CD910 Lighting / Warning System (Optional) | Yes | 500 x 300 x 550mm
CD025 | Controlled Drug Cabinets, R/H Door, 3 Shelves - Compatible with CD910 Lighting / Warning System (Optional) | | 500 x 300 x 850mm
CD030 | Controlled Drug Cabinets, R/H Door, 3 Shelves - Compatible with CD911 Lighting / Warning System (Optional) | | 500 x 450 x 850mm
CD035 | Controlled Drug Cabinets, R/H Door, 4 Shelves - Compatible with CD911 Lighting / Warning System (Optional) | | 500 x 450 x 1250mm
CD045 | Controlled Drug Cabinets, R/H Door, 6 Shelves - Compatible with CD914 Lighting / Warning System (Optional) | | 500 x 450 x 1900mm
CD110 | Controlled Drug Cabinets, L/H Door, 1 Shelf - Compatible with CD910 Lighting / Warning System (Optional) | | 335 x 270 x 300mm
CD115 | Controlled Drug Cabinets, L/H Door, 2 Shelves - Compatible with CD910 Lighting / Warning System (Optional) | | 335 x 270 x 550mm
CD120 | Controlled Drug Cabinets, L/H Door, 2 Shelves - Compatible with CD910 Lighting / Warning System (Optional) | | 500 x 300 x 550mm
CD125 | Controlled Drug Cabinets, L/H Door, 3 Shelves - Compatible with CD910 Lighting / Warning System (Optional) | | 500 x 300 x 850mm
CD130 | Controlled Drug Cabinets, L/H Door, 3 Shelves - Compatible with CD911 Lighting / Warning System (Optional) | | 500 x 450 x 850mm
CD135 | Controlled Drug Cabinets, L/H Door, 4 Shelves - Compatible with CD911 Lighting / Warning System (Optional) | | 500 x 450 x 1250mm
CD145 | Controlled Drug Cabinets, L/H Door, 6 Shelves - Compatible with CD914 Lighting / Warning System (Optional) | | 500 x 450 x 1900mm

Options / Accessories

• Warning light system (optional lighting / warning)
• Micro-switch for remote lighting / nurse call integration
• Buzzer alarm / local audible alarm options

Technical specifications

• Compliance: Designed to exceed The Misuse of Drugs (Safe Custody) Regulations 1973 (except CD045 & CD145)
• Security: BS 3621 anti-pick & drill six-pin cylinder, key-retaining
• Keying: Unique Hospital Metalcraft Ltd key profile (approx. 250,000 differs)
• Electronic option: CLIQ® compatible (electronic integration with mechanical cylinders and keys)
• Lighting/warning: Optional 12V DC LED system with volt-free contact; mains requirement 100–240V~, 50–60Hz, 0.3A (supplied with UK 3-pin plug)
• Construction: 1.5mm mild steel, seamless welded
• Mounting: Rear mounting holes provided (fixings not included)
• Shelving: Adjustable and removable shelves
• Modularity: Interchangeable with HTM 63 storage systems
• Variants: Multiple CDxxx codes covering right-hand and left-hand door variants, 1 to 6 shelf options with dimensions as listed above
