Key cabinet PC536

securityfor medicinewall-mounted

Overview

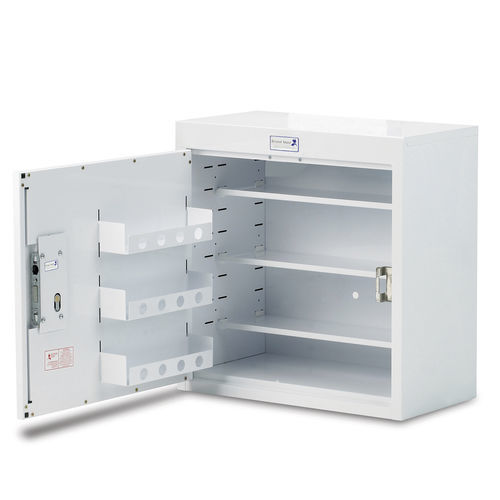

• Range of single-door medicine cabinets (models PC536, PC539, PC636, PC639) with internal shelves and door shelves. Available in multiple heights and configurations (with/without internal LED light, left-hand/right-hand, LX/LH options).

FEATURES

• Independently tested to BS 2881:1989 (Security Level One) for medicine storage in healthcare premises.
• BS 3621 anti-pick & drill, key-retaining five-pin cylinder lock (supplied with three keys).
• Adjustable and removable internal shelves (190 mm deep) and door shelves (75 mm deep).
• Unique key profile by Hospital Metalcraft Ltd providing 250,000 differs.
• Compatible with CLIQ® — integrates electronics into high-security mechanical disc cylinders and keys for combined electronic security and remote management.
• Optional digital push-button lock (note: does not conform to BS 2881:1989).
• Optional 12 V DC LED lighting / warning system (model dependent) with volt-free contact for connection to external light or nurse-call systems. Requires 100–240 V ~, 50/60 Hz, 0.3 A mains supply. Supplied with UK 3-pin plug. CE marked and compliant with low voltage directives 73/23/EEC & 89/336/EEC.
• Lighting transformer housing increases overall height by 105 mm.
• 0.9 mm mild steel welded construction with rear mounting holes (fixings not included).
• Modular design for easy interchange with HTM 63 storage systems.
• Compatible with cabinets for storage of controlled drugs; suitable options and accessories available.

STANDARD COLOURS

• Paint — White

Options / Variants (code | description | express delivery | overall dimensions W x D x H)
PC536 | Shelves & Door Shelves, Single Door Cabinet - With Light | Yes (model dependent) | 500 x 300 x 600 mm
PC536/LX | Shelves & Door Shelves, Single Door Cabinet - No Light | — | 500 x 300 x 600 mm
PC536/LH | Shelves & Door Shelves, Single Door Cabinet - With Light (LH) | — | 500 x 300 x 600 mm
PC536/LH/LX | Shelves & Door Shelves, Single Door Cabinet - No Light (LH/LX) | — | 500 x 300 x 600 mm
PC539 | Shelves & Door Shelves, Single Door Cabinet - With Light | — | 500 x 300 x 900 mm
PC539/LX | Shelves & Door Shelves, Single Door Cabinet - No Light | — | 500 x 300 x 900 mm
PC539/LH | Shelves & Door Shelves, Single Door Cabinet - With Light (LH) | — | 500 x 300 x 900 mm
PC539/LH/LX | Shelves & Door Shelves, Single Door Cabinet - No Light (LH/LX) | — | 500 x 300 x 900 mm
PC636 | Shelves & Door Shelves, Single Door Cabinet - With Light | Yes (model dependent) | 600 x 300 x 600 mm
PC636/LX | Shelves & Door Shelves, Single Door Cabinet - No Light | — | 600 x 300 x 600 mm
PC636/LH | Shelves & Door Shelves, Single Door Cabinet - With Light (LH) | — | 600 x 300 x 600 mm
PC636/LH/LX | Shelves & Door Shelves, Single Door Cabinet - No Light (LH/LX) | — | 600 x 300 x 600 mm
PC639 | Shelves & Door Shelves, Single Door Cabinet - With Light | — | 600 x 300 x 900 mm
PC639/LX | Shelves & Door Shelves, Single Door Cabinet - No Light | — | 600 x 300 x 900 mm
PC639/LH | Shelves & Door Shelves, Single Door Cabinet - With Light (LH) | — | 600 x 300 x 900 mm
PC639/LH/LX | Shelves & Door Shelves, Single Door Cabinet - No Light (LH/LX) | — | 600 x 300 x 900 mm

Technical specifications

• Standards: BS 2881:1989 (Security Level One) for medicine storage; BS 3621 anti-pick & drill lock standard.
• Locking: Five-pin cylinder, key-retaining; unique Hospital Metalcraft Ltd key profile (250,000 differs); optional digital push-button or CLIQ® electronic integration available.
• Construction: 0.9 mm mild steel, welded construction; rear mounting holes provided; modular design for HTM 63 interchangeability.
• Shelves: Adjustable & removable internal shelves 190 mm deep; door shelves 75 mm deep.
• Lighting (where fitted): 12 V DC LED with volt-free contact for external systems; mains supply 100–240 V ~, 50/60 Hz, 0.3 A; CE marked; transformer housing adds 105 mm to overall height.
• Compatibility: Suitable for storage of controlled drugs; compatible accessories include remote light box, buzzer alarm, digital push-button lock and compatible locking systems.
