Security cabinet PC series

keyfor medicinemedicine

Product

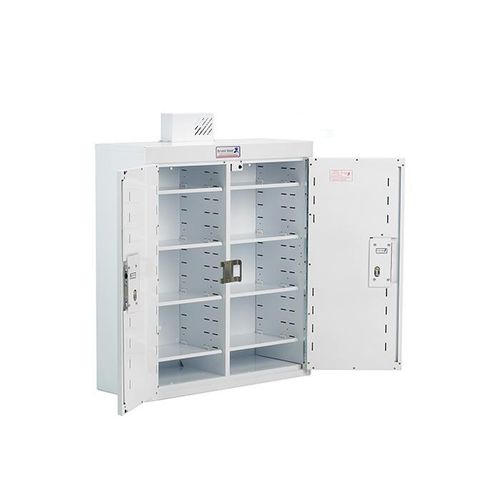

Drug & medicine cabinet with internal shelves and door shelves; double-door design; each door fitted with a lock. Available with or without internal LED lighting (model dependent).

Key features

• Independently tested to BS 2881:1989 (Security Level One) for cupboards for the storage of medicines in health care premises
• BS 3621 anti-pick & drill key-retaining five-pin cylinder lock (supplied with three keys)
• Adjustable and removable internal shelves (190 mm deep) and door shelves (75 mm deep)
• Unique Hospital Metalcraft Ltd key profile offering 250,000 differs
• Compatible with CLIQ® for electronic integration of mechanical cylinders and remote management
• Optional digital push-button lock (non-conformant to BS 2881:1989)
• Optional 12 V DC LED lighting/warning system with volt-free contact for connection to light or nurse-call systems; mains 100–240 V~, 50–60 Hz, 0.3 A; supplied with UK 3-pin plug; CE marked
• Lighting transformer housing adds 105 mm to overall height
• 0.9 mm mild steel welded construction
• Pre-drilled mounting holes in rear panel (fixings not included)
• Modular design for interchange with HTM 63 storage systems
• Compatible with CD cabinet range for controlled drugs storage

Standard colours

• Paint – White

Variants / Options
PC836/IND | Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - With Light | 800 x 300 x 600 mm
PC836/IND/LX | Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - No Light | 800 x 300 x 600 mm
PC839/IND | Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - With Light | 800 x 300 x 900 mm
PC839/IND/LX | Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - No Light | 800 x 300 x 900 mm
PC1036/IND | Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - With Light | 1000 x 300 x 600 mm
PC1036/IND/LX | Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - No Light | 1000 x 300 x 600 mm
PC1039/IND | Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - With Light | 1000 x 300 x 900 mm
PC1039/IND/LX | Shelves & Door Shelves, Double Door Cabinet, Each Door Fitted with a Lock - No Light | 1000 x 300 x 900 mm

Technical specifications

• Compliance: Tested to BS 2881:1989 (security level one); locks conform to BS 3621 (five-pin cylinder)
• Locking: Key-retaining 5‑pin cylinder; unique Hospital Metalcraft Ltd key profile (250,000 differs); optional CLIQ® electronic integration; optional digital push-button lock (non-BS2881)
• Construction: 0.9 mm mild steel welded construction; modular for HTM 63 interchange
• Shelves: Adjustable & removable shelves 190 mm deep; door shelves 75 mm deep
• Lighting: 12 V DC LED lighting/warning system (model dependent) with volt-free contact; mains 100–240 V~, 50–60 Hz, 0.3 A; transformer housing adds 105 mm
• Mounting: Pre-drilled rear mounting holes (fixings not supplied)
• Colour: Paint – White
• Compatibility: Compatible with CD cabinet range and accessories for remote light and alarm options
