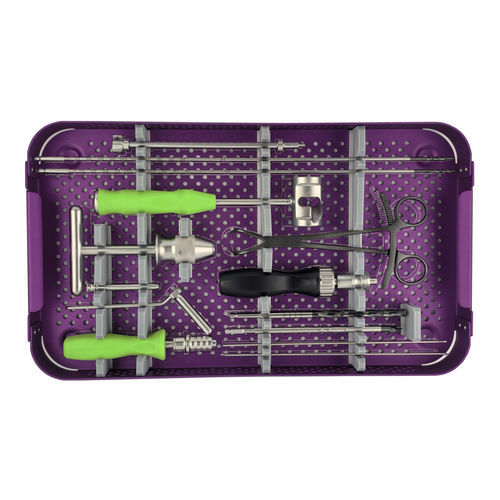

Traumatology instrument kit

radius fracture surgerydistal fibula fracture surgerycustomizable

Description
This surgical instrument set is designed for use with ulna, radius and fibula locking intramedullary nails. The set groups all instruments required for intraoperative fixation and guidance of locking nails into a single kit. Handles and the instrument box can be produced in different materials and shapes according to customer requirements. Instruments are manufactured from medical-grade materials and produced under CE and FDA standards.

Set list

• 1. 8611.6538 — Guide Wire φ1.6×180
• 2. 8611.6238 — Guide Wire with Thread Tip φ1.6×180
• 3. 8860.5928 — Cannulated Awl
• 4. 8332.6278 — Reduction Forceps
• 5. 8995.0108 — Protecting Sleeve φ6.5×45
• 6. 8995.0208 — Wire Sleeve φ6.5–φ1.6×60
• 7. 8995.0308 — Proximal Cannulated Drill φ6.3–φ1.6
• 8. 8110.3038 — Quick Coupling Handle, T
• 9. 8861.8708 — Wire Pusher φ1.5–φ2.5
• 10. 8611.6588 — Guide Wire φ1.6×350
• 11. 8995.0408 — Depth Gauge φ1.6×350
• 12. 8995.0508 — Proximal Rigid Drill φ3.2
• 13. 8995.0608 — Proximal Rigid Drill φ3.8
• 14. 8995.0708 — Reduction Rod
• 15. 8995.0808 — Reduction Sleeve φ1.6
• 16. 8995.2108 — Handle
• 17. 8995.2208 — Connecting Screw M4
• 18. 8860.7608 — Wrench, small φ4.0
• 19. 8995.2308 — Ulna Guide Bar
• 20. 8995.2508 — Locking Bolt M5
• 21. 8995.2408 — Radius Guide Bar
• 22. 8995.2608 — Connecting Block for Radiographic Rod
• 23. 8995.2708 — Radiographic Rod
• 24. 8995.4108 — Locking Screw Guide φ8.0–φ5.2×75
• 25. 8995.4208 — Drill Sleeve φ5.2–φ2.5×88
• 26. 8995.4308 — Sleeve Pin φ2.5
• 27. 8012.5188 — Drill Bit φ2.5
• 28. 8220.2518 — Protector φ2.5-SW2.5
• 29. 8371.2508 — Wrench SW2.5
• 30. 8030.0518 — Depth Gauge (straight)
• 31. 8030.0528 — Depth Gauge (hook)
• 32. 8043.3058 — Locking Screw Tap φ3.0
• 33. 8995.4508 — Drill Sleeve for Oblique Hole φ2.5
• 34. 8369.7598 — Screwdriver
• 35. 8363.7598 — Screwdriver, Star
• 36. 8995.4608 — Adaptor M4–φ6
• 37. 8860.8628 — Sliding Hammer
• 38. —
• 39. — Instrument Box

Technical specifications

• Application: Instrument set for ulna, radius and fibula locking nails.
• Contents: Comprehensive set including guide wires, cannulated awl, reduction instruments, drills, sleeves, depth gauges, taps, screwdrivers, guide bars, radiographic rod and instrument box (see full set list above).
• Materials & customization: Manufactured from medical-grade materials; handles and instrument box can be customized in material and shape per customer requirements.
• Standards: Produced under CE and FDA.
