Ankle arthroscopy instrument kit

customizable

Product overview

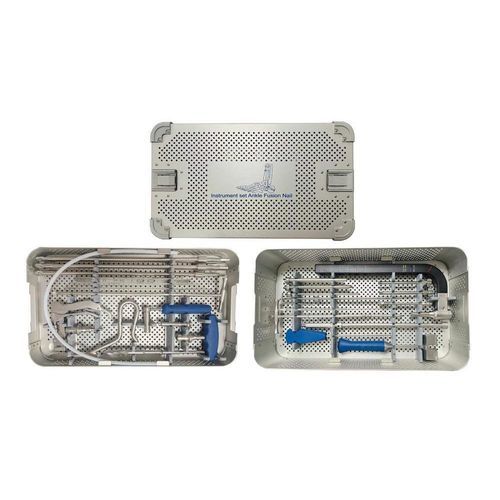

This ankle fusion locking nail instrument set is the flexible reamer variant designed for ankle arthrodesis procedures. The set provides instruments required for preparation, reaming, drilling and fixation and is compatible with multiple intramedullary nail systems. Materials, connectors and the instrument case can be customized to customer requirements. Instruments are manufactured according to CE and FDA applicable standards.

Set list

• 1 - Template - 9860.9013 - 1 - pcs
• 2 - Threaded guide wire φ3.2×300 - 9613.9224 - 2 - pcs
• 3 - Threaded guide wire φ3.2×343 - 9613.9225 - 2 - pcs
• 4 - Protect sleeve φ12.5 - 9860.9280 - 1 - pcs
• 5 - Guide sleeve - 9860.9285 - 1 - pcs
• 6 - Cannulated Awl - 9860.9515 - 1 - pcs
• 7 - Proximal cannulated drill φ12.5/φ3.2 - 9860.9458 - 1 - pcs
• 8 - Adaptor - 9110.9802 - 1 - pcs
• 9 - Quick coupling handle - 9110.9330 - 1 - pcs
• 10 - Reduction rod - 9861.9420 - 1 - pcs
• 11 - Guide wire holder - 9861.9512 - 1 - pcs
• 12 - Guide wire with ball tip φ2.5/φ4.0/680 - 9972.9540 - 2 - pcs
• 13 - Flexible reamer φ9 - 9988.9001 - 1 - pcs
• 14 - Flexible reamer φ10 - 9988.9002 - 1 - pcs
• 15 - Flexible reamer φ11 - 9988.9003 - 1 - pcs
• 16 - Flexible reamer φ12 - 9988.9004 - 1 - pcs
• 17 - Flexible reamer φ13 - 9988.9005 - 1 - pcs
• 18 - Handle - 9901.9113 - 1 - pcs
• 19 - Connect bolt M8×1/SW11 - 9861.9205 - 2 - pcs
• 20 - Wrench SW11 - 9860.9715 - 1 - pcs
• 21 - Hammer Guide, M8×1/φ10/φ4.0 - 9860.9642 - 1 - pcs
• 22 - Sliding Hammer - 9860.9842 - 1 - pcs
• 23 - Lock Sleeve φ14/φ11.7*110 - 9862.9512 - 2 - pcs
• 24 - Drill sleeve φ8.1/φ4.0 - 9863.9532 - 2 - pcs
• 25 - Trocar φ4.0 - 9864.9001 - 2 - pcs
• 26 - Drill bit φ4.0×300 - 9014.9012 - 3 - pcs
• 27 - Stopper - 9220.9402 - 1 - pcs
• 28 - Wrench SW3.0 - 9371.9300 - 1 - pcs
• 29 - Measuring ruler - 9861.9356 - 1 - pcs
• 30 - Locking screwdriver SW4.5, T handle - 9869.9072 - 1 - pcs
• 31 - Locking Screwdriver SW4.5 - 9378.9450 - 1 - pcs
• 32 - Locking Screwdriver, SW3.5 - 9379.9370 - 1 - pcs
• 33 - Instrument box - 9451.9813 - 1 - pcs

Technical specifications

• Set type: Ankle fusion locking nail instrument set (flexible reamer instrument set variant)
• Compatibility: Designed to work with different intramedullary nail systems
• Contents: 33 instruments and accessories listed above
• Key components: templates, threaded guide wires, cannulated awl, proximal cannulated drill, flexible reamers (φ9–φ13), handle, sliding hammer, drill bits, locking screwdrivers, instrument box
• Materials & customization: Materials, connectors and instrument box can be customized per customer requirements
• Standards: Manufactured in compliance with CE and FDA where applicable

Indications & intended use

• Intended for surgical procedures related to ankle arthrodesis and fixation using intramedullary nails
• Provides instruments for guidewire placement, canal preparation, reaming, drilling and locking screw insertion
• Suitable for use in operating rooms and orthopedic surgical suites

Customization & regulatory

• Custom options: alternative materials, connector types and instrument case configurations available on request
• Packaging: supplied in a dedicated instrument box for sterilization and OR storage
• Regulatory: conformity to CE and FDA standards indicated; customers should verify local regulatory requirements
