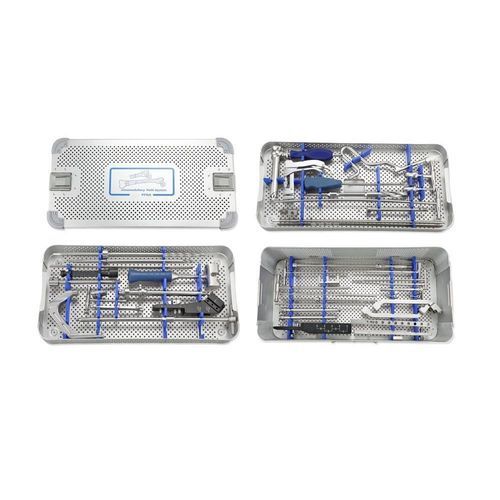

Femoral fracture surgery instrument kit Gamma

traumatologycustomizable

Overview
This instrument set is designed for use with Gamma nails, including Intertan, PFN and Meta-Tan locking nail systems. Connection sizes can be adapted to match specific Gamma nail interfaces. Handles, box layouts and materials are customizable to customer requirements. Instruments are manufactured to medical standards and meet CE and FDA requirements, intended for orthopedic intramedullary fixation procedures.

Set contents
Complete set of 68 instruments. Main components include:

• Measure ruler, protectors and sleeves
• Cannulated awls, cannulated reamers and drills (φ3.2–φ13) and reamer heads (φ8.5–φ13)
• Guide wires (φ3.2×400, φ4.0×300), Krischner wires and wire guides
• Handles, quick coupling handle and adaptors (M12×1.5)
• Depth gauges, sliding hammer and protector elements
• Distal/proximal guide bars and distal targeting devices (left/right, long nail options)
• Locking bolts, screwdrivers (SW7.0, T SW3.5, SW4.5) and lag screw instruments (drivers/extractors)
• Drill bits (φ4.0, φ5.2), flexible reamer shaft and cleaning pin

Technical specifications

• Brand: Centrau Medical Instrument
• Commercial denomination: Gamma Nail ( Intertan / PFN ) Instrument Set
• Scope: Instrument set for Gamma / Intertan / PFN / Meta-Tan locking nails
• Material and handle/box: Customizable materials and handle/box shapes per customer requirements
• Compliance: CE and FDA
• Number of listed instruments/components: 68 items (S.N. 1–68)
• Includes: reamer heads (φ8.5–φ13), cannulated drills and reamers, guide wires, sleeves, adaptors, handles, depth gauges, target devices and other locking nail instrumentation
