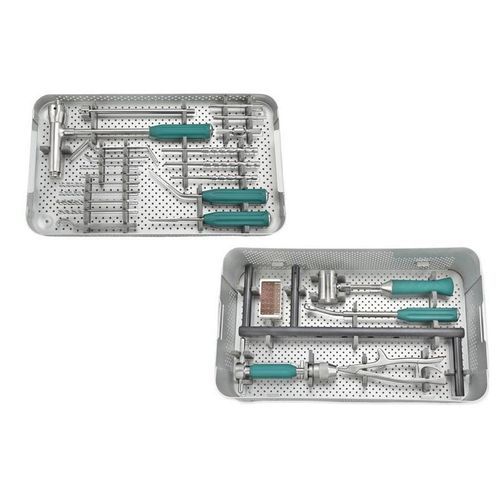

Orthopedic surgery instrument kit

traumatology

Overview
This instrument set is designed for intramedullary fixation of long-bone fractures using elastic and locking nails. The set provides instruments for drilling, nail insertion, locking, reduction and extraction, compatible with nails and rod components referenced below.

Intended use / Indications

• Surgical fixation of diaphyseal and metaphyseal long-bone fractures requiring elastic or locking intramedullary nails.
• To be used by qualified orthopedic surgeons in appropriate surgical settings.

Set composition

• 1. 8023.4058 — Drill Guide 3.2–4.5
• 2. 8012.7218 — Drill Bit φ2.7
• 3. 8013.2218 — Drill Bit φ3.2
• 4. 8014.5218 — Drill Bit φ4.5
• 5. 8860.7618 — Chuck Wrench
• 6. 8959.0408 — Rod Pusher
• 7. 8959.0508 — Rod Pusher (oblique)
• 8. 8959.0558 — Rod Pusher φ1.5–φ3.0 (oblique)
• 9. 8959.0118 — Awl (Straight)
• 10. 8959.0218 — Awl (Curved)
• 11. 8959.1108 — Cap Wrench Handle
• 12. 8959.1218 — Cap Wrench φ1.5–φ2.5
• 13. 8959.1228 — Cap Wrench φ3–φ4.5
• 14. 8860.6518 — Rod Nut M10×1
• 15. 8860.6768 — Rod M10×1
• 16. 8860.7608 — Wrench, small φ4.0
• 17. 8310.1048 — Screw Holder Forceps
• 18. 8959.1508 — F-shape Reset Rod
• 19. 8177.0188 — Clipper φ1.5–φ4.0
• 20. 8177.0188 — Clipper φ1.5–φ4.0
• 21. 8115.0118 — Quick Chuck
• 22. 8860.8308 — Sliding Hammer
• 23. — Instrument Box

Technical specifications

• Brand: Centrau Medical Instrument
• Commercial denomination (model): Elastic Nail Instrument Set
• Series: Trauma Instrument Set Series (Locking Nail Set)
• Key components and sizes: drill bits φ2.7, φ3.2, φ4.5; drill guide 3.2–4.5; rod pushers (straight and oblique) including φ1.5–φ3.0 variant; cap wrenches for φ1.5–φ2.5 and φ3–φ4.5; rod and rod nut M10×1; small wrench φ4.0; clippers φ1.5–φ4.0
• Set positions: 23 listed items including instruments for insertion, locking, reduction and extraction

Regulatory & packaging

• Instruments produced with high-quality materials and under FDA (as stated by the manufacturer).
• Supplied as a complete instrument set in the instrument box listed above.
• Sterilization and final packaging to be performed according to hospital protocol and applicable local regulations.
