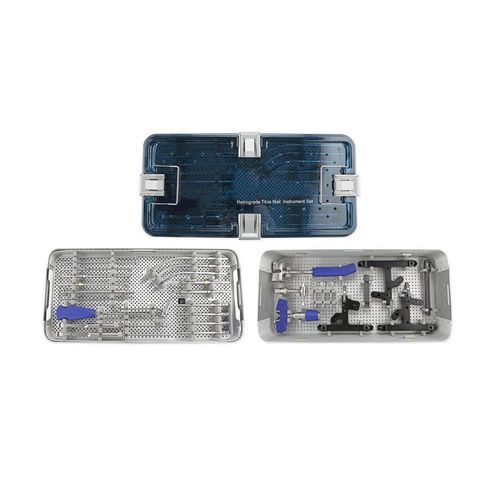

Tibial fracture surgery instrument kit

traumatologycustomizable

Overview
This instrument set is designed for the DTN retrograde tibial nail system and intended for procedures using distal retrograde tibia nails. Components, connectors and instrument cases can be customized to customer specifications. Instruments are manufactured from surgical-grade materials. Devices are provided with CE and FDA declarations where stated.

Set list

• 1 | 2081.61001 | Guide Wire φ2×180
• 2 | 1690.12091 | Wire Pusher
• 3 | 2081.62002 | Drill Guide
• 4 | 2081.62001-00 | Protecting Sleeve
• 5 | 2083.61001 | Proximal Rigid Reamer φ7.5
• 6 | 2083.61002 | Proximal Rigid Reamer φ8.5
• 7 | 2187.01041 | Quick Coupling Handle
• 8 | 2083.61011 | Reamer φ7.5
• 9 | 2083.61012 | Reamer φ8.5
• 10 | 2083.75001 | Trial φ7
• 11 | 2083.75002 | Trial φ8
• 12 | 2083.75003 | Trial φ8, long
• 13 | 2081.67001-00 | Target Device φ7
• 14 | 2081.67002-00 | Target Device φ8.0
• 15 | 2081.67003-00 | Target Device φ8.0, long
• 16 | 2081.72001 | Connecting Blot
• 17 | 1690.68001 | Sliding Hammer
• 18 | 2187.02060 | Wrench
• 19 | 2081.67005 | Lateral Target Device
• 20 | 2081.67004-00 | Lateral Guide Bar
• 21 | 2083.61021 | Drill Bit φ3.2
• 22 | 2083.61022 | Drill Bit φ2.8
• 23 | 2081.62001 | Outer Sleeve φ8-φ5.6-118
• 24 | 2081.62002 | Drill Sleeve φ5.6-φ3.3
• 25 | 2081.62003 | Trocar φ3.3
• 26 | 2081.62001 | Outer Sleeve, φ8-φ5.6-118
• 27 | 2081.62004 | Drill Sleeve φ5.6-φ2.9
• 28 | 2081.62005 | Trocar φ2.8
• 29 | 2081.63001-00 | Depth Gauge with straight tip
• 30 | 2081.63002-00 | Depth Gauge with hook tip
• 31 | 2083.67001 | Locking Screwdriver Shaft
• 32 | 2090.67001-00 | Locking Screwdriver
• 33 | 2081.72002 | Nail Extractor

Technical specifications

• Brand: Centrau Medical Instrument
• Commercial name (model): DTN Retrograde Tibial Nail Instrument Set
• Compatible system: distal retrograde tibia nails system
• Number of items in set: 33 (see set list above)
• Materials: surgical-grade instrument materials (customizable on request)
• Customization: materials, connectors and instrument boxes configurable per customer requirements
• Certifications: CE and FDA (as stated)
