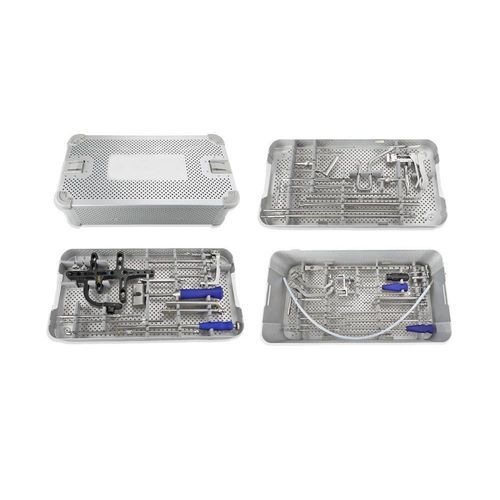

Humerus fracture surgery instrument kit

traumatologycustomizable

Overview
This multi humeral nail instrument set is designed for intramedullary fixation of the humerus. The set supports multiple humeral nail connection standards and allows selection of the appropriate connection sizes. Components can be configured to accommodate different nail designs and surgical workflows.

Set list

• 1 | 8860.1608 | Measure Ruler φ7-φ9.5×160-300
• 2 | 8611.5128 | Guide Wire φ1.5×150
• 3 | 8612.5148 | Guide Wire with Stopper φ2.5×200
• 4 | 8612.5118 | Guide Wire φ2.5×250
• 5 | 8860.2968 | Protecting Sleeve φ11.5×70
• 6 | 8110.8028 | Quick Coupling Adaptor φ8
• 7 | 8110.8018 | Quick Coupling Handle φ8
• 8 | 8212.6108 | Cannulated Trephine φ10
• 9 | 8860.5188 | Cannulated Awl φ3.5-φ10
• 10 | 8861.4518 | Wire Guide
• 11 | 8861.5128 | Wire Pusher
• 12 | 8972.6048 | Krischner Wire with Trocar Tip φ2.5-φ3.45-680
• 13 | 8971.9848 | Depth Gauge for Guide Wire with Ball Tip (L=680)
• 14 | 8988.0708 | Flexible Reamer Shaft φ7-φ2.5×420
• 15 | 8988.0728 | Flexible Reamer Shaft φ8-φ2.5×420
• 16 | 8988.0748 | Flexible Reamer Shaft φ9-φ2.5×420
• 17 | 8988.0768 | Flexible Reamer Shaft φ10-φ2.5×420
• 18 | 8992.3018 | Handle
• 19 | 8992.3028 | Connecting Blot M6-φ3.45-SW11
• 20 | 8860.7158 | Wrench SW11
• 21 | 8992.3168 | Hammer Guide M6-φ2.5-SW11
• 22 | 8860.8408 | Sliding Hammer
• 23 | 8992.3048 | Proximal Guide Bar
• 24 | 8861.0478 | Connecting Screw M6-SW5
• 25 | 8866.0128 | Positioning Rod Sleeve φ13-φ10×150
• 26 | 8866.0428 | Positioning Rod Drill Sleeve φ10-φ3.8×162
• 27 | 8866.0348 | Pin Sleeve φ3.8
• 28 | 8013.8218 | Drill Bit φ3.8×270
• 29 | 8223.3818 | Protector φ3.8
• 30 | 8861.3918 | Depth Gauge
• 31 | 8231.9328 | Countersink Drill φ8
• 32 | 8992.3278 | Screwdriver
• 33 | 8992.3288 | Locking Screw Positioning Drill Sleeve φ10-φ5.8
• 34 | 8992.3308 | Locking Screw Drill Sleeve φ5.8-φ2.8×62
• 35 | 8012.8138 | Drill Bit φ2.8×200
• 36 | 8223.2818 | Protector φ2.8
• 37 | 8121.2168 | Torque-limiting Screwdriver T15-1.5N.m
• 38 | 8369.7658 | Screwdriver T15
• 39 | 8866.0118 | Locking Screw Guide φ11-φ8.2×175
• 40 | 8866.0418 | Drill Sleeve φ8.2-φ3×187
• 41 | 8866.0338 | Pin Sleeve φ3.0
• 42 | 8013.0168 | Drill Bit φ3.0×300
• 43 | 8220.3028 | Protector φ3.0-SW3
• 44 | 8371.3008 | Wrench SW3.0
• 45 | 8861.3928 | Depth Gauge
• 46 | 8378.3538 | Screwdriver SW3.5 (quick change)
• 47 | 8379.3668 | Screwdriver SW3.5
• 48 | 8992.3068 | Distal Anterior Guide Bar
• 49 | 8992.3038 | Compress Blot M6-φ3.0-SW1
• 50 | 8992.3128 | Diatal Guide Bar
• 51 | 8013.8228 | Drill Bit, Flat Tip φ3.8
• 52 | 8992.3148 | Positioning Rod
• 53 | 8992.3138 | Locking Block
• 54 | 8992.3108 | Distal Target Device (left)
• 55 | 8992.3118 | Distal Target Device (right)
• 56 | 8861.0808 | Locking Blot M6-SW5
• 57 | 8371.5008 | Wrench SW5
• 58 | 8992.3158 | Positioning Rod
• 59 | 8992.3178 | Gauge for End Cap
• 60 | 8226.3518 | Compress Screw Holder SW3.5
• 61 | 8992.3188 | Extractor Rod
• 62 | | Instrument Box

Characteristics / technical specifications

• Brand: Centrau Medical Instrument
• Product: Multi Humeral Nail Instrument Set
• Application: For humeral nails; compatible with various humeral nail designs; adjustable connection sizes
• Customization: Material and shape of handles and instrument boxes can be manufactured to customer requirements
• Materials: Manufactured from high-quality surgical-grade materials
• Certifications: CE and FDA (as stated by manufacturer)
• Contents: Complete 62-item instrument set including guide wires, protective sleeves, quick coupling components, cannulated instruments, reamer shafts φ7–φ10, depth gauges, drill sleeves/bits, screwdrivers (including torque-limiting), target devices, extractor rod and instrument box
• Number of components: 62 (itemized above)
