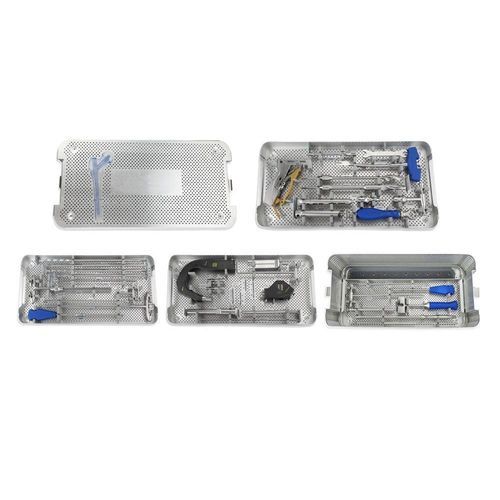

Femoral fracture surgery instrument kit Intertan

traumatologycustomizable

Overview
This 43-piece instrument set is designed for implantation, guidance and locking of Intertan nails and is compatible with various Gamma, PFN and Meta-Tan nail designs depending on connection sizes. The set can be adapted to customer requirements for handle materials, handle shapes and instrument box configuration. Instruments are produced under CE and FDA certifications.

Set list
1 | 8860.9208 | Protecting Sleeve φ17.5×140
2 | 8860.9209 | Adjustable Wire Sleeve φ3.2
3 | 8860.9206 | Sleeve Handle
4 | 8860.9413 | Proximal Cannulated Reamer φ17.5-φ3.2
5 | 8988.9430 | Proximal Cannulated Flexible Reamer Shaft φ17.5-φ3.2
6 | 8110.9801 | Quick Coupling Handle
7 | 8110.9802 | Quick Coupling Adaptor
8 | 8860.9555 | Cannulated Gouge
9 | 8973.9010 | Guide Wire (Trocar Tip & Round Tip) φ3-600
10 | 8861.9511 | Wire Pusher
11 | 8360.9515 | Handle
12 | 8360.9525 | Connecting Screw M11×1.5
13 | 8371.9651 | Universal Screwdriver, T SW6.5
14 | 8860.9653 | Adaptor M11×1.5
15 | 8860.9715 | Wrench SW11
16 | 8913.9103 | Depth Gauge 70mm-120mm
17 | 8936.9017 | Guide Block 130°
18 | 8936.9016 | Guide Block 125°
19 | 8936.9026 | Proximal Locking Screw Sleeve φ11.2-φ7.8
20 | 8911.9021 | Drill Guide φ3.2
21 | 8613.9225 | Guide Wire with Thread Tip φ3.2×343
22 | 8869.9037 | Slotted Box Screwdriver with T Handle
23 | 8910.9531 | Open Drill for Compression Screw φ7.8
24 | 8910.9541 | Drill for Compression Screw φ7.0
25 | 8911.9151 | Proximal Drilling Guide Sleeve 65mm-120mm
26 | 8910.9203 | Proximal Cannulated Drill φ11
27 | 8910.9455 | Proximal Cannulated Tap φ11
28 | 8869.9072 | Screwdriver for Compression Anti-Rotation Screw SW4.5
29 | 8869.9073 | Screwdriver for Compression Anti-Rotation Screw 5-40 UNC-2A
30 | 8910.9474 | Cannulated Holder for Lag Screw M5×0.8
31 | 8910.9463 | Lag Screwdriver M5×0.8
32 | 8910.9480 | Compress Nut M11×1
33 | 8379.9459 | Stable Screwdriver SW4.5
34 | 8860.9845 | Sliding Hammer φ10
35 | 8862.9016 | Distal Locking Screw Guide φ10.5
36 | 8863.9013 | Distal Locking Hole Drill Sleeve φ4.2
37 | 8864.9013 | Sleeve Pin φ4.2
38 | 8014.9313 | Drill Bit φ4.2
39 | 8913.9202 | Depth Gauge 20mm-110mm
40 | 8869.9074 | Screwdriver, T SW4.5
41 | 8869.9075 | Flexible Screwdriver SW4.5
42 | 8860.9652 | Adaptor M11×1.5
43 | | Instrument Box

Technical specifications

• Brand: Centrau Medical Instrument
• Model / commercial name: Intertan Nail
• Type: Instrument set for Gamma / Intertan / PFN / Meta-Tan nails (locking nail instrument set)
• Certifications: CE and FDA
• Customisation: handle materials, handle shapes and instrument box configurable per customer requirements
• Materials: instruments manufactured from specified surgical-grade materials (manufacturer description)
• Set content: 43 referenced instrument items (listed above)
• Intended use: instruments to assist implantation and locking of various gamma / Intertan / PFN / Meta-Tan nail designs
