Orthopedic surgery instrument kit

customizable

Overview
This flexible reamer instrument set is designed for use with locking intramedullary nail systems in orthopedic procedures. Components include NiTi flexible shafts and laser-cut stainless elements. Materials, connectors and the instrument box can be adapted to customer requirements. The set is manufactured under CE and FDA standards.

Set list
S.N. | Ref. Code | Description
1 | 2090.01081 | Reamer Head φ7.5
2 | 2090.01082 | Reamer Head φ8.0
3 | 1683.51011~1683.51024 | Reamer Head φ8.5~φ15
4 | 3390.11015 | Cannulated Quick Coupling Handle
5 | 1683.10011 | Flexible Reamer Shaft NiTi
6 | 1683.51005 | Flexible Reamer Shaft (laser cutting) φ7.3×420
7 | A02-24.1683.51051~A02-24.1683.51066 | Flexible Reamer Fixed Head (laser cutting)
8 | A02-24.1683.51067~A02-24.1683.51082 | Flexible Reamer Fixed Head

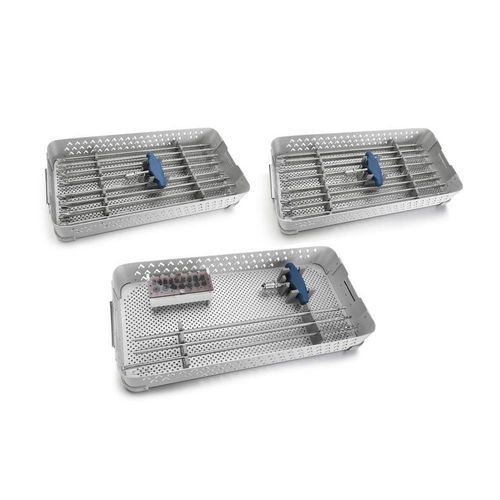

9 | | Instrument Box

Technical specifications

• Applicable system: Locking intramedullary nail systems (set compatible with multiple nail designs).
• Components included: Reamer heads (φ7.5, φ8.0, φ8.5–φ15), cannulated quick coupling handle, flexible reamer shafts (NiTi and laser-cut versions), flexible reamer fixed heads, instrument box.
• Materials: NiTi for flexible shafts; laser-cut stainless steel for shafts and fixed heads; other surgical-grade materials as specified.
• Customization: Materials, connectors and instrument box configuration can be customized per customer specifications.
• Regulatory: Manufactured to CE and FDA standards.
• Packaging: Supplied in an instrument box; box design and labeling available on request.
