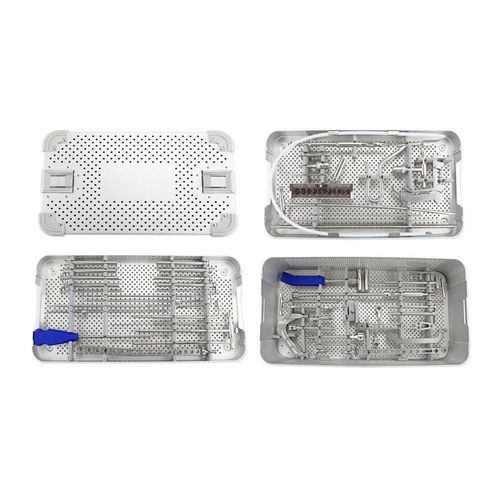

Femoral fracture surgery instrument kit

traumatologycustomizable

Overview
This instrument set is designed for femoral retrograde nailing procedures and is compatible with femoral retrograde nail systems.
Components, materials, connectors and instrument case configuration can be customized to customer requirements. Instruments are manufactured to comply with CE and FDA standards.

Set list
S.N. | Ref. Code | Description
1 | 8860.1958 | Measure Ruler φ9.5-φ12×200-400
2 | 8613.2248 | Guide Wire with Thread Tip φ3.2×400
3 | 8860.2438 | Adjustable Wire Sleeve φ3.2-φ14
4 | 8860.2428 | Protecting Sleeve φ14
5 | 8860.4318 | Proximal Cannulated Reamer φ3.2-φ14
6 | 8110.8018 | Quick Coupling Handle φ8
7 | 8110.8028 | Quick Coupling Adaptor φ8
8 | 8860.5118 | Cannulated Awl
9 | 8861.4108 | Wire Guide φ6.5-φ4
10 | 8861.5128 | Wire Pusher φ2-φ4
11 | 8972.5428 | Kirschner Wire with Trocar Tip φ2.5-φ4.0-1000
12 | 8459.0668 | Reamer Head Box φ8.5-φ13.5
13 | 8982.0858 | Reamer Head φ8.5
14 | 8982.0908 | Reamer Head φ9
15 | 8982.0958 | Reamer Head φ9.5
16 | 8982.1008 | Reamer Head φ10
17 | 8982.1058 | Reamer Head φ10.5
18 | 8982.1108 | Reamer Head φ11
19 | 8982.1158 | Reamer Head φ11.5
20 | 8982.1208 | Reamer Head φ12
21 | 8982.1258 | Reamer Head φ12.5
22 | 8982.1308 | Reamer Head φ13
23 | 8982.1358 | Reamer Head φ13.5
24 | 8982.0568 | Flexible Reamer Shaft φ2.5-φ8×500
25 | 8898.5118 | Handle
26 | 8861.2028 | Connecting Screw M10-SW6.5
27 | 8371.6568 | Screwdriver SW6.5
28 | 8861.2478 | Connecting Screw (long) M10-SW11
29 | 8860.7158 | Open Wrench SW11
30 | 8860.6058 | Adaptor M10-SW11-φ10
31 | 8860.6308 | Nail Extract Rod M10-SW11-φ10
32 | 8860.8248 | Sliding Hammer
33 | 8898.5128 | Proximal Guide Bar
34 | 8861.0198 | Locking Bolt M8×1-SW5
35 | 8371.5008 | Wrench SW5
36 | 8898.5238 | Distal Guide Bar 280-400
37 | 8861.0258 | Locking Bolt M8×1-SW5
38 | 8898.5048 | Distal Target Device
39 | 8898.5258 | Locking Block
40 | 8861.0818 | Locking Block M6
41 | 8898.5268 | Distal Guide Bar 200-260
42 | 8862.0218 | Positioning Rod Sleeve φ8.1-φ10-120
43 | 8864.0218 | Sleeve Pin φ8.1
44 | 8863.0218 | Drill Guide φ5.2-φ8.1-140
45 | 8015.2118 | Drill Bit φ5.2
46 | 8015.2188 | Drill Bit, Flat Tip φ5.2
47 | 8919.9618 | Positioning Rod φ8.1-φ5.2
48 | 8919.9158 | Locking Block
49 | 8865.0528 | Drill Guide φ8.1-φ4.0×150
50 | 8865.0238 | Sleeve Pin φ4.0×163
51 | 8865.0518 | Locking Screw Guide φ10-φ8.1×135
52 | 8014.0128 | Drill Bit φ4.0×300
53 | 8220.4028 | Protector φ4.0-SW3.0
54 | 8371.3008 | Wrench SW3.0
55 | 8861.3418 | Depth Gauge (L135)
56 | 8861.6098 | Positioning Rod φ8.1-φ4.0
57 | 8869.0728 | Screwdriver, T SW4.5-M3.0
58 | 8378.4508 | Screwdriver SW4.5
59 | 8865.0278 | Drill Guide φ8.6-φ3.5×150
60 | 8865.0288 | Sleeve Pin φ3.5×163
61 | 8865.0218 | Locking Screw Guide φ11-φ8.6×135
62 | 8379.4538 | Screwdriver SW4.5
63 | 8013.5128 | Drill Bit φ3.5×300
64 | 8220.3428 | Protector φ3.5-SW3.0

Technical specifications

• Brand: Centrau Medical Instrument
• Application: Femoral retrograde nail system
• Standards: CE and FDA
• Customizable: materials, connectors and instrument case per customer requirements
• Set composition: 64 items including measure rulers, guide wires, sleeves, reamers, drill guides, positioning rods, screws, wrenches and accessories (full list above)
