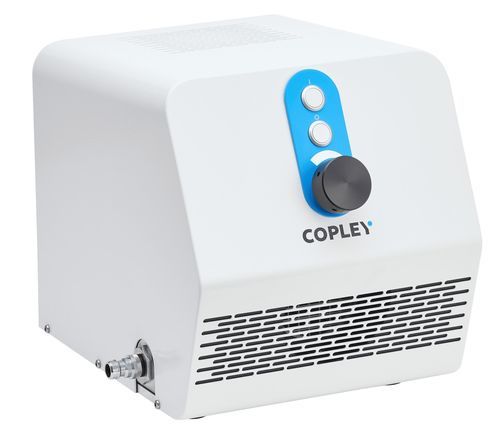

Nebulizer vacuum pump LCP7

medicalfor inhalersrotary vane

Overview
Designed for optimal operation at low flow rates, the Low Capacity Pump Model LCP7 is ideal for MDIs, nebulisers, ADIs and nasal products tested at 28.3 L/min. The flow rate can be adjusted between 0 and 133 L/min using the control valve on the front of the unit.

Key features

• Low maintenance
• Small unit footprint
• Advanced sound insulation
• Oil-free
• Left and right vacuum inlets – choose where to place pump in system
• Self-sealing compound carbon vanes continually adjust so that the pump maintains 'as new' efficiency throughout its service life

LCP7 Technical Specifications

• Type: Rotary vane
• Lubrication type: Dry (oil-free)
• Flow rate (adjustable): 0–133 L/min (optimal operation at low flow rates; typical test at 28.3 L/min)
• Max. flow (unrestricted): 133 L/min
• Max. sonic flow through NGI: N/A
• Max. vacuum level: <15 kPa
• Applications: MDIs, nebulisers, ADIs, nasal sprays, nasal aerosols, nasal powders
• Inlet options: Left and right vacuum inlets
• Dimensions (w x d x h): 300 x 360 x 300 mm
• Design features: Low maintenance; small footprint; advanced sound insulation; self-sealing compound carbon vanes for sustained efficiency
