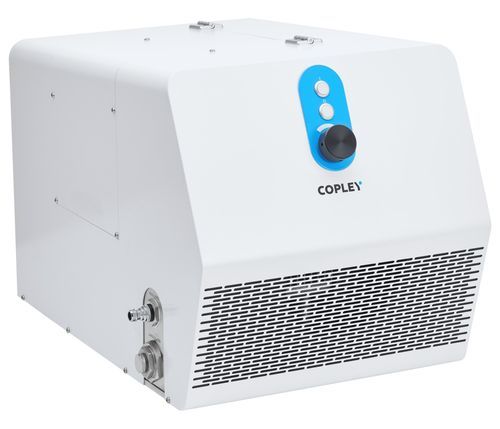

Filtration vacuum pump SCP7

for nebulizermedicalfor inhalers

Product overview The SCP7 is a rotary vane, oil‑lubricated vacuum pump providing a maximum unrestricted flow of 683 L/min and capable of delivering sonic flow through the Next Generation Impactor (NGI) up to 100 L/min (NGI, P3/P2 8 ±0.5). It is designed to serve as an alternative to using two HCP7 pumps for these conditions and supports regulated flow via a control valve (0–280 L/min) for MDI, nebuliser and nasal product testing.

Key features

• Oil‑lubricated rotary vane design
• Low‑maintenance construction
• Advanced sound insulation for noise mitigation
• Left and right vacuum inlet options for flexible system placement
• Dual filtration to minimise oil vapour in exhaust, suitable for laboratory use

Applications

• Dry Powder Inhalers (DPIs)
• Metered Dose Inhalers (MDIs)
• Nebulisers
• Aqueous Drug Inhalers (ADIs)
• Nasal product testing

Technical specifications

• Model: SCP7
• Type: Rotary vane pump
• Lubrication: Oil‑lubricated
• Maximum unrestricted flow: 683 L/min
• Maximum sonic flow through NGI (NGI, P3/P2 8 ±0.5): 100 L/min
• Flow control valve (regulated use for MDI, nebuliser, nasal testing): 0–280 L/min
• Maximum vacuum level: <0.1 kPa
• Vacuum inlet options: left and right
• Exhaust treatment: dual filtration to minimise oil vapour
• Noise reduction: advanced sound insulation
• Maintenance: low‑maintenance design
• Typical applications: MDIs, DPIs, nebulisers, ADIs, nasal products
• Dimensions (W x D x H): 480 x 690 x 460 mm
