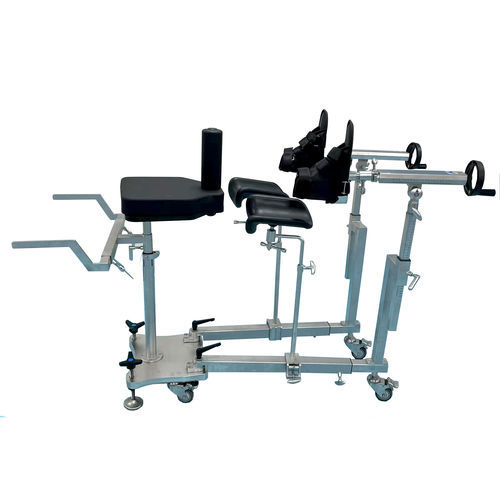

Knee surgery orthopedic extension device Q1

Main purpose: It is mainly used for traction, reduction and fixation of lower limbs and other orthopedic operations. During the operation, the patient's limbs can be placed in lateral and horizontal traction and internal and external abduction positions. Product description: - Its unique mechanical structure can be used with any type of operating table. - It is made of 304 stainless steel, the key angle adjustment part adopts the end tooth tightening process, the key parts for precision casting molding. - It can be used in any position of the C-arm, without dead angle and barrier free. - It can rotate 360° to facilitate positioning of various positions. - The column adopts fast locking device to save operation time and fast positioning. - The base is stable and reliable and equipped with locking casters, which can be quickly positioned and easy to move. Specifications: - Seat board lifting height: 850-1100mm - Two main support rods abduction: ≥220° - Horizontal displacement of traction mechanism: ≥550mm - Vertical displacement of traction mechanism: ≥380mm - Horizontal rotation angle of traction mechanism: 360° - Vertical rotation angle of traction mechanism: 180° - Traction shoe rotation angle: 360° - Traction stroke: ≥190mm - Leg support displacement: ≥490mm - Length of perineal column: ≥230mm - Outside diameter of perineal column: ≥80mm - Length of traction frame (adjustable): 1100mm-1650mm - Width of traction frame: 480mm Technical characteristics / specifications: - Compatible with any operating table - 304 stainless steel construction - Precision casting molding for key parts - 360° rotation for flexible positioning - Fast locking device for quick operation - Stable base with locking casters for mobility
