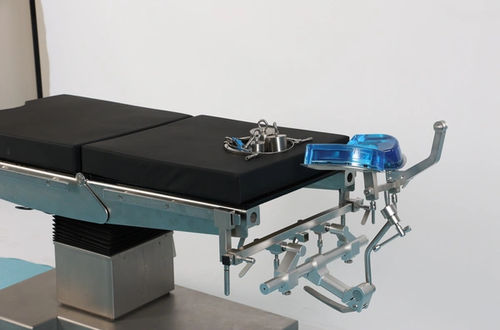

Operating table cervical rest Neck traction frame

Main purpose: - It is used for head support and traction during posterior cervical spine surgery. Product description: - There are a variety of size options, matching any brand operating bed, can also be customized for non-standard operating beds. - The neck traction frame can be adjusted arbitrarily according to the needs of the operation, and the two-point cranial traction arch is used to fix it in order to obtain the best head position. - The main body is made of 304 stainless steel precision machining, durable, to provide perfect stability for surgery. - The surface is treated by electrolysis and oxidation process, which is more wear-resistant and easy to clean and disinfect. - The head support can adjust the size distance, is made of polymer gel, soft texture, elastic close to human skin, can relieve local tissue pressure, reduce mental pressure, avoid iatrogenic injury. - By hanging different weights, the tractive force can be changed. Specifications: - Forward and backward movement distance: 300±10mm - Lifting distance: 300±10mm - Head support cushion spacing: 0-90mm - Longitudinal rotation: 170°±5° - Horizontal rotation: 360° - Installation center distance: 75-550mm Component: - A set of neck traction frame main body - A group of traction brackets - A group of traction ropes - A traction bow - Three kinds of weights: 0.5kg, 1kg, 2kg Head frame adapter: - The overall material is 304 stainless steel. It can be applied to different brands of operating table, and the insertion distance of side rail can be adjusted. The maximum width of the operating table (including the side rail) is 628mm. Net weight: 3150g±300g Technical Specifications / Features: - Material: 304 stainless steel - Surface treatment: Electrolysis and oxidation - Adjustable head support made of polymer gel - Compatible with various operating beds - Customizable for non-standard beds - Adjustable tractive force via different weights - Easy to clean and disinfect - Durable and stable construction
