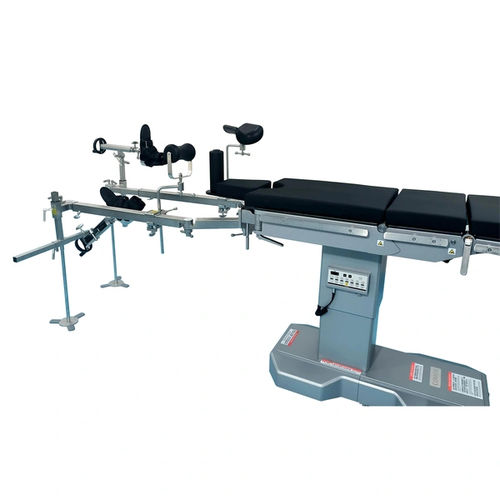

Orthopedic surgery support Q2

Main purpose: It is mainly used for traction, reduction and fixation of lower limbs and other orthopedic operations. During the operation, the patient's limbs can be placed in lateral and horizontal traction and internal and external abduction positions. - It is made of 304 stainless steel, the key angle adjustment part adopts the end tooth tightening process, the key parts for precision casting molding. - It adopts double joint design and has a telescopic extension rod, which can be converted from multiple angles to ensure a wide field of view during surgery. - It can be used in any position of the C-arm, without dead angle and barrier free. - It can rotate 360° to facilitate positioning of various positions. Specifications: - Extension rod (short) abduction: ≥180° - Extension rod (short) length: 310mm - Extension rod (long) abduction: ≥300° - Extension rod (long) length: 800mm - Horizontal displacement of traction mechanism: ≥650mm - Vertical displacement of traction mechanism: ≥380mm - Horizontal rotation angle of traction mechanism: 360° - Vertical rotation angle of traction mechanism: 180° - Traction shoe rotation angle: 360° - Traction stroke: ≥190mm - Leg support displacement: ≥650mm - The lifting distance of the support in the lateral position: ≥120mm - Length of perineal column: ≥230mm - Outside diameter of perineal column: ≥80mm - Traction frame length (adjustable): 1300-1950mm Optional accessories: - Traction bow - Lateral decubitus sitting board/bracket - Tibia scaffold - Transfer pad - Tibial traction attachment scaffold Technical characteristics / specifications: - Material: 304 stainless steel - Double joint design with telescopic extension rod - 360° rotation capability - Compatible with C-arm in any position - Precision casting molding for key parts - Adjustable traction frame length: 1300-1950mm
