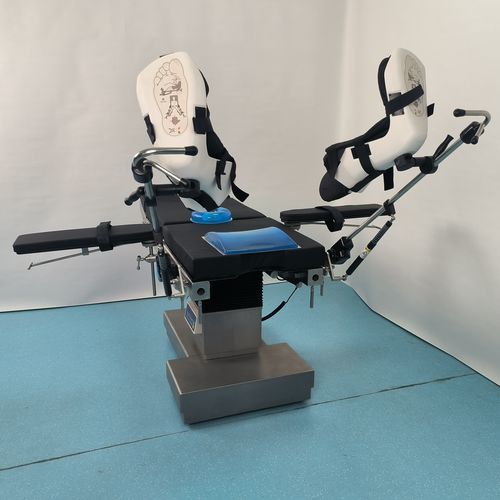

Operating table support Stirrup Shape Leg Fixator

Applicable departments: - General surgery, gynecology, urology - Commonly used in anal, urinary, salpingoscopy and other operations. Purpose: To fully expose the surgical field to facilitate the operation and avoid iatrogenic injury. Features: - Fast installation: Quick and convenient adjustment of lithotomy position, pneumatic assistance, single-person operation. - Prevention of compression: Innovatively adopts non-compression boot design, so that the patient is fully protected from complications. - Precise adjustment: The placement angle can be accurately adjusted, and quantitative display. - Aseptic protection: The angle of lithotomy position can be reset in the non-sterile area without destroying the sterile area. - Strong compatibility: Can be installed on any brand of operating table. Specifications: - Product weight: 11kg - Cantilever length: 1000mm - Support rod diameter: 20mm - Main handle diameter: 16mm - Small handle diameter: 13mm - Patient weight: less than 130kg - Vertical angle adjustment range of the cantilever: 110° - Cantilever horizontal angle adjustment range: maximum single-side abduction 25° - Leg support adjustment range: 310mm Component: - Stirrup leg frame fixator: 1pc (25*8mm/30*8mm Standard configuration) - Main bracket + riding boots: 1pc (Standard configuration) - Liner in sponge: 1pc (Standard configuration) - Transfer cart: 1pc (Optional configuration) - The in-gel liner: 1pc (Optional configuration) Technical characteristics / specifications: - Quick and convenient adjustment of lithotomy position - Pneumatic assistance for single-person operation - Non-compression boot design for patient safety - Accurate angle adjustment with quantitative display - Resettable lithotomy angle in non-sterile area - Compatible with any brand of operating table - Product weight: 11kg - Cantilever length: 1000mm - Support rod diameter: 20mm - Main handle diameter: 16mm - Small handle diameter: 13mm - Patient weight limit: <130kg - Vertical angle adjustment: 110° - Horizontal angle adjustment: max 25° abduction - Leg support adjustment: 310mm
