Operating table armrest carbon fiber
Add to favorites
Compare this product
Characteristics
- Applications
- for operating tables
- Other characteristics
- carbon fiber
Description

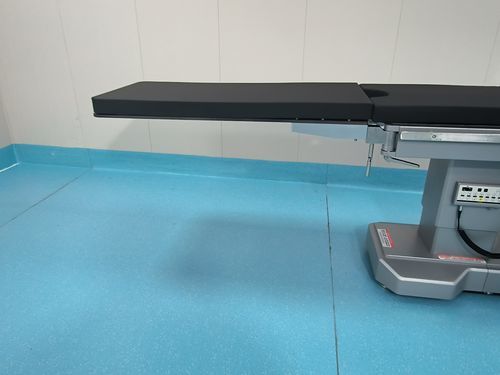

Carbon fiber extension plate
Product description:
- Main purpose: It is used for docking the backplane of the operating table or the seat plate to extend the fluoroscopy area and meet the needs of spine and cervical vertebra surgery.
- It is composed of three parts: the main body of the carbon fiber extension plate, the sponge pad, and the lifting support component.
- The main connector is made of aviation aluminum with an anodized surface, and the support plate is made of carbon fiber with spare support legs.
- The connection with the operating bed is customized according to the operating bed.
- Carbon fiber plate size: 1150*520*12mm
Additional product details:
- Used as auxiliary support before and after lithotomy position.
- 304 stainless steel frame, high strength PU leather.
- Leg frame size: 1100*500mm
- Net weight: 3750g±200g
- Light leg frame
- Support plate size: 800*500mm (Butterfly type)
Product description (upper limb surgery):
- Used for upper limb surgery, hand surgery, hand microscopy, upper limb microscopy, and other operations.
- The stent is made of 304 stainless steel, which is durable and provides stable support for the operation.
- The upper layer is waterproof and anti-static PU leather with high rebound sponge cushion.
- The bottom is a phenolic resin plate (replaceable carbon fiber base plate) to provide fluoroscopic support for the patient's surgical site.
- Height adjustment range: 550-950mm
Technical Specifications / Features:
- Main body: Carbon fiber extension plate
- Connector: Aviation aluminum, anodized
- Support plate: Carbon fiber, with spare support legs
- Custom connection to operating bed
- Plate size: 1150*520*12mm
- Auxiliary support: 304 stainless steel frame, high strength PU leather
- Leg frame size: 1100*500mm
- Net weight: 3750g±200g
- Support plate (Butterfly type): 800*500mm
- Upper layer: Waterproof, anti-static PU leather, high rebound sponge
- Bottom: Phenolic resin plate (replaceable carbon fiber base)
- Height adjustment: 550-950mm
