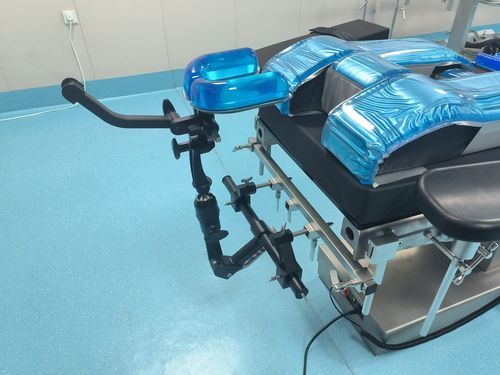

Operating table cervical rest

Main purpose: - It fixed the head in the best position, and the fixation was firm. Product description: - All parts of the head frame are made of aluminum-magnesium alloy plates, which are pure mechanical processing. The surface is treated with matte hard oxidation, which reduces light reflection, is more wear-resistant and easy to clean and disinfect. The high-precision machining of the machining center makes the parts have a high matching and fitting degree, and provides a firm support for the operation as a whole. - Head clamp: three-point fixation, standard with two types of 316 stainless steel skull head nails for adults and children, equipped with a calibrated head nail into the hand wheel, fast locking device, saving operation time and simplifying operation; - Universal ball: can be 360° plane rotation, 90° longitudinal rotation, can do lateral position surgery. It is made of 304 stainless steel, no obstruction locking handle, can be firmly locked at any angle; - Base: Insert rod has a variety of sizes to choose, but also can be customized with non-standard operating table. Specifications: - Head frame shaft length: 500mm - Adjustable width of inserting rod: 75-550mm - Forward and backward movement distance: 400mm - Left and right movement distance: 450mm - Lifting distance: 800mm Component: - One set of three-needle skull frame - One set of universal fixation device - One set of lifting adjustment main frame - One set of skull head nail (adult)/3 - One set of skull head nail (child)/3 - One set of polymer gel head support Technical characteristics / specifications: - Material: Aluminum-magnesium alloy, 316 and 304 stainless steel, polymer gel - Surface: Matte hard oxidation for reduced reflection and increased durability - Fixation: Three-point fixation, fast locking device - Rotation: 360° plane, 90° longitudinal - Customizable base for non-standard operating tables
