Surgical shoulder support

shoulder surgeryadjustable

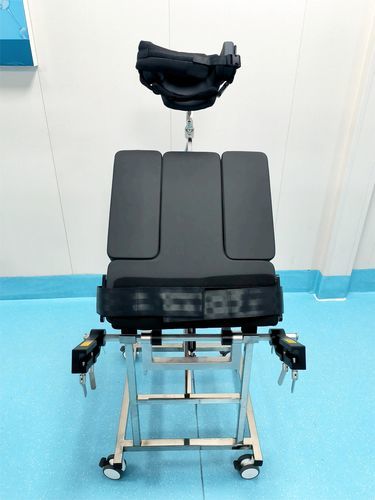

Main purpose: - It is used for the support of patients in shoulder surgery, so that the shoulder is exposed to facilitate the operation. Product description: - The main frame adopts 304 welding and surface electrolysis process, and the key parts are CNC processed from 6061Al-Mg alloy material. - Side rail plug-in connection, can match any brand of operating table. - The left and right shoulder plates are designed separately, which can be disassembled and positioned independently. - The back activity is supported by imported gas spring, and the angle adjustment is convenient and flexible. - The head support can be adjusted in all directions. - Equipped with a pick-up car to facilitate placement when not in use. Accessories: - Shoulder surgical fixation frame: 1 pc - Left and right back support plates: 2 pcs - Head support: 1 pc - Abdominal corset: 1 pc - High-density sponge pad: 1 pc - Carrying car: 1 pc Specifications: - Adjustment range of side rail connector: 335-615 mm - Backplane width (including side rails): 560 mm - Backplane height: 550 mm - Backplane thickness: 60 mm (customizable) - Backplane adjustable angle: -5° to +80° - Up and down adjustment distance of head support: 320 mm - Front and back adjustment distance of head support: 110 mm - Left and right adjustment distance of head support: 90 mm Technical characteristics / specifications: - Main frame: 304 welding, surface electrolysis - Key parts: CNC processed from 6061Al-Mg alloy - Side rail plug-in connection: compatible with any operating table - Separate left/right shoulder plates: independent disassembly and positioning - Back activity: imported gas spring, flexible angle adjustment - Head support: multi-directional adjustment - Pick-up car: included for storage
