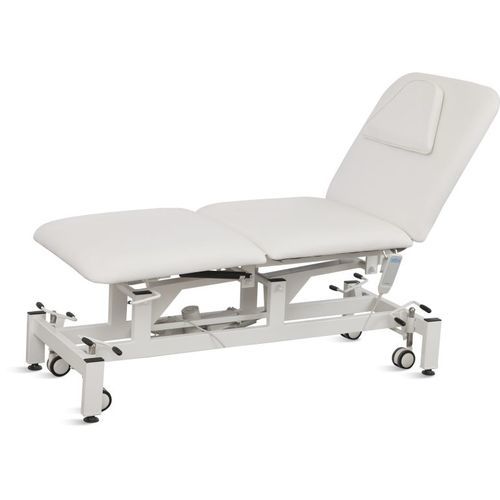

Electric examination table X36

height-adjustablewith adjustable backrestergonomic

Overview
The X36 electric examination table is a three-section medical examination and treatment table with motorized height adjustment, adjustable backrest and legrest, and bed-to-chair conversion. Designed for hospitals, outpatient clinics, physiotherapy and rehabilitation departments, it provides stable support and flexible positioning for diagnostic and therapeutic procedures.

Key Features

• Bed frame: 1.5 mm powder-coated steel with robotic Panasonic welding for seamless joints; corrosion-resistant, durable surface and stable structure for safe clinical use.
• Mattress: Composite leather cover with handmade cotton padding; ergonomic shape, elastic and breathable, antibacterial and easy to clean.
• Pneumatic pole support: Two gas springs on back and leg sections for quiet, secure positioning to avoid interference during examinations.
• Control system: CE-certified linear actuator motor; one-button lift and low-noise operation; supports full electric lifting (optional manual foot control) plus manual backrest and legrest adjustment.
• Hand controller: Single-button handheld controller with rear storage hook for convenient operation and storage.
• Bed foot equipment: Four 3" double wheels with 2-function side brake and 4 pedals; 360° PU casters for stable mobility and fixation.
• Assorted pillow: Narrow-top/wide-bottom ergonomic pillow, removable as required.
• Rounded covered edge: 360° soft-touch edge cover on platform for enhanced patient safety.
• Design: Two-fold three-section ergonomic layout with adjustable height to accommodate different patient sizes; dual bed-and-chair functionality with high load capacity and long-term stability.

Applications

• Hospital examination rooms — routine physical exams and diagnostic procedures.
• Specialist outpatient clinics — consultations, examinations and follow-ups.
• Physiotherapy departments — manual therapy, mobility assessment and treatment at adjustable working heights.
• Rehabilitation centres — functional assessment and rehabilitation training with three-section positioning.
• Orthopedic clinics — reliable support for musculoskeletal examinations and procedures.
• Large procurement projects — standardized configuration for multi-department deployment and simplified maintenance.

Technical parameters (table)
External Size (LxWxH) : 1890x680x470-910 mm
Head up/down : 85°/40°
Leg up/down : 48°/45°
Bearing Capacity : ≥150kg
Headrest Hole : 150 mm
Input Voltage : 110-230v
Output Power : 24W

Technical configuration (table)
Motor : 1pc
Pillow : 1pc
Gas Spring : 2pcs
Brake Pedal : 4pcs
3" Double Wheel : 4pcs
Manual Operator : 1pc

Specifications

• Model: X36
• Overall dimensions (LxWxH): 1890 x 680 x 470–910 mm
• Backrest angle (up/down): 85° / 40°
• Legrest angle (up/down): 48° / 45°
• Load capacity: ≥150 kg
• Headrest hole diameter: 150 mm
• Input voltage: 110–230 V
• Motor output power: 24 W (CE-certified linear actuator)
• Standard configuration: 1 motor, 1 pillow, 2 gas springs, 4 brake pedals, 4 x 3" double wheels, 1 manual operator
