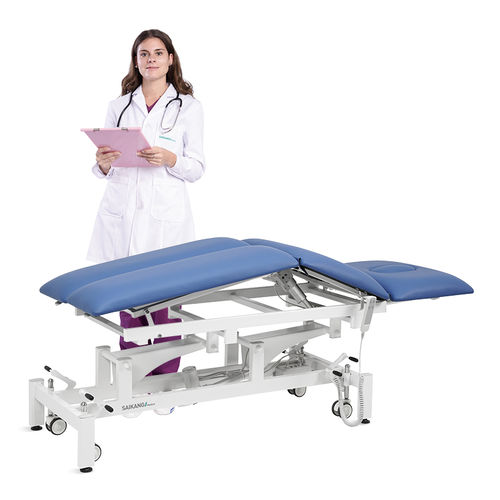

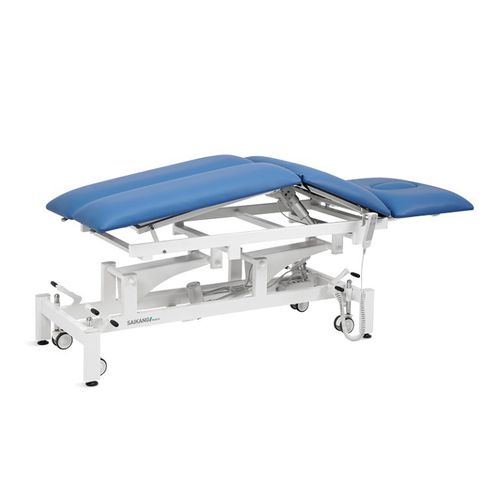

Rehabilitation examination table X42

adultelectricheight-adjustable

Overview
Discover the X42 multi-function electric examination table with electric height adjustment, adjustable headrest, seat and leg sections. Designed for hospitals, outpatient clinics, rehabilitation departments and physiotherapy centers.

Highlights

• Design
  • Ergonomic multi-position examination bed for comfortable patient positioning and flexible operation.
• Material
  • High-quality steel bed frame, 1.5-2.0mm thick, sturdy and stable with hooks for remote control and cables.
• Paintwork & Welding
  • Eco-friendly, antibacterial, anti-static powder coating resistant to acid, alkali, corrosion and fading.
  • Manual welding with smooth and clean seams.
• Motor
  • Low-noise domestic brand linear actuator motors, dual-motor control, 4-button handset for bed height adjustment.
• Hand Controller
  • 4-button handset controls lifting and angle adjustment.
• Breather hole
  • Removable for prone-position patient comfort.
• Headrest
  • Adjustable headrest angle (-38° to +75°) with 2 gas springs for flexible positioning.
• Seatrest
  • Seat board electrically adjustable, adjustment range 0°–25°.
• Legrest
  • Adjustable legrest angle 0°–75° with dual gas springs.
• Lowest position
  • 520 mm minimum height to facilitate patient seating and transfers.

Primary clinical applications

• Hospital Diagnostic Departments — multi-section adjustment supports varied diagnostic workflows requiring changes between seated, inclined and horizontal positions.
• Specialist Outpatient Clinics — low entry height and adjustable sections streamline patient transfers and high-frequency outpatient workflows.
• Rehabilitation Medicine Departments — electric height and seat adjustment support ergonomic working positions for therapists during repeated sessions.
• Physiotherapy & Manual Therapy Centers — adjustable head, seat and leg sections support a broad range of examination and therapeutic positions.
• Orthopedic Assessment Units — stable multi-position support for musculoskeletal assessment, postoperative review and mobility evaluation.
• Accessible & Geriatric Care Facilities — 520 mm minimum height supports easier seating and transfer for patients with limited mobility.

Technical parameters
External size (L x W): 1910 x 650 mm (±10 mm)
Height adjustment: 520 - 960 mm (±10 mm)
Headrest size: 460 x 650 mm (±10 mm)
Seat size: 510 x 650 mm (±10 mm)
Legrest size: 940 x 650 mm (±10 mm)
Headrest adjustment: -38° ~ +75°
Seatrest adjustment: 0° ~ +25°
Legrest adjustment: 0° ~ +75°
Voltage: AC 220V, 50Hz
Power: 500 VA
Load capacity: 180 kg
Net weight: 75 kg

Technical configuration
Motor: 2 pcs
Gas spring: 2 pcs
3" castor: 4 pcs
Brake pedal: 4 pcs
Hand controller: 1 pc
Manual operator: 1 pc

Features / Technical specifications

• Multi-section electric adjustments: height, headrest, seatboard, legrest.
• Dual-motor linear actuators with low noise.
• Steel frame (1.5–2.0 mm) with antibacterial, anti-static powder coating.
• Removable breather hole for prone position comfort.
• Minimum access height 520 mm to improve patient transfer ergonomics.
• Rated load capacity: 180 kg; net weight ≈ 75 kg.
• Standard power: AC 220V / 50Hz, power consumption ~500 VA.
