Rehabilitation examination table X35

electricheight-adjustablewith adjustable backrest

Overview

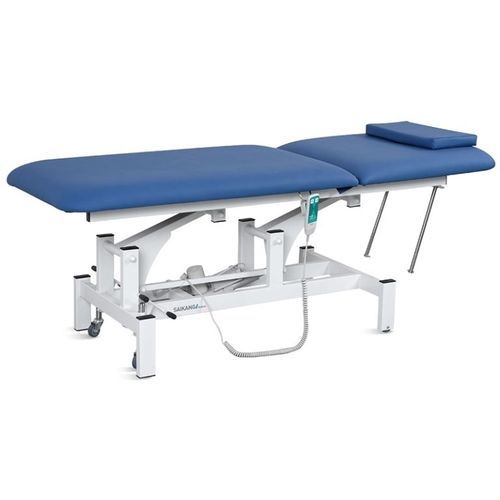

Discover the X35 electric examination table featuring electric height adjustment, an adjustable backrest, powder-coated 1.5mm steel frame, 3-section ergonomic mattress surface and pedal-operated caster braking. Designed for hospitals, outpatient clinics, rehabilitation centers and community healthcare facilities to support routine clinical examination, consultation and basic treatment workflows.

Highlights

• Framework: Bed frame surface painted with 1.5mm powder-coated steel, robot-welded seamless molding, strong corrosion resistance and bright finish; robust structure for stable and safe patient support.
• Mattress: Integrated high-end composite leather with hand-made cotton mattress; ergonomic curve, elastic and soft, breathable, antibacterial, impact-resistant and easy to clean.
• Control system: Electric height adjustment via CE-certified linear actuator motor (low noise, long service life). Standard hook-type hand controller; optional foot-pedal controller. Manual screw or air levers for back-rest and leg-rest adjustments.
• Braking system: Pedal-controlled casters (2 brake pedals with locked and universal functions). Four 2" polyurethane (PU) 360° swivel casters, durable and non-slip for stable movement and fixation.
• Hand controller: Hook-type hand controller, easy to press and store on rear hook when not in use.
• Matching pillow: Narrow-top/wide-bottom removable design, aesthetic and practical.
• Round covered edge: 360° covered platform edge with soft-touch surface to enhance user safety.
• Design: Two-fold, three-section surface allowing elevation adjustments; convertible between bed and chair, high load-bearing, durable and stable.

Hospital Procurement Applications
The X35 electric examination table is intended for routine clinical examinations, consultations and basic treatments in hospital examination rooms, outpatient departments, primary care/community healthcare centers and general practice clinics. Key procurement values include electric height adjustment for ergonomic clinician posture, compact tabletop for efficient workflows and a 180 kg safe working load for routine clinical use.

Parameters & Configuration (Technical parameters)
External Size: L1845*W680mm+10mm
Height adjustment: 550-860mm ±10mm
Back-rest adjustment (°): 0~+45
Net weight (kg): 60
Safe working load (kg): 180
Rated voltage and frequency: AC220V, 50Hz
Input power: 500VA

Technical configuration
Brake Pedal: 2 pcs
Motor: 1 pc
Hand Controller: 1 pc
2" Casters: 4 pcs
Face pillow: 1 pc
Tissue holder: 1 pc

Specifications

• Model: X35
• Bed frame: 1.5mm powder-coated steel, robotic seamless welding
• Height adjustment range: 550–860 mm (±10 mm)
• Back-rest adjustment: 0° to +45° (manual screw adjustment)
• Net weight: 60 kg
• Safe working load: 180 kg
• Rated voltage/frequency: AC 220V, 50 Hz
• Input power: 500 VA
• Actuator motor: single CE-certified linear actuator (electric lift)
• Control options: hook-type hand controller (standard); optional foot-pedal controller
• Casters: four 2" PU 360° swivel casters with pedal-controlled braking (locked & universal)
• Upholstery: high-end composite leather, breathable and antibacterial
• Included accessories: face pillow, tissue holder
