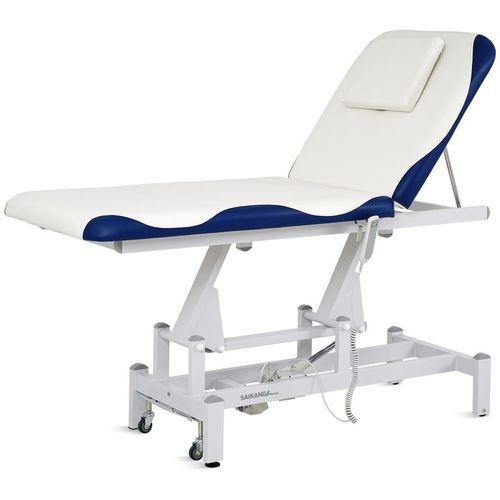

Physiotherapy examination table X26

electricheight-adjustablewith adjustable backrest

Product overview The X26 electric examination table is designed for hospitals, outpatient clinics, rehabilitation centers and physiotherapy departments requiring reliable electric positioning for daily examination and treatment procedures. Its clinical design supports patient assessment, therapeutic care and rehabilitation workflows and offers electric height adjustment, flexible patient positioning and a durable clinical finish for examination and treatment procedures.

Highlights

• Upholstery — Flame-retardant, resistant to yellowing and mildew, bending-resistant, wear resistance up to 100,000 cycles.
• Foam — Flame-retardant high-density foam, 10 cm thickness (option: 8 cm, 30 kg/m³).
• Paint finish — 11-step epoxy process; paint thickness 0.12 mm; ASTM-tested antimicrobial properties; impact resistance up to 50 kg.
• Frame — Baosteel construction with Panasonic robotic 360° welding.
• Electric system — Taiwan motor standard; operational noise under 50 dB; lifetime tested ~20,000 movements; CE-certified motor option with 6000 N thrust.
• Castors — 2 standard 2" swivel castors plus 2 hidden 2" castors option.

Main functions Electric height adjustment; adjustable back-rest (0–50°) with mechanical ratchet or motorized option; hand controller for positioning; castors with foot pedal; integrated paper roll holder for examination use.

Hospital procurement applications

• General hospitals — for routine assessment, clinical examination, minor procedures and therapeutic care.
• Rehabilitation departments — supports functional assessment and repeated positioning during therapy sessions.
• Physiotherapy clinics — suitable for manual therapy, functional training and mobility improvement.
• Orthopedic units — for musculoskeletal assessment and postoperative recovery.
• Outpatient clinics — combines examination and treatment functions for high-frequency workflows.
• Primary care & community centers — standardized electric table for primary care projects.

Technical parameters External (L×W×H): 1810×680×(480–850) mm
Back-rest adjustment: 0–50°
Load capacity: 150 kg

Technical configuration

• Pillow: 1 pc
• Motor: 1 pc
• Mechanical lever for back-rest: 1 pc (if selected)
• 2" castors: 2 pcs (standard) + 2 hidden castors (optional)
• Hand controller: 1 pc
• Paper roll holder: 1 pc

Technical specifications

• Dimensions (L×W×H): 1810 × 680 × (480–850) mm
• Back-rest adjustment range: 0–50° (mechanical lever or motorized)
• Maximum load capacity: 150 kg
• Upholstery: flame-retardant, mildew resistant, wear resistance up to 100,000 cycles
• Foam: high-density, 10 cm thickness (option: 8 cm, 30 kg/m³)
• Surface finish: 11-step epoxy process; paint thickness 0.12 mm; ASTM-tested antimicrobial
• Frame material: Baosteel; Panasonic robotic welding for consistent 360° welds
• Electric system: Taiwan motor; noise under 50 dB; rated for ~20,000 movements; CE-certified motor option (6000 N)
• Back adjust: selectable ratchet or motorized mechanism
• Castors: 2× 2" swivel castors with foot pedal; option for 2 hidden castors
• Accessories included: pillow (1), hand controller (1), paper roll holder (1)
• Control durability: hand controller qualified after 2,000 cycles (manufacturer test)
• Feet/foot pads: engineering ABS material
