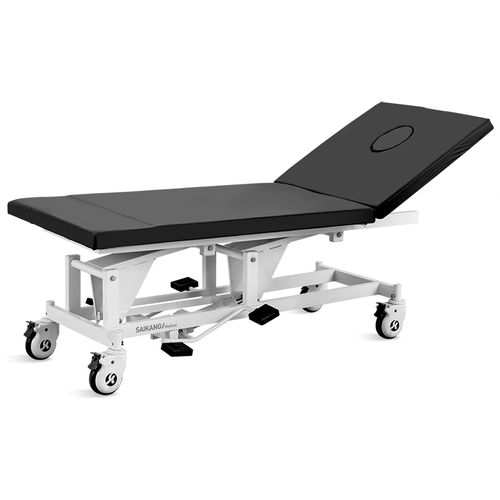

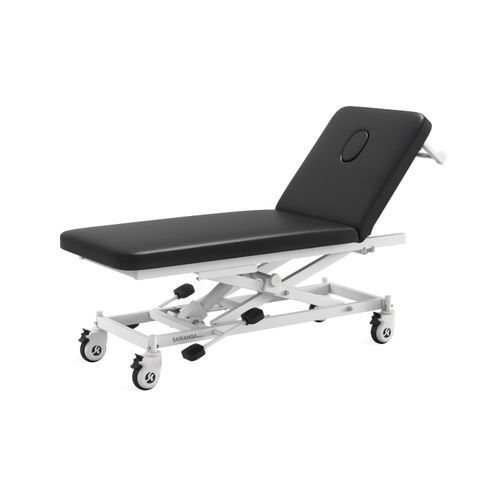

Physiotherapy examination table X14

hydraulicheight-adjustableergonomic

Product overview
The X14 hydraulic examination table is designed for hospitals, diagnostic departments, treatment rooms and rehabilitation facilities requiring stable, power-independent height adjustment. Key functions include hydraulic height adjustment with dual pedals, adjustable backrest, heavy-duty powder-coated steel frame, 250 kg load capacity, covered mobile castors with brakes and optional accessories for clinical workflows.

Highlights

• Upholstery: flame-retardant, yellowing-resistant, mildew-resistant, flexible and abrasion-resistant up to 100,000 cycles.
• Foam: flame-retardant, 6 cm thickness, high-density foam, density 30 kg/m³.
• Surface finish: 11-stage epoxy coating, ASTM-tested antibacterial paint, paint thickness 0.12 mm, gloss 60°, impact resistance up to 50 kg.
• Metal: Baosteel raw material; Panasonic robotic welding for 360° seamless welding.
• Hydraulic system: durable hydraulic pump and components designed for long service life; tested for 2,000 cycles without wear.
• Frame: 2.0 mm powder-coated steel frame with 250 kg rated load capacity.
• Castors: 4 × 5" covered castors with brakes for mobility and secure positioning.

Technical parameters
External size: 1940 × 700 mm
Height adjustment: 490–890 mm
Back plate up: 0°–60°

Technical configuration
Hydraulic pump: 1 pc
Adjustable air spring: 2 pcs
5" covered castors: 4 pcs
Hydraulic pedals: 2 sets
Toilet paper holder: 1 pc

Applications

• Hospital examination rooms: routine physical exams, patient assessment and diagnostic procedures requiring stable patient support and adjustable working height.
• High-load care areas: supports diverse patient groups with a 250 kg load capacity and a heavy-duty frame.
• Outpatient treatment departments: dual hydraulic pedals and mobile castors support efficient workflows and frequent patient turnover.
• Rehabilitation medicine: suitable for functional assessment, mobility evaluation and basic rehabilitation requiring stable adjustable positioning.
• Multi-site clinical projects & power-independent installations: hydraulic system avoids dependence on electric lifting, simplifying maintenance and international deployment.

Features / Technical specifications

• Model: X14
• External size: 1940 × 700 mm
• Height adjustment range: 490 – 890 mm
• Backrest angle (up): 0° – 60°
• Rated load capacity: 250 kg
• Frame: 2.0 mm powder-coated steel
• Upholstery: flame-retardant leather option
• Foam: high-density foam, 6 cm, 30 kg/m³
• Surface finish: 11-stage epoxy coating, 0.12 mm paint thickness
• Hydraulic pump: 1 pc (manual hydraulic system)
• Adjustable air springs: 2 pcs
• Castors: 4 × 5" covered castors with brakes
• Hydraulic pedals: 2 sets
• Accessories: toilet paper holder (1 pc); additional accessories configurable on request
