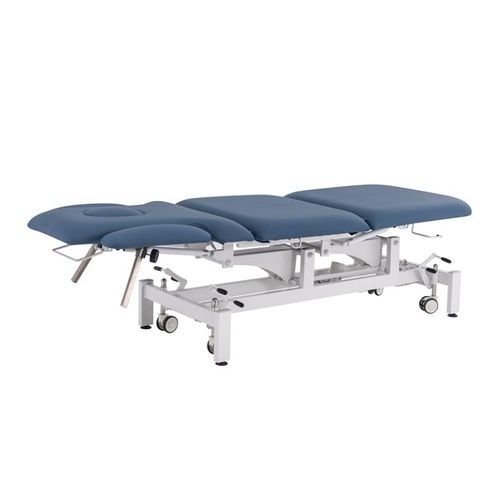

Orthopedic examination table X36-1

minor surgeryphysiotherapyrehabilitation

Overview
The X36-1 electric examination table is a three-section treatment table with motorized height adjustment and manual/air-assisted section positioning. It includes adjustable head and leg sections, dual bed-to-chair configuration, pedal-controlled mobile castors, integrated ergonomic upholstery and a reinforced load-bearing structure suitable for hospitals, physiotherapy, rehabilitation and outpatient clinics.

Key Features

• Framework: Powder-coated 1.5 mm steel frame with seamless welded molding for corrosion resistance and structural stability.
• Mattress / Upholstery: Integrated composite leather with handmade cotton mattress; ergonomic curvature; breathable, antibacterial and easy to clean.
• Control System: Manual air levers with two gas springs for quiet back and leg angle adjustment; optional motorized height adjustment for electric lifting.
• Braking & Mobility: Four 3" PU castors with pedal-controlled two-function brakes (locked and universal); 360° durable, non-slip wheels.
• Hand Controller: Hook-type hand control for height adjustment with rear hook for storage.
• Optional Foot-pedal Controller: Hands-free operation for full-bed height control.
• Accessories & Design: Removable pillow with narrow-top/wide-bottom design; rounded covered edges with soft-touch surface; three-section ergonomic surface enabling elevation and chair positions.

Parameters & Configuration (technical table)
External Size (LxWxH) : 1830 x 680 x 470-910mm ±10 mm
Head up/down : 85°/40°
Leg up/down : 48°/45°
Bearing Capacity : ≥150kg
Headrest Hole : 150mm
Input Voltage : 110-230V
Output Power : 24W

Standard Technical Configuration

• Adjustable arm support : 1 pc
• Motor : 1 pc
• Gas spring : 2 pcs
• 3" Castor : 4 pcs
• Brake Pedal : 4 pcs
• Hand Controller : 1 pc
• Manual Operator : 1 pc

Applications

• Hospital examination and treatment rooms — routine exams, minor procedures and patient assessment with adjustable height and positioning.
• Physiotherapy and manual therapy centers — ergonomic height adjustment and flexible head/leg positioning for repeated treatment sessions.
• Rehabilitation departments — supports horizontal, inclined and chair-style positions for functional assessment and mobility recovery.
• Specialist outpatient clinics — mobile castors and adjustable sections for efficient room reconfiguration and high-frequency workflows.
• Orthopedic assessment and recovery units — accommodates various musculoskeletal positions and postoperative reviews.
• Multi-room hospital or clinic standardization projects — consistent electric lifting, manual section adjustment and clinical mobility across locations.

Technical specifications

• Three-section treatment surface with two folds and bed/chair dual-use capability.
• Motorized height adjustment plus manual/air-assisted section adjustments.
• Powder-coated steel frame with seamless robotic welding for corrosion resistance.
• Integrated composite leather upholstery with ergonomic, breathable, antibacterial mattress.
• Safe working load ≥150 kg.
• Headrest hole 150 mm for accessory compatibility.
• Input voltage range 110–230 V; output power 24 W.
• Mobility: four 3" PU castors with pedal-controlled 2-function brakes.
• Standard equipment: 1 motor, 2 gas springs, 1 hand controller, 1 manual operator, 1 adjustable arm support.
