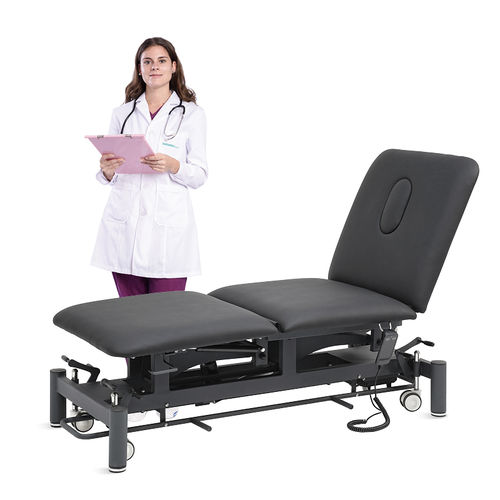

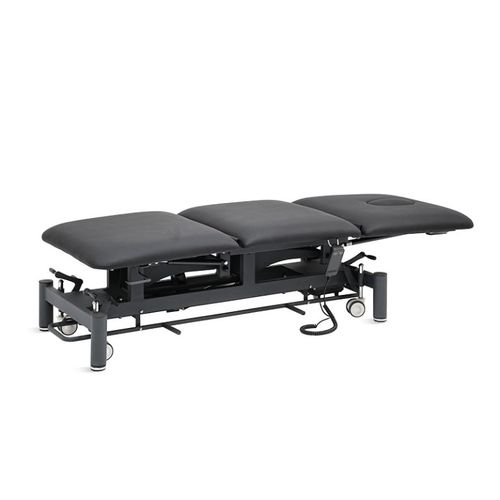

Rehabilitation examination table X41

adultelectricheight-adjustable

Product summary
The X41 three-section electric examination table offers independent back, seat and leg positioning with electric height adjustment. Designed for examination, treatment and rehabilitation in prone, supine, inclined and semi-seated positions, it features a removable breather (face) hole and an ergonomically framed clinical surface to facilitate patient access and clinician workflow.

Highlights

• Configuration: Three-section (back, seat, leg) electric table enabling flexible patient positioning.
• Structure: Steel frame (1.5–2.0 mm) with hooks for controller and cable management; sturdy and stable construction.
• Surface treatment: Antibacterial, anti-static powder coating resistant to acids, alkalis, corrosion and fading; smooth manual welds.
• Actuation: CE-certified lifting motor with telescopic steel push rod; height range 480–910 mm.
• Controls: Hand controller for lift and angle adjustments.
• Backrest: Adjustable from −35° to +75° with two gas springs for controlled movement.
• Legrest: Adjustable from −27° to +50° with dual gas springs.
• Breather hole: Removable face hole for prone-position comfort and airway access.
• Access: Minimum table height 480 mm to facilitate patient transfer.
• Comfort: Antibacterial upholstery with 7 cm high-density slow-rebound foam.

Typical hospital procurement applications

• Physiotherapy and manual therapy centres — supports posture assessment, manual techniques and soft-tissue treatment with adjustable sections and table-height positioning.
• Rehabilitation departments — electric lifting and multi-section adjustment provide ergonomic working heights for repeated therapy sessions.
• Prone examination and treatment rooms — removable breather hole improves facial comfort and airway access during prone procedures.
• Specialist outpatient clinics — frequent position changes and electric lifting streamline patient handling and workflow.
• Orthopedic assessment units — independent backrest and legrest adjustment for musculoskeletal evaluation and recovery protocols.
• Hospital standardization projects — consistent motor, hand control and three-section configuration for simplified deployment and maintenance.

Technical parameters (table)
External size (L x W): 1860 x 680 mm (±10 mm)
Height adjustment: 480–910 mm (±10 mm)
Backrest size: 630 x 680 mm (±10 mm)
Seat size: 580 x 680 mm (±10 mm)
Legrest size: 620 x 680 mm (±10 mm)
Backrest adjustment: −35° to +75°
Legrest adjustment: −27° to +50°
Voltage: AC 220 V, 50 Hz
Power: 500 VA
Load capacity: 180 kg
Net weight: 70 kg

Technical configuration (table)
Motor: 1 pc
Gas spring: 2 pcs
Castors: 4 pcs (3" with brake pedals)
Brake pedals: 4 pcs
Hand controller: 1 pc
Manual operator: 1 pc

Specifications / technical characteristics

• Model: X41 (three-section electric examination table)
• Frame: Steel 1.5–2.0 mm
• Overall dimensions: 1860 x 680 mm (±10 mm)
• Height range: 480–910 mm (±10 mm)
• Backrest: 630 x 680 mm; adjustment −35° to +75° (2 gas springs)
• Seat: 580 x 680 mm
• Legrest: 620 x 680 mm; adjustment −27° to +50° (2 gas springs)
• Lift motor: 1 pc (CE certified), telescopic steel push rod
• Electrical: AC 220 V, 50 Hz; 500 VA
• Load capacity: 180 kg
• Net weight: 70 kg
• Castors: 3" castors, 4 pcs with brakes
• Upholstery: Antibacterial cover with 7 cm high-density slow-rebound foam
• Accessories: Removable breather hole; hand controller for lift and angle adjustments
