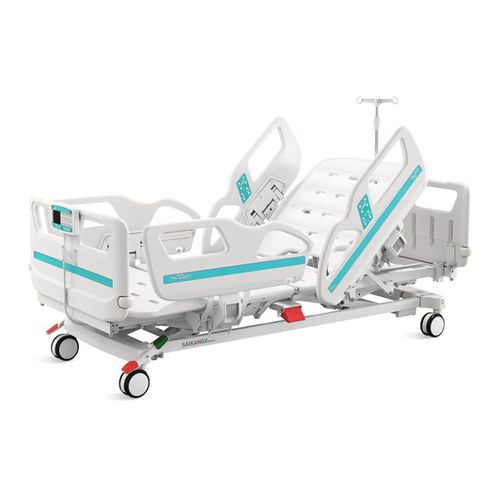

Hospital bed V8v

electricbariatricgeriatric

Product Overview

• Sterile-oriented design compliant with hospital infection-control requirements.
• Solid bed base constructed from 5.0 mm stamped rotating plate.
• One-button emergency stop to prevent unintended operation.
• Electric positioning with integrated nurse control and optional patient control interfaces.
• Integrated patient weighing and bed-exit monitoring functions.
• Rapid CPR adjustment (electric and manual) and removable head/foot boards for emergency access.

Innovation Patents
DUAL RETRACTION PATENTED DESIGN INNOVATIVE 67+47 mm

• Patented dual retraction for backrest and thighrest: 67 mm and 47 mm retraction respectively to extend the mattress surface in the pelvic area.
• Retracting backrest and thighrest extends and redistributes pressure, reducing pressure concentration and shear forces to help prevent pressure ulcers.

Advantages For Smarter Work

• Precise electric adjustment of backrest and knee-rest.
• Single-button cardiac-chair position to support respiratory function and cardiac output.
• One-button nursing position with bed platform at 780 mm for ergonomic caregiver access.
• CPR button instantly flattens the bed to horizontal for resuscitation.
• Compact structure with maneuverable castors; optional fifth castor for tight turns.
• Multiple control concepts: integrated head-rail controls, patient control-panel light version, and ergonomic handset options.

Advantages For Patient Comfort

• Dual auto-regression platform reduces pelvic pressure to improve comfort and reduce pressure ulcer risk.
• Weighing system with four-corner sensors provides accurate weight readings independent of mattress position; readings can be logged manually or automatically.
• Integrated retractable side rails with buffer and built-in handle to assist patient mobilization.
• Comfort positions include chair position to aid respiration and reverse Trendelenburg capability.

Technical Specifications
External size (LxW) : 2085x1025mm±10mm
Mattress platform : 1925x900mm±10mm
Safe working load : 250kg
Height adjustment : 420-870mm±10mm
Back-rest adjustment : 0-75°(±10°)
Knee-rest adjustment : 0-28°(±10°)
Reverse trendelenburg : 0-17°(±2°)
Trendelenburg : 0-17°(±2°)
Angle indicator : 0-90°
Auto-regression : 67+47mm
Position line : 30°


Included Features and Options

• LINAK Motor: Included.
• 6" Double Side Secure® Castors, Central Locking: Included.
• PP Platform with Integrated Mattress Retainer: Included.
• PP Side Rail with Integrated Control Panel: Included.
• PP Bed Ends plug-in type, with safe lock: Included.
• Patent Angle Indicator for backrest and Trendelenburg: Included.
• IV Pole (4 hooks): Included.
• IV Pole provision: Included.
• Drainage hook: Included.
• Central locking pedal: Included.
• Hand controller: Included.
• Nurse controller: Included.
• Back-up battery: Included.
• Cardiac chair position: Included.
• Electric CPR: Included.
• Manual CPR: Included.
• Auto break at 30°: Included.
• Emergency stop button: Included.
• Night light: Included.
• Cassette holder (backrest): Included.
• Bed extension: Included.
• Trapeze socket: Included.
• Weighing system: Included.
• Monkey pole: Optional.
• Oxygen cylinder holder: Optional.
• Basket: Optional.
• Mechanical lever: Optional.

Technical specifications

• Model name: V8v ELECTRIC ICU BED ALL IN.
• External dimensions: 2085 x 1025 mm ±10 mm.
• Mattress platform size: 1925 x 900 mm ±10 mm.
• Safe working load: 250 kg.
• Height range: 420–870 mm ±10 mm.
• Backrest range: 0–75° (±10°); knee-rest: 0–28° (±10°).
• Trendelenburg / Reverse Trendelenburg: 0–17° (±2°).
• Auto-regression (dual retraction): 67 + 47 mm to reduce pelvic pressure.
• Integrated weighing system with 4 sensors and configurable alarms (threshold, bed-exit).
• Emergency functions: electric/manual CPR, emergency stop, quick shock position and removable bed ends for access.
