Intensive care bed Y8y8t

electricTrendelenburgheight-adjustable

Overview

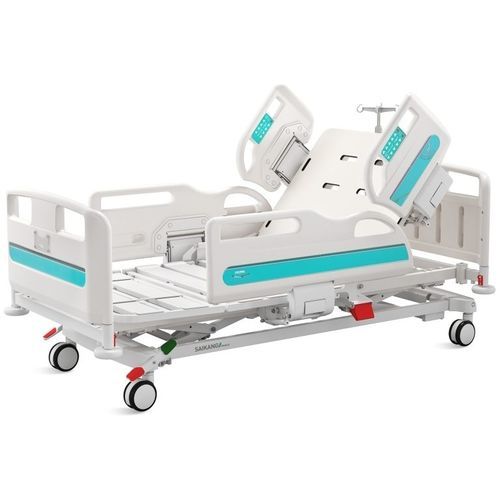

The Y8y8t Electric ICU Bed (SKD-C) is designed for intensive care units and critical care environments. It provides electrically controlled positioning, integrated weighing and safety features required for clinical workflows and resuscitation procedures.

Innovation & Patented Design
The bed features a patented dual auto‑regression mechanism: 70 mm retraction of the backrest plus 40 mm retraction of the thigh rest to extend the pelvic area and reduce shear and pressure forces on vulnerable skin surfaces. This mechanical sequence helps mitigate pressure ulcer risk during prolonged care.

Key Functional Advantages

• Simple control concepts: light siderail control version and ergonomic handset options for straightforward operation.
• Rapid emergency response: shock position via head‑end emergency lever; easily removable headboards and footboards for unobstructed access during CPR.
• Nurse support functions: one‑button nursing position (platform height 780 mm) for procedures; electric CPR flattens the back plate with a single action.
• Mobility and stability: 5" central locking castors with three‑position brake and directional function; TPR tyres; dynamic tests passed for load and obstacle performance.
• Night‑time fall prevention: low bed position and night visibility options to reduce fall risk.
• Patient weight monitoring: four‑corner sensor weighing system providing accurate readings independent of platform position; manual or automatic (every 24 h) recordings and configurable alarms (threshold, bed‑exit).

Included Features & Options

• LINAK motor (optional)
• 5" double‑side castors with three‑grade pedal
• PP Oasis extra‑height siderails with nurse control panel
• PP Oasis bed ends with safe lock
• PP removable & washable bed platform
• X‑ray transparent phenolic resin back platform
• Integrated socket in PP guardrail (phone/glasses)
• Patent angle indicator for back‑rest and Trendelenburg
• φ113 mm wall bumper wheel
• IV pole and IV pole provision
• Drainage hook
• Three‑grade central locking pedal
• ABS mattress retainer
• Manual CPR and Electric CPR
• Nurse controller and hand controller
• Weighing system
• Night light
• Bed extension 200 mm
• Trapeze socket
• Backup battery
• Fifth and sixth siderails
• Optional accessories: monkey pole, oxygen cylinder holder, basket

Applications
The Y8y8t Electric ICU Bed is intended for ICU and critical care projects including new ICU construction, ICU renovation, hospital tenders, long‑stay critical care units and multi‑bed procurements. Its positioning, weighing and safety functions support daily critical care requirements and workflow standardization.

Technical Specifications (summary)
External size (L x W): 2150 x 1060 mm
Mattress platform: 1925 x 880 mm
Safe working load: 250 kg
Height adjustment: 390–840 mm
Back‑rest adjustment: 0–75° (±10°)
Knee‑rest adjustment: 0–33° (±10°)
Reverse Trendelenburg: 0–17° (±2°)
Trendelenburg: 0–17° (±2°)
Angle indicator: 0–90°
Auto‑regression (dual retraction): 70 + 40 mm
Position line: 30°

Technical characteristics

• Model: Y8y8t
• Auto‑regression: 70+40 mm (patented dual retraction)
• External dimensions: 2150 x 1060 mm
• Mattress platform: 1925 x 880 mm
• Safe working load (SWL): 250 kg
• Height range: 390–840 mm
• Back‑rest: 0–75° (±10°)
• Knee‑rest: 0–33° (±10°)
• Trendelenburg/Reverse Trendelenburg: 0–17° (±2°)
• Angle indicator available for key positions
• Weighing system with 4 corner sensors; manual or automatic recording
• Castors: 5" central locking, three‑position brake, TPR tyre
• Bed platform: PP removable & washable; X‑ray transparent back platform
• CPR: Manual and Electric CPR functions
• Control: light siderail control and nurse control panel; handset available
• Accessories: IV pole, drainage hook, bed extension 200 mm, trapeze socket, backup battery, extra siderails; optional monkey pole, oxygen holder, basket
