Medical bed D8d

intensive carehome carenursing home

Overview

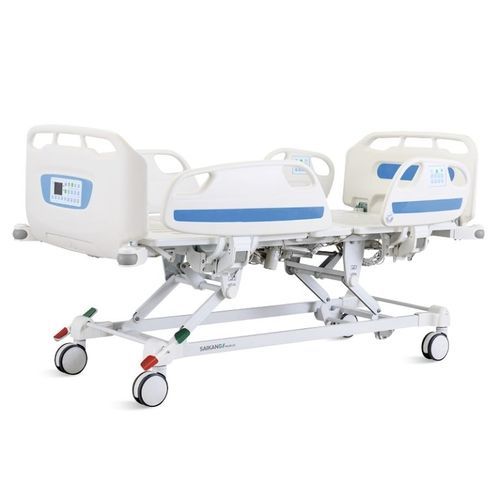

Multifunctional electric ICU bed D8d-CPR (SKD-C) designed for intensive care and emergency use. Key characteristics: virgin ABS components sterilizable at 100°C (tensile strength up to 30 MPa); Panasonic robotic 360° full welding of chassis; compliant with IEC/EN medical electrical equipment requirements (IEC 60601 referenced).

Head & Foot Board
Reversible head and foot boards with integrated controller and 3.5" LCD angle indicator. Extra-height design for improved access. Size: 1000 x 563 mm.

Bed Surface
Stamped-formed mattress platform with smooth finish and no visible weld scars. Standard safe working load (SWL): 250 kg. Options: ABS platform or resin X-ray translucent platform.

Welding & Chassis
Panasonic robotic welding provides 360° continuous smooth welds for consistent chassis integrity and service life.

Electric Motor & Brakes
Four linear actuators (electric motors) for backrest, knee-rest, overall height and Trendelenburg adjustments. Brake spring design maintains function after 10,000 continuous operations; central locking pedal included.

Steels & Painting
11-stage epoxy coating process with paint thickness ≈0.12 mm and brightness ≈60°. Surface tested for antibacterial properties and 50 kg impact resistance.

Virgin ABS Parts
Environmental-grade ABS parts are sterilizable at 100°C, odorless and non-toxic, with tensile strength up to 30 MPa.

LCD & Controls
Integrated 3.5" LCD control panels built into head/foot ends; tuck-away side rails with embedded control and angle indicators. Buttons rated for ~100,000 operations.

Side Rails
Tuck-away PP side rails with integrated control panel and angle indicator for caregiver access and patient safety.

Castors
5" double-side castors with TPR tyres designed for long wear (dynamic test: bearing 120 kg, 30 km run and 500 obstacle passes). Anti-winding hard shell, bolt-free assembly.

Durable Brakes
Brake spring qualification after 10,000 uninterrupted operations; central locking pedal for bed stability during procedures and transport.

Accessories (selected)

• Trapeze sockets (2 pcs)
• IV pole (1 set) + IV pole provisions (4 pcs)
• Drainage hooks (2 pcs)
• Central locking pedal (2 pcs)
• PP side rails with integrated control panel (1 set)
• PP bed ends with integrated LCD control panel (1 set)
• φ85 mm wall bumper wheels (4 pcs)

Technical parameters

• External size (L x W): 2280 x 1090 mm
• Mattress platform: 1925 x 900 ±10 mm
• Safe working load (SWL): 250 kg
• Height adjustment: 435–725 ±10 mm
• Back-rest adjustment: 0–75° (±10°)
• Knee-rest adjustment: 0–35° (±10°)
• Reverse Trendelenburg: 0–12° (±2°)
• Trendelenburg: 0–12° (±2°)
• Angle indicator range: 0–90°
• Power: 100–240 V, 50/60 Hz (hospital-grade plug as required)

Technical configuration

• Manual CPR: provided
• One-button stop: provided
• One-button Trendelenburg: provided
• Nurse lock system: provided
• Angle indicators for back-rest and Trendelenburg: 4 pcs
• Linear motors / actuators: 4 pcs
• 5" double-side castors with central locking: 4 pcs
• PP side rail with integrated control panel: 1 set
• PP bed ends with integrated LCD control panel: 1 set
• φ85 mm wall bumper wheel: 4 pcs
• Trapeze socket: 2 pcs
• IV pole: 1 set
• IV pole provisions: 4 pcs
• Drainage hook: 2 pcs
• Central locking pedal: 2 pcs

Standards & Quality
Designed and tested to meet IEC/EN medical electrical equipment standards (IEC 60601 referenced). Manufacturer uses robotic welding, multi-stage epoxy coating and component testing for durability, antibacterial performance and safety verification.
